Name: EW-8910 Fully Automatic Double Side Tinning with Crimping Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

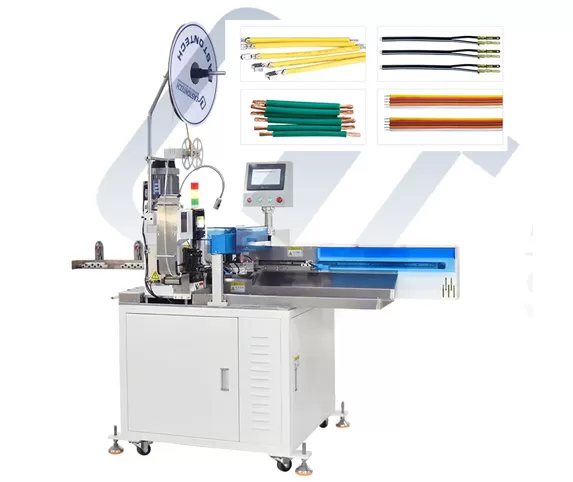

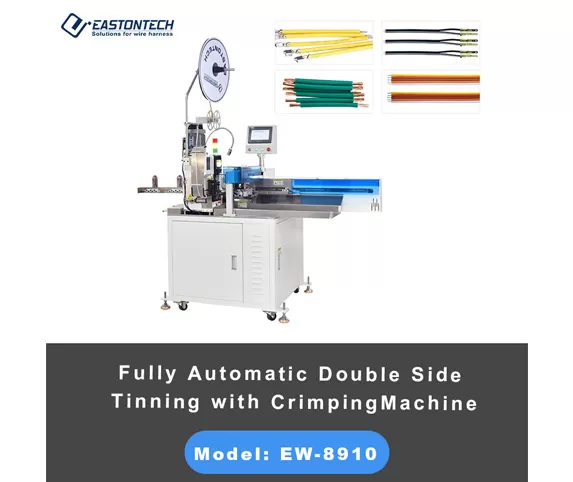

EW-8910 Fully Automatic Double Side Tinning with Crimping Machine

This multifunctional double side tinning and crimping machine combines the features of two separate systems into one compact soluticon. It supports double side wire twisting with tinning as well as one-end tinning with the other end crimping, giving manufacturers theflexibility to handle diverse production needs without switching equipmeent.

The dual-functionality design allows operators to choose between two processing modes: complete double side tinning for applicationsrequiring soldered connections on both sides, or hybrid processing with tinning on one end and terminal crimping on the other end for versatile wire harness assembly requirements.



Specifications of EW-8910 Fully Automatic Double Side Tinning with Crimping Machine

Model	EW-8910
Applicable wire range	18AWG-32AWG(Min.OD:0.6mm)
Stripping length	1-10mm
Cut precision	±(1+0.002*L) mm, L=cut length
Cutting length	30-800mm
Capacity	1000-1100pcs/hour L=300mm
Crimping force	2.0T
Tinning length	30-800mm
Air pressure	0.6-0.8Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension	110020001900mm
Weight	380Kg
Power supply	220V/110V/50HZ/60HZ
Foot pedal Start	N/A

Features of EW-8910 Fully Automatic Double Side Tinning with Crimping Machine



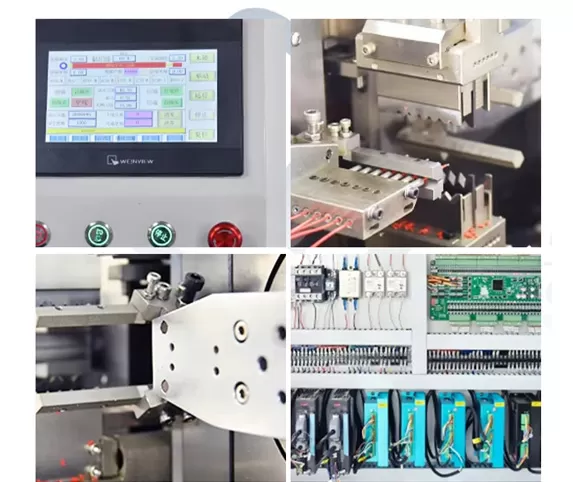

HD Touch Screen

HD touch screen, easy to debug, can store 99 data parameters, one-button call.

01


Five Pieces at a Time

Can Process 5 lines at a time, 5 times the efficiency, suitable for electronic wire, wiring, parallel processing.

02


Multiple Manipulators

Manipulator clamp wire, instead of manual processing, good wire placed neatly, greatly improve the work efficiency.

03


Intelligent Control System

The control system adopts multi-axis control card integrated system,9 high-performance motors work together, the configuration is clean.

04
