Name: EW-8920 Automatic Double End Single End Tin Dipping Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

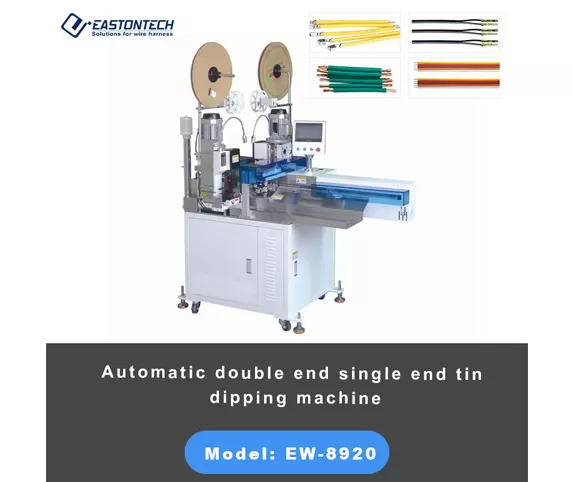

EW-8920 Automatic Double End Single End Tin Dipping Machine

This economical dual-function machine supports both double-end terminal crimping and single-end crimping with tinning on the other end, offering versatile one-machine multiple-use capabilities. By combining the performance of two separate units, it saves floor space and offers excellent cost-effectiveness while maintaining stable, reliable performance for diverse production needs.

Driven by high-precision servo technology, the machine runs with lower noise and energy usage compared to conventional crimping equipment. Its integrated structure enhances stability, ensures consistent performance, and reduces overall space requirements on the production floor.



Specifications of EW-8920 Automatic Double End Single End Tin Dipping Machine

Model	EW-8920
Wire range	18AWG ~ 32AWG(OD:0.6mm)
Cable Cutting length	30mm-800mm(Customizable)
Stripping length	Both end 0-11mm
Twisting Length	3-11mm
Tinning Length	0.5-11mm
Power supply	AC220V 50 160HZ One-way 2000W
Air Pressure	0.5-0.7Mpa
Capacity	Depending on the type of cable, range from 1.3K to 26K /Hour
Dimension	28082210 CM
Weight	220kg

Features of EW-8920 Automatic Double End Single End Tin Dipping Machine



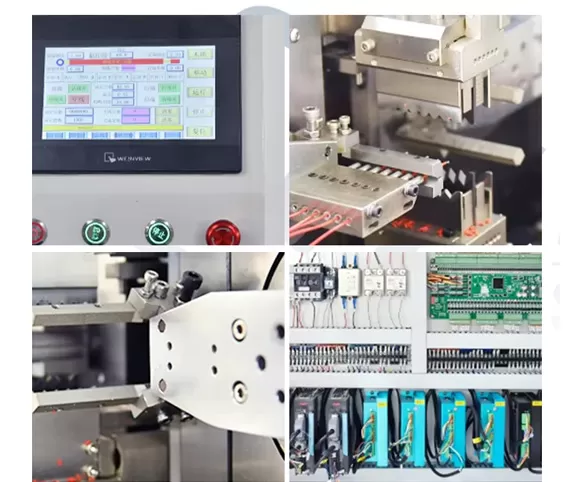

HD Touch Screen

HD touch screen, easy to debug, can store 99 data parameters, one-button call.

01


Five Pieces At A Time

Can Process 5 lines at a time, 5 times the efficiency, suitable for electronic wire, wiring, parallel processing.

02


Multiple Manipulators

Manipulator clamp wire, instead of manual processing, good wire placed neatly, greatly improve the work efficiency.

03


Intelligent Control System

The control system adopts multi-axis control card integrated system, 9 high-performance motors work together, the configuration is clean.

04
