Name: EW-8935
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-8935

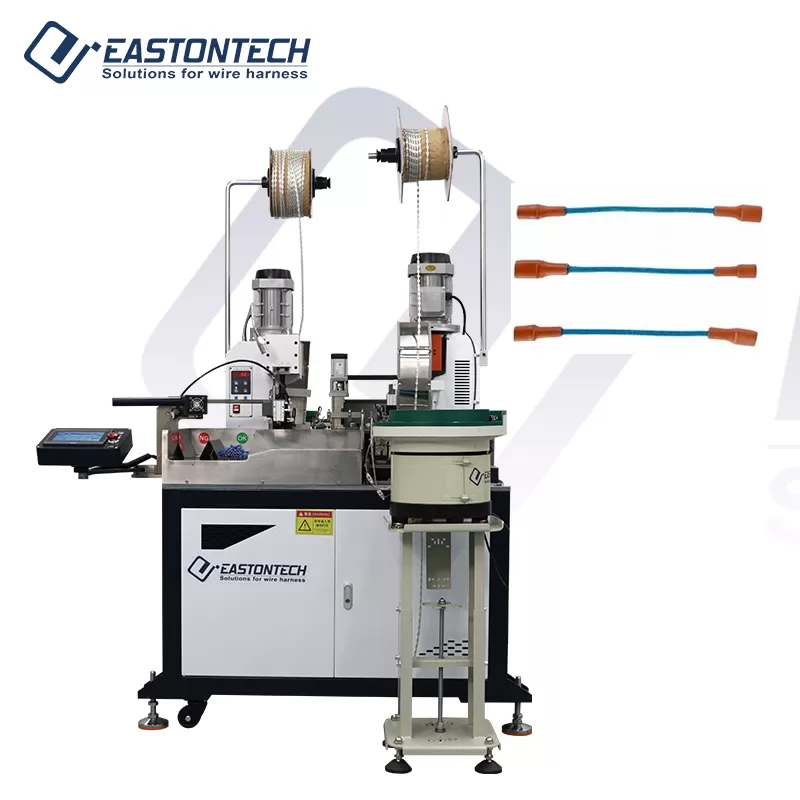

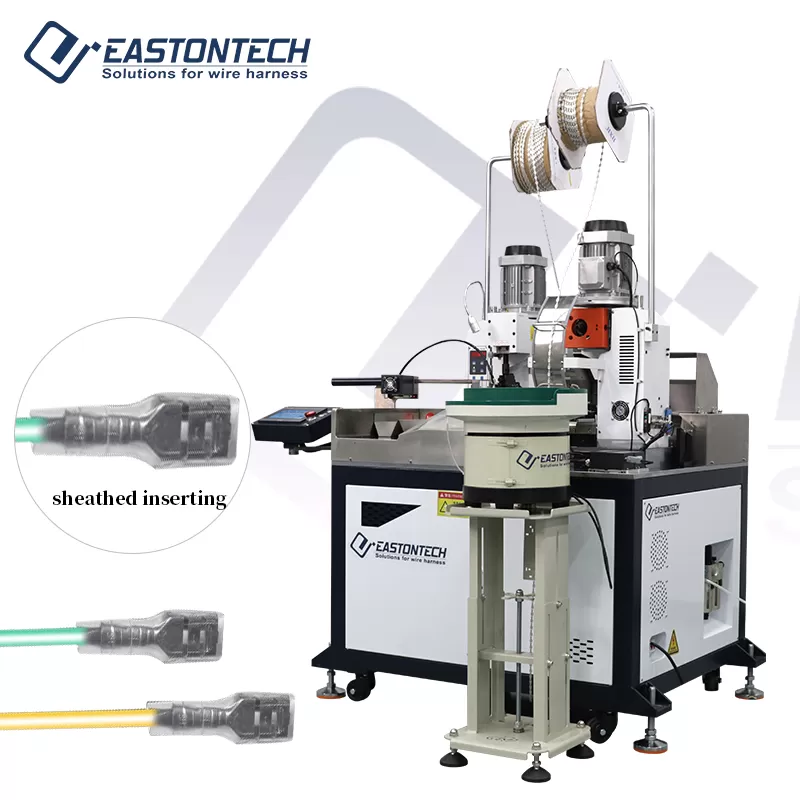

The fully automatic wire crimping and insulating sleeve insertion machine delivers comprehensive wire processing solutions by combining cutting, stripping, terminal crimping, and sleeve insertion functionalities. This advanced machine simplifies complex production tasks by ensuring high precision and minimal manual intervention.

Designed with modularity in mind, its flexible configuration allows users to toggle various functional modules. lt transforms effectively into a dual-end crimping machine when sleeve insertion is disabled. This feature, combined with replaceable applicators, feeders, and sleeve assembly jigs, ensures seamless adjustments for varying production lines and minimize sdowntime, improving manufacturing efficiency.



Specifications of EW-8935

Model	EW-8935
Applicable wire range	0.3-6mm2
Stripping length	1-15mm
Foot pedal start	N/A
Cutting length	50-9999mm
Capacity	1000-2000pcs/hour (Depends on wire material)
Terminal detection	Yes/No detectable
Sheath detection	Yes/No detectable
Air pressure	0.5-0.7Mpa
Adapter sheath	187, 250, 110 and other straight pipe type sheath
Lack of wire detection	Yes/No detectable
Power	110V/220V/50HZ/60HZ
Dimension	11508501850mm
Weight	400Kg
Options	CCD visual Inspection; CFM

Features of EW-8935



LCD Touch Screen

Touch screen can be replace in to with english version.

01


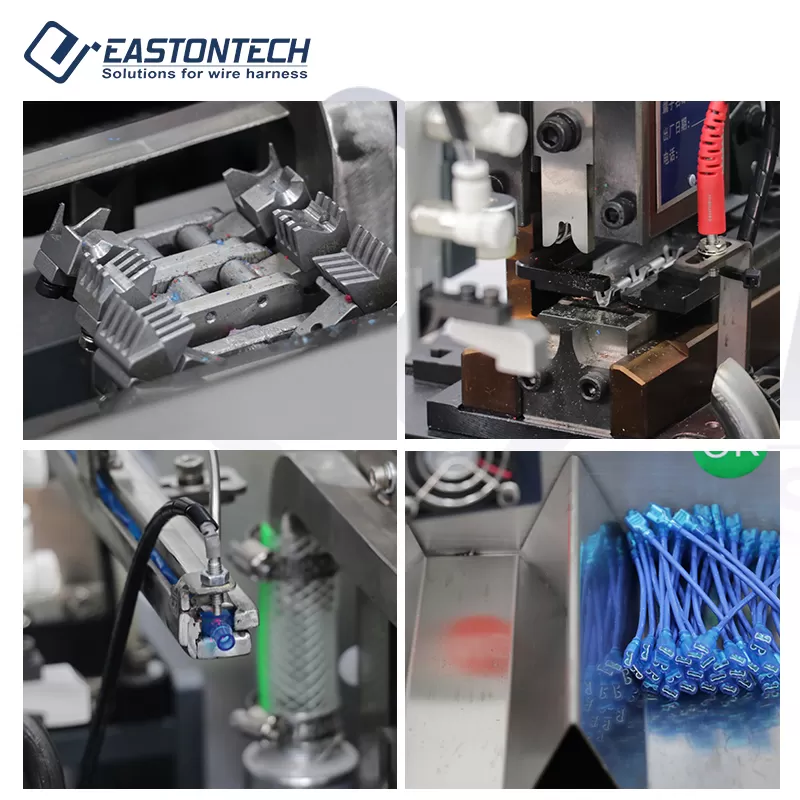

High Precision Mould

High-precision moldsmake processing morestable and increase production speed.

02


Viberation Feeding Plate

It is customized for PVC Sheathed, and the viberation feeding plate is customized according to the PVC Sheathed samples.

03


Feeding Wheel

Imported aluminum knurled hardtreatment,good abrasion resistance,no damage to the wire skin,high wiredelivery accuracy,guaranteed size,not easy to slip and fall off.

04
