EW-8950

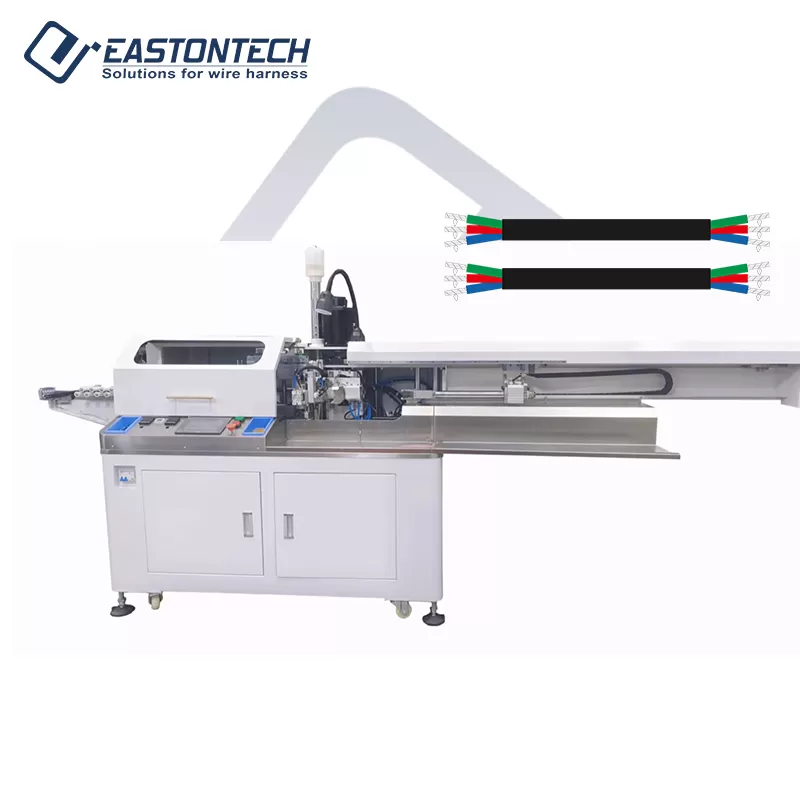

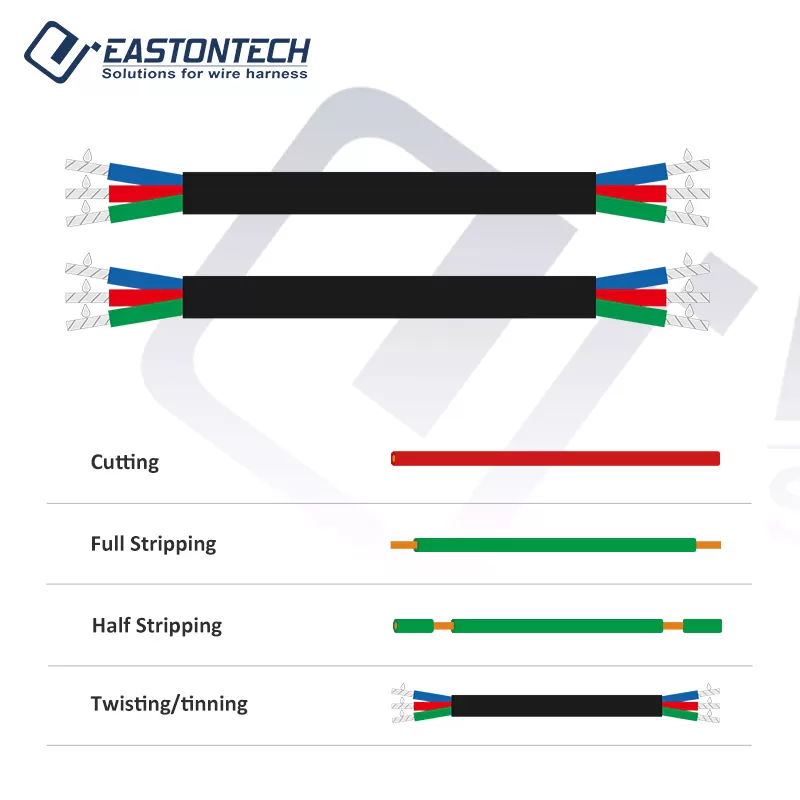

This multi-core cable processing machine is designed for efficient processing of multi-core sheathed wires, integrating cutting, outer jacket stripping, core wire stripping, wire twisting, and tinning into one compact and practical system. It supports round sheathed cables, making it suitable for a wide range of applications such as automotive wiring harnesses, electronic assemblies, and telecommunications equipment.

The machine features a simple operator interface, making parameter adjustments quick and easy for users of different skill levels. Wiith its straightforward setup, operators can switch between different wire specifications without lengthy downtime, ensuring practical flexibility for small to medium batch production.



Specifications of EW-8950

Model	EW-8950
Applicable wire range	AWG28-AWG16
Stripping length	1-15mm
Cutting length	80-9999mm
Capacity	700-1000pcs/hour

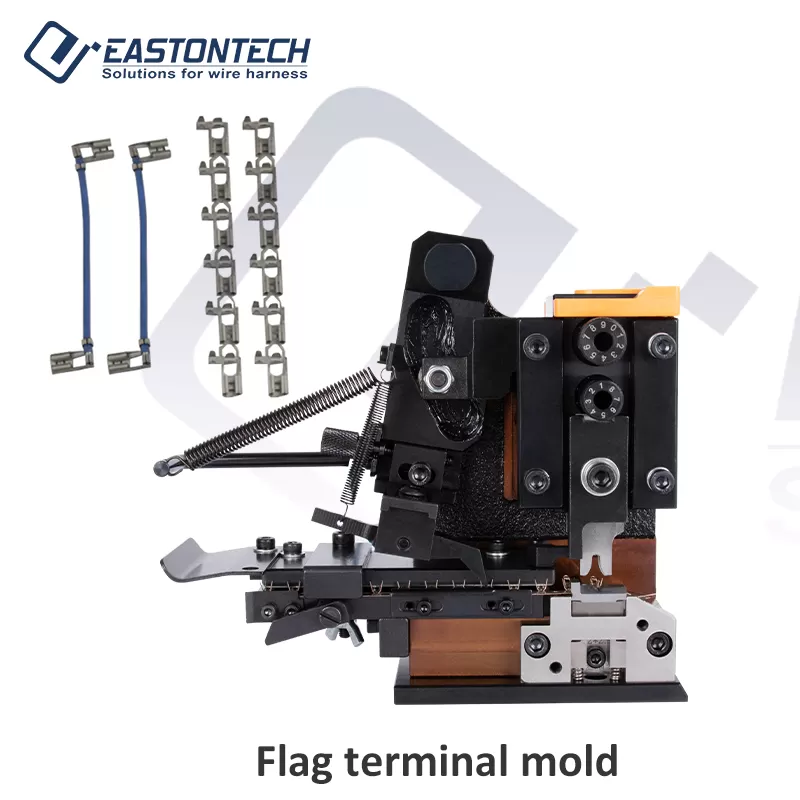

Applicators	30mm / 40mm
Air pressure	0.5-0.7Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Function	Wire cutting, single (double) end stripping, single (double) end crimping, single end heat penetration Shrink tube, single-end heat shrink, single-end sheath, single (double) tube terminal (customized)
Machine Dimension	25508501850mm
Weight	750Kg
Pedal	No

Features of EW-8950



Fluxing/Tinning Module

Enables versatile lead-free tinning of strand ends.
Constant tin flow ensures consistent quality.
The precisely adjustable speed and temperature guarantee a high level of process reliability.

01


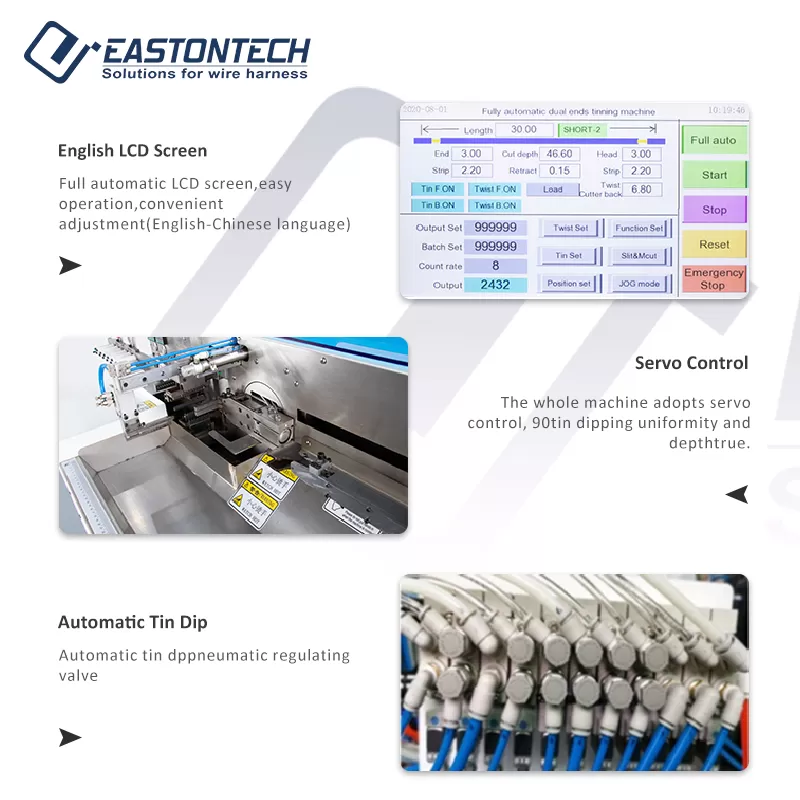

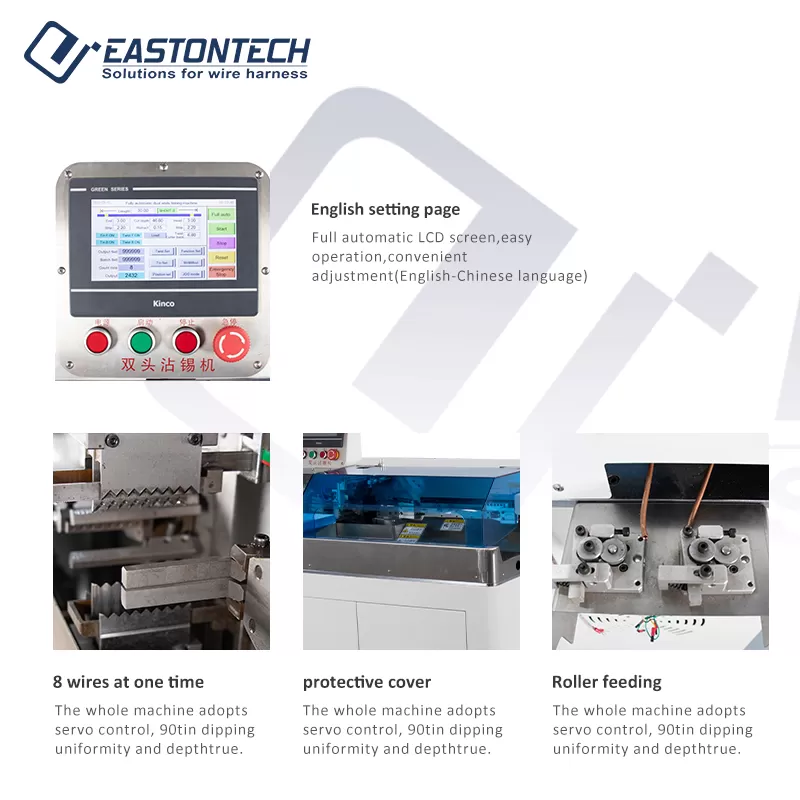

English LCD Screen

Full automatic LCD screen.
Easy operation.
Convenient adjustment(English-Chinese language)

02


HIWIN Guide Rail

High quality steel casting. low noise, strong wear resistance.

03


High-efficiency

Can process 5 cables in same time.

04
