Name: EW-8950 Fully Automatic Three in One Heat Shrink Tube Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

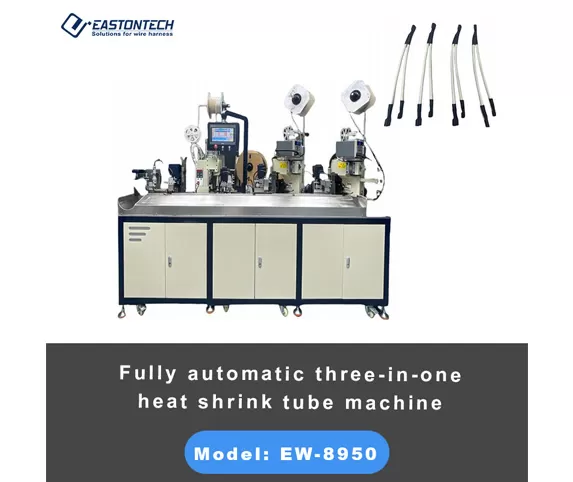

EW-8950 Fully Automatic Three in One Heat Shrink Tube Machine

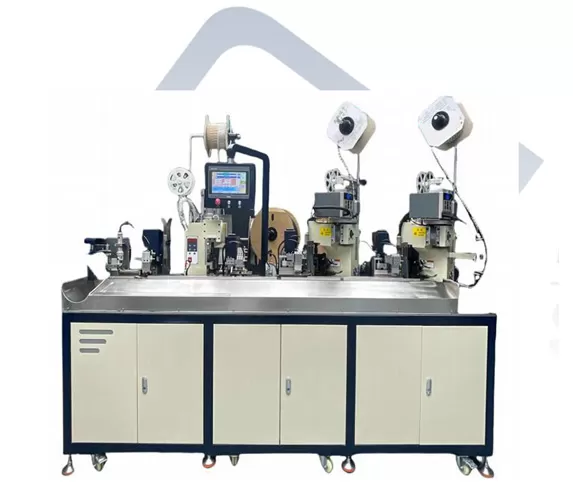

This advanced automatic wire processing machine integrates multiple functions including wire cutting, stripping, heat shrink tube insertion, terminal crimping, and heat shrinking into a single efficient system. The machine features dual wire entry mechanisms and supports simultaneous processing of two wires with different diameters, making it ideal for complex wire harness manufacturing applications.

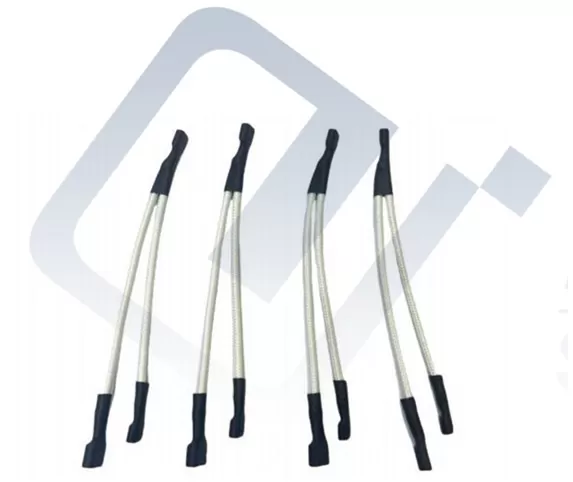

Equipped with three independent crimping stations and two heat shrink tube insertion stations, this versatile machine can insert up to three heat shrink tubes per assembly - one at the crimped joint and two at the wire ends. The modular design concept allows flexible configuration for various product requirements, enabling manufacturers to process different wire assemblies with minimal setup changes.



Specifications of EW-8950 Fully Automatic Three in One Heat Shrink Tube Machine

Model	EW-8950
Applicable wire range	AWG28-AWG16
Stripping length	1-15mm
Cutting length	80-9999mm
Capacity	700-1000pcs/hour
Applicators	30mm / 40mm
Air pressure	0.5-0.7Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power	220V/110V/50/60HZ
Function	Wire cutting, single (double) end stripping, single (double) end crimping, single end heat penetration Shrink tube, single-end heat shrink, single-end sheath, single (double) tube terminal (customized)
Machine Dimension	25508501850mm
Weight	750Kg
Pedal	No

Features of EW-8950 Fully Automatic Three in One Heat Shrink Tube Machine



Screw Drive

Accurate, stable, high efficiency.

01


6 Processing Techniques

Te precision reaches 0.02mm.

02


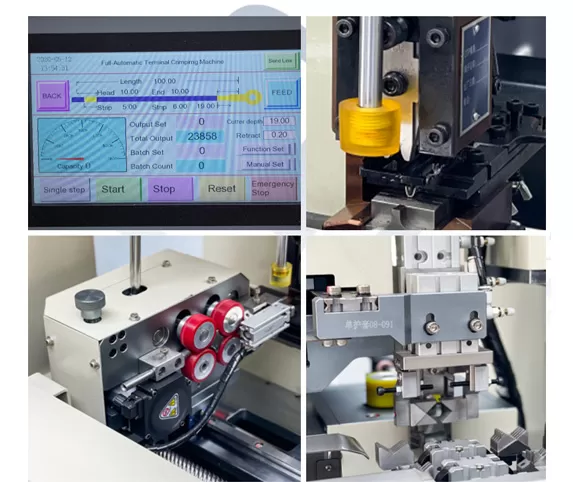

English LCD Screen

Full automatic LCD screen,easy operation, convenient adjustment(English-Chinese language)

03


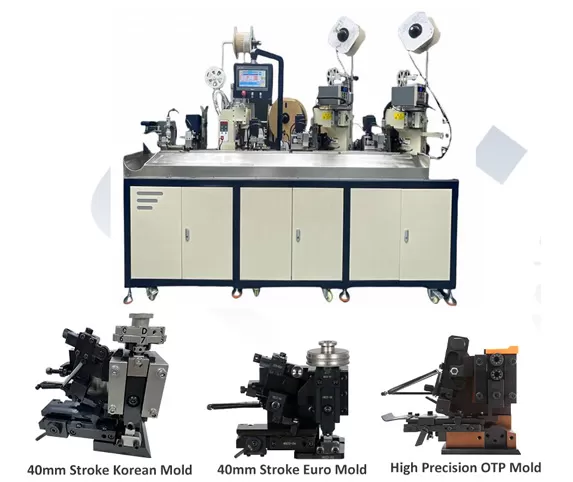

Applicator Mold

Quick and easy for applicator change. Precision wire cutting stripping and crimping,high efficiency,stable performance.

04
