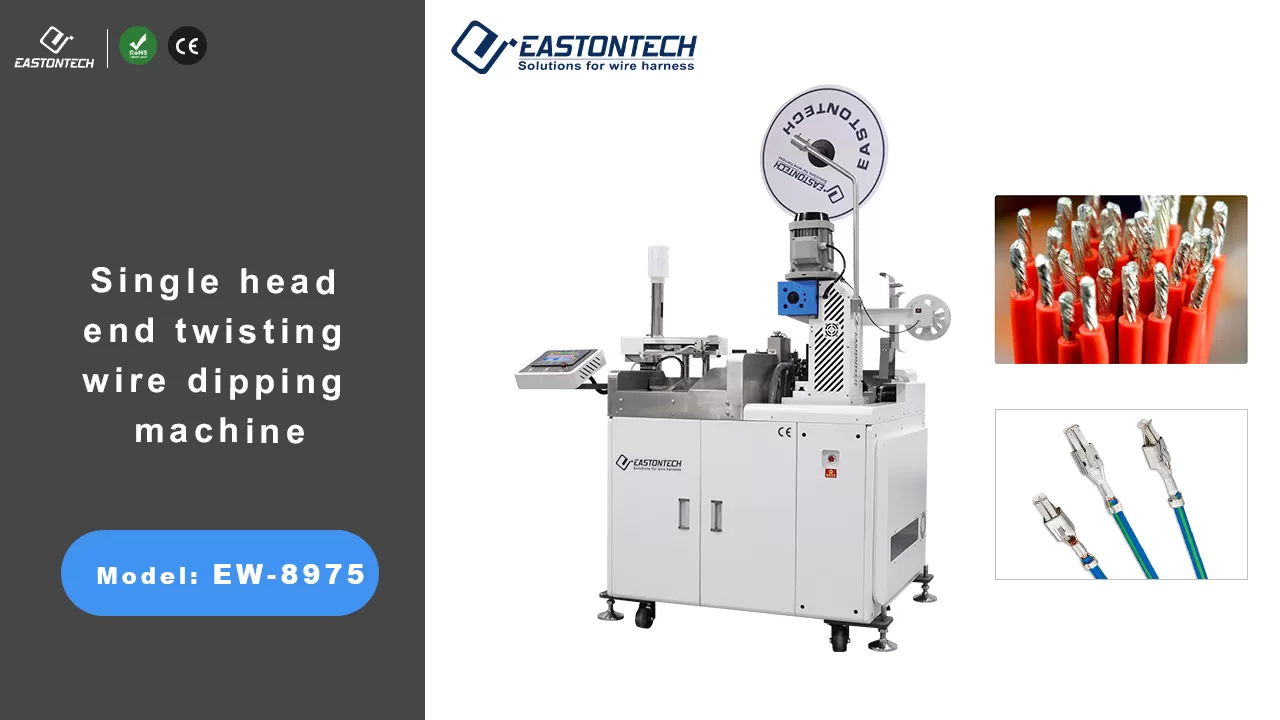

Model | EW-8975 |
Weight | 400kg |
Dimension | 1200*1100*1580mm |
Placement space | 5m2 |
Power | 3000W |
Power supply | 220V/50Hz |
Air pressure | 6kg |
Suppress ability | 2T |
Display mode | Touch screen LCD display |
Applicable wire | Electronic wire, high temperature wire, halogen-free wire, Teflon wire, etc. |
Function | Cutting and stripping wires to fixed length, single-end crimping end and tail dipped in tin. |
Capacity | 2000／h（100mm） |
Applicable wire diameter | 32#-14# |
Cutting processing accuracy | ±0.1（0.1＋0.003*L）mm，L=Cut off length |
Peeling method | Independent stripping of lead screw |
Minimum glue length | Leave 25mm of glue in the middle of the standard machine (special non-standard can be customized) |
Stripping length | The front peeling of the standard machine is within 15mm, and the rear peeling is within 16mm (or it can be changed) |
Tin dipping depth | 18mm(changeable) |
Applicable mold | Horizontal mold, straight mold |
Line delivery method | Guide wheel feeding |
Pan mode | Front and rear end translation XY axis servo guide rail. |
Take-up mode | Translational take-up |
Transmission | Precision screw,guide rail, synchronous wheel belt. |
Detection function | Wire knotting, missing wire detection, missing end detection, paper delivery detection, air pressure detection |
Auxiliary device | Terminal cutting and leakage waste device, waste rubber collection device, paper delivery machine, air pressure buffer gas tank, tin slag collection |
Other | If necessary, additional terminal pressure monitors and vision systems can be installed |

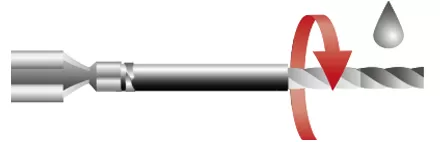

Combines crimping → twisting → tinning in one cycle, eliminating manual handling.

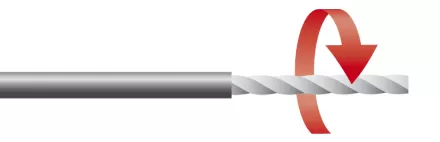

Unique twist-before-tin sequence enhances conductivity and prevents solder wicking.

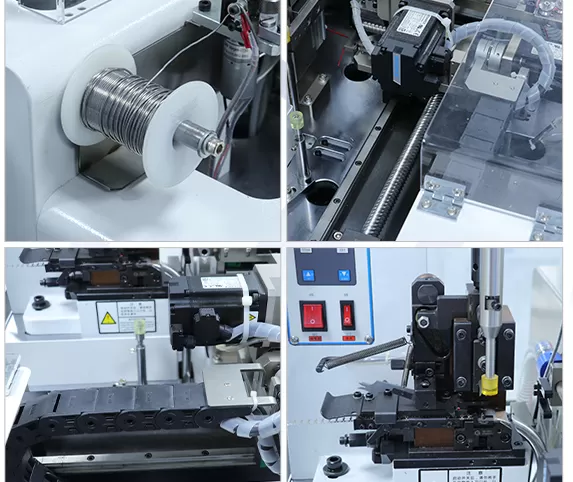

Six servo motors drive independent modules: cutting, stripping, crimping, twisting, and tinning.
Dual-guide rail + ball screw systems (front/rear) ensure ±0.1mm accuracy for stripping/cutting.
Digital HMI (Kinco touchscreen): Adjust crimp depth, twist tension, tin depth (up to 18mm), and multi-stage stripping parameters, offering precise control over the entire crimp and seal sequence.
Real-time monitoring: Wire presence, air pressure, terminal quality, and flux levels with auto-halt for defects.
Quick-change tooling: Modular blade holders and crimping dies swap via touchscreen commands.
Hot-runner tinning system with flux recovery and corrosion-resistant components extends service life
