Model | EW-8980 |
Wire range | AWG32-AWG16 |
Stripping length | 1-12mm |
Cut precision | ±(0.03*L) mm |
Cutting length | 10－830 mm |
Twisting length | 2mm-10mm |
Tinning length | 0.5-11mm |
Capacity | 6000-15500pcs/hour 32#-28# lines can be made 10 at the same time 26#-24# lines can be made 8-9 at the same time 22#-20# lines can be made 6-7 at the same time 18#-16# lines can be made 4-5 at the same time (The size and length of the sight material are different) |
Power | 220V/110V/50/60HZ |
Air pressure | 0.4-0.7Mpa |
Machine size | 1720*750*1450mm |
Weight | 380Kg |
Options | CCD visual Inspection; CFM |
Detection function | Wire missing detection, wire knotting, air pressure detection |
Transmission structure | Precision screw, guide rail, reducer |
Auxiliary devices | Waste flux collection device / waste tin slag collection device / waste rubber collection device |
Processes 10 wires simultaneously – dramatically boosting output while reducing time/cost.
Patented no-clamp-change switching between long/short wires (China’s first) + optional motorized cable-splitting add-on.
Virtual light curtain barrier replaces physical guards for unobstructed workflow visibility + operator safety.
Self-diagnostic system: LED fault indicators pinpoint issues (blade, timing, sensors) for instant maintenance.
Fully digital touchscreen control: Adjust blade size (5.5mm core-protective spacing), strip/twist/tinning parameters, and twist direction/tension instantly.

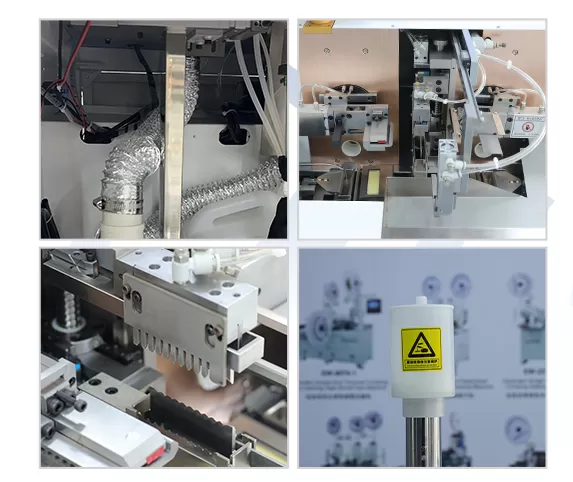

Servo-driven tool holder with dual-guide rails & lead screws ensures ±0.01mm accuracy during stripping/cutting.
Closed-loop waste management: Hot-runner heaters with integrated pipelines for 100% rosin fume/tin slag recycling.
Corrosion-resistant critical components + ultra-wide glue extraction port + air-blade cleaning ensure debris-free operation.
