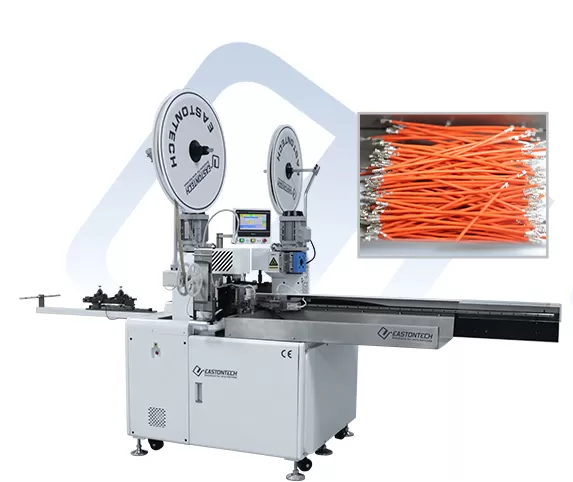

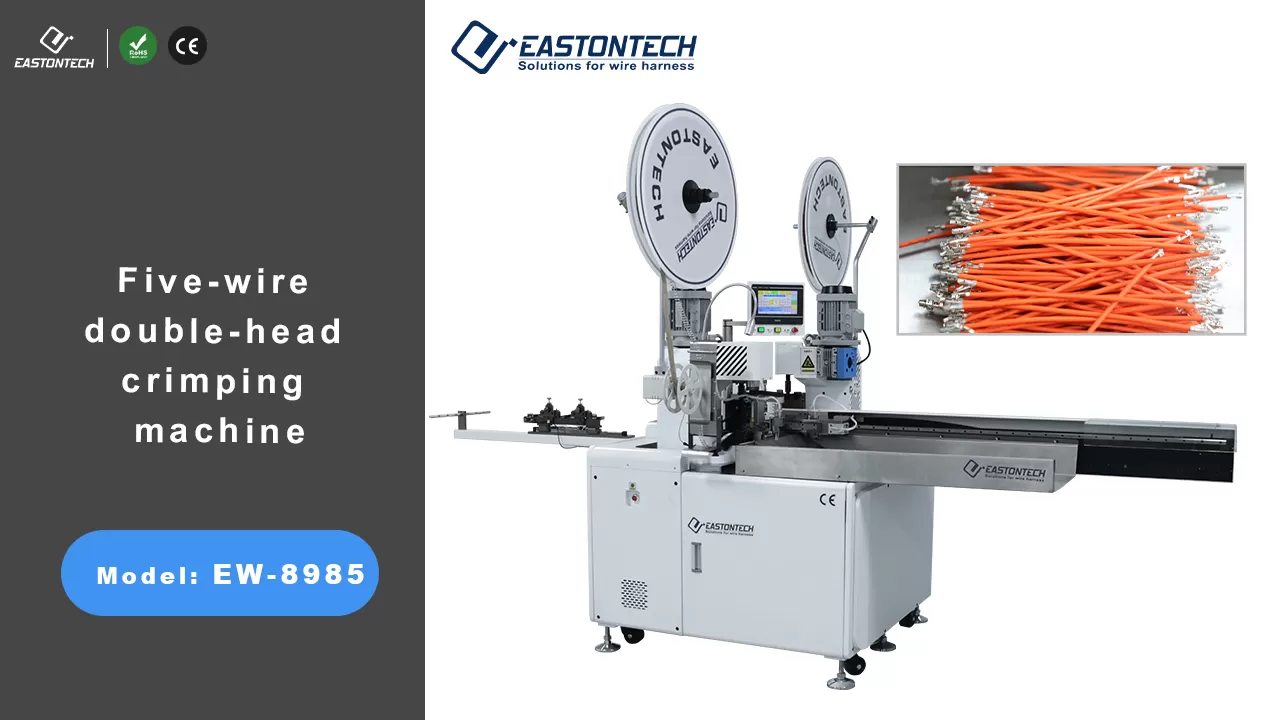

Model | EW-8985 |
Weight | 460kg |
Display mode | Touch LCD display |
Power Supply | AC220/50Hz /2000W |
Suppress Ability | 2T |
Function | Double-head tying and multiple operations at the same time |
Applicable wire | Electronic wire, high temperature wire, Teflon wire, etc. |
Capacity | 6000 pieces/h(100mm) |
Applicable wire diameter | 28＃-14＃ |
Stripping length | The front stripping distance of the standard machine is 12mm and the rear stripping distance is 10mm. |
Cutting length | Standard machine within 45-1200mm (longer length optional 1500/2000/3000mm) |
Cutting accuracy | Within ±0.1 (0.1＋0.005*L) mm, L=cut length |
Applicable mold | Universal for transverse mold and straight mold |
Pan mode | Front and rear screw guide servo |
Take-up mode | Rotating take-up |
Transmission structure | Precision screw rod, guide rail, etc. |
Appearance size | 2100mm×1300mm×1420mm |
Pull mode | Servo brake |
Detection function | Whether there are wires, whether the wires are knotted, whether there are ends, whether there are terminals, and air pressure monitoring |
Auxiliary device | Terminal cutting and leakage waste device/waste rubber collection device, paper delivery machine, air pressure buffer gas tank |
Machine features:
1. 5-wire double-head machine, wire cutting, stripping and crimping in one, blade size, wire cutting and stripping length, crimping and rubber coating depth, all digitally and quickly change;

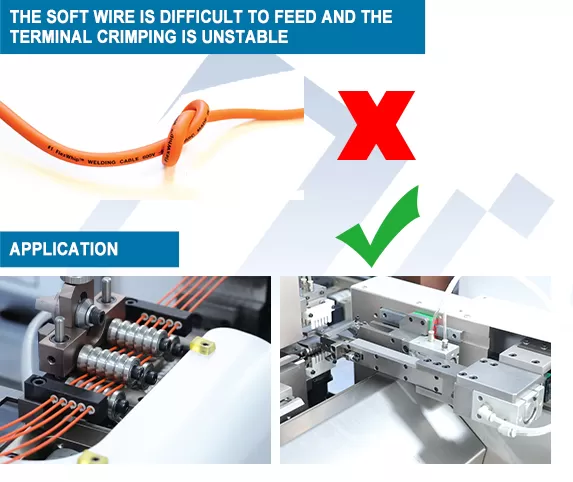

2. The rear-end wire drawing fixed length mode solves the long-standing problem of difficult and unstable crimping of soft wires, precise wire cutting and stripping, and neatly stored wires;
3. Front and rear translation double-head stripping, both are servo double guide rails, front and rear stripping are servo screw guide rails, and the stripping pressure end is stable;
4. The tool holder is a grinding screw double guide servo, and the rubber is clean with suction and blowing;
5. 2-ton casting precision terminal machine, wear-resistant, with horizontal and vertical die-cutting material leakage;
6. The tool holder, front and rear translation, air clamp, etc. are all hard precision grinding parts with long service life;
7. Built-in abnormal signal indicator light, easy to check faults, clear at a glance.
Processes 5 wires simultaneously with independent dual-head crimping stations, significantly boosting throughput in high-volume crimp and seal production.
Patented pull-wire length-setting mode eliminates instability with soft wires, ensuring precise alignment and crimping.
Six servo motors drive cutting, stripping, translation, and crimping movements.
Dual-guide rail + ball screw systems (front/rear stripping, tool holder) achieve surgical accuracy.
Real-time monitoring: Wire presence, air pressure, terminal crimp quality (optional CCD), and scrap detection.
Self-diagnostic I/O screen visualizes faults instantly; automatic halts for 20+ error types (e.g., wire knots, servo faults).
Modular quick-change tooling: Blade holders, crimping dies, and stripping units swap digitally via touchscreen.
Corrosion-resistant components + hot-runner tin recycling extend machine lifespan.
