Name: EW-9240 Automatic Coaxial Cable Stripping Soldering And Ipex Terminal Crimping Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

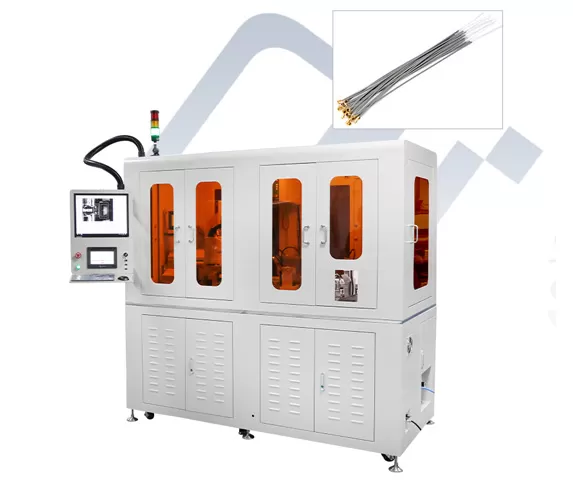

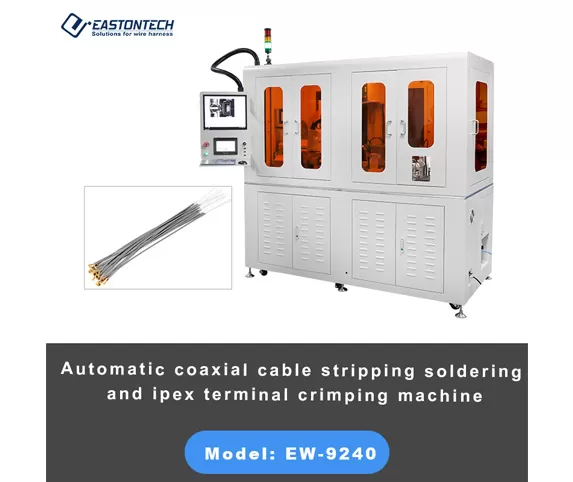

EW-9240 Automatic Coaxial Cable Stripping Soldering And Ipex Terminal Crimping Machine

This advanced automated coaxial cable crimping and tinning machine integrates multiple precision technologies into a streamlined, high-efficiency production system. The equipment combines precision coaxial wire stripping, robotic arm handling, high-resolution vision positioning, automatic crimping, electrical testing, fluxing, and tin dipping processes in one comprehensive unit.

The machine delivers exceptional precision in both crimping and tinning operations with advanced electrical testing capabilities including high-voltage continuity, short/open circuit detection, and dimensional inspection to ensure every finished product meets stringent quality standards. With its linear design and compact structure, this processing system saves valuable floor space while maximizing operational efficiency.



Specifications of EW-9240 Automatic Coaxial Cable Stripping Soldering And Ipex Terminal Crimping Machine

Model	EW-9240
Wire Diameter	0.64-1.78mm coaxial cable
Stripping length range	0.1-30mm
Cutting length	35mm-800mm(For 35mm tin-dipped ends: max. 5mm stripping length)
Terminal crimping	Compatible with Ipex Gen1-5 RF terminals and other major brands
Finished Product Yield	≥99.7% (Tested with 1.13mm premium coaxial cable + Gen1 1.13-1.0 terminals)
Equipment Utilization Rate	≥95%
Electrical + Vision Testing	High-voltage/open-short circuit/continuity tests, dimensional inspection, position verification
Stripping tolerance at both ends	±0.1mm
Total length tolerance	±0.5mm
Production Efficiency	950-1240 PCS/H (Depending on stripping length)
Production Process	Single-head Terminal Crimping, Single-head Tin Dipping
Robotic System	EPSON Japan 4-axis SCARA robot
Vision System	Original EPSON Vision Suite (Japan)
Operation Interface	Touch screen and computer
Air Pressure	not less than 0.5Mpa
Power Supply	AC220V±10V
Power	2K W
Weight	900 kg
Dimension	230015002200

Features of EW-9240 Automatic Coaxial Cable Stripping Soldering And Ipex Terminal Crimping Machine



All-in-One Automation

Combines stripping, robotics, vision, riveting, testing, fluxing, and tinning for a fully integrated solution.

01


Upgraded Linear Design

Streamlined layout for higher efficiency, stability, and improved pass rate.

02


Built for RF & I-PEX

Engineered for RF connectors, multi-generation I-PEX terminals, and diverse coaxial cable applications.

03


Ready for Mass Production

Straight-through workflow reduces setup complexity and ensures consistent, high-quality results.

04
