Name: EW-9255 One End Crimp Terminal And One End Tinning Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

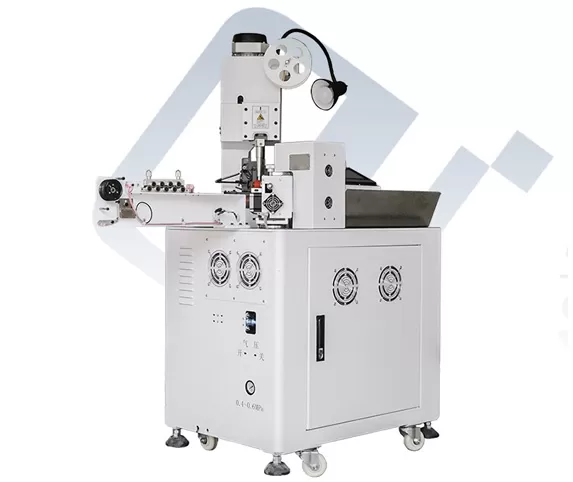

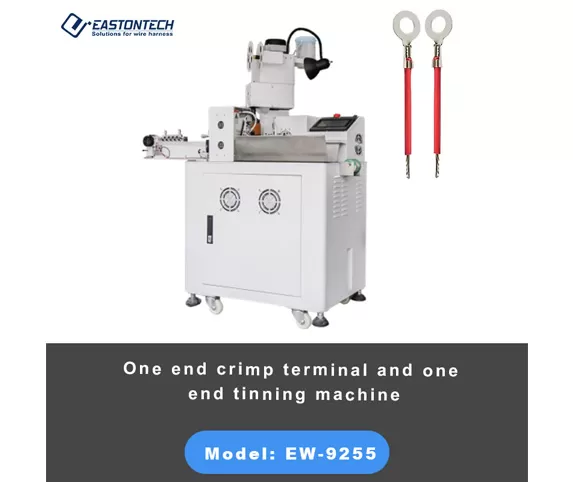

EW-9255 One End Crimp Terminal And One End Tinning Machine

This economical fully automatic wire processing machine delivers exceptional value by integrating multiple functions including wire cutting, stripping, twisting, tinning, and terminal crimping in a single cost-effective unit.

Designed for budget-conscious manufacturers seeking high-efficiency production, dramatically reducing labor costs while maintaining professional-grade quality output.

The machine's affordable price point makes it an ideal investment for small to medium-sized operations looking to automate their wire processing without breaking the budget. Its modular flexible design concept allows easy adaptation to different product requirements, maximizing return on investment by enabling seamless switching between various wire and terminal configurations with minimal additional costs.



Specifications of EW-9255 One End Crimp Terminal And One End Tinning Machine

Model	EW-9255
Applicable wire range	OD<4mm
Stripping length	1-10mm
Cut precision	±(1+0.004*L) mm, L=cut length
Cutting length	35-9900mm
Capacity	1500-1800pcs/hour(L<300mm)
Crimping force	2.0T
Applicators	30mm or 40mm strokes for optional
Air pressure	0.4-0.6Mpa
Detection	Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension	7208501650mm
Power supply	220V/110V/50HZ/60HZ

Features of EW-9255 One End Crimp Terminal And One End Tinning Machine



One Machine for Multiple Uses

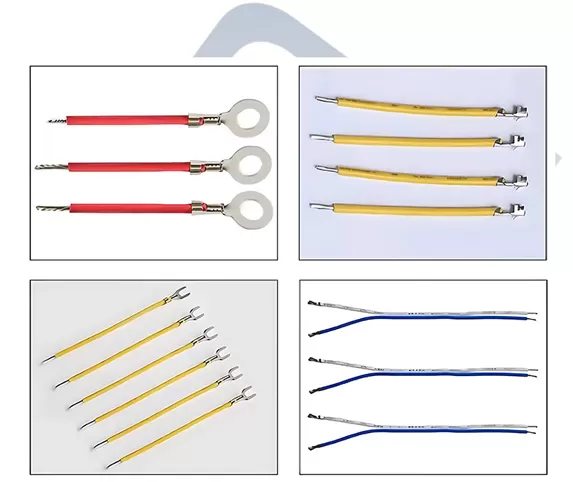

One side stripping crimping, another side twiting tinning function.

01


High Precision Configuration Mold

It can be equipped with horizontal die, straight die and single-grain die of the terminal machine, which can be quickly replaced and the replacement is very simple.

02


Fast Wire Feeding Mechanism

There are two wire feeding wheels to form a set of wire feeding mechanism. The material is aluminum alloy. After hard oxidation treatment, it is durable and durable. The surface is knurled to avoid slipping when processing high-temperature wires. It can be replaced with rubber wheels.

03


Straightener

The part is equipped with a wire shortage device. When the wire is processed, the machine will automatically send an alarm, so that the machine will not generate a runaway.

04
