Name: EW-9290 Automatic 5 8 Wires Double Side Crimping Single Side Crimping and Tinning Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

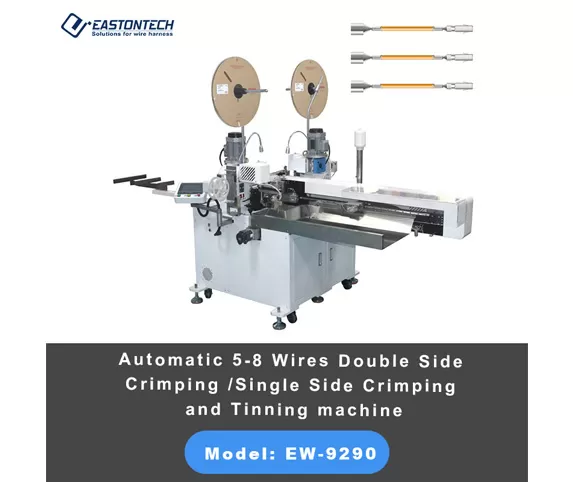

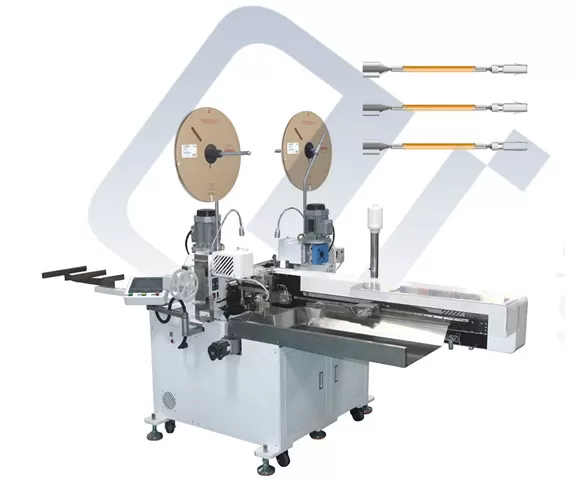

EW-9290 Automatic 5 8 Wires Double Side Crimping Single Side Crimping and Tinning Machine

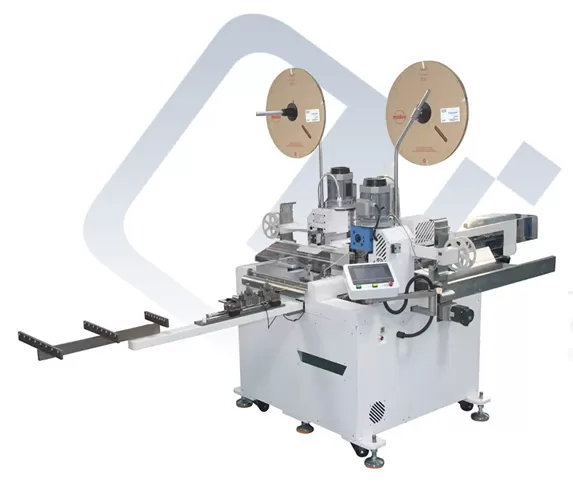

This versatile multi-function machine combines dual-head terminal crimping with single-end crimping and wire twisting tinning capabilities in one compact unit. By integrating the functionality of two separate machines, it delivers exceptional space efficiency and outstanding cost-performance value for manufacturers.

This machine is optimized for single wire processing and supports simultaneous processing of up to 8 wires, significantly improving production efficiency.



Specifications of EW-9290 Automatic 5 8 Wires Double Side Crimping Single Side Crimping and Tinning Machine

Model	EW-9290
Stripping Length	4.5-10mm
Cutting Length	50-950mm
Applicable Wire Sizes	30-16AWG
Number of Wires	5-8 wires
Tin-Dipping Depth	14mm
Production Capacity	6,000–8,500 pcs/h
Main Functions	Multi-core single wire double-end terminal crimping + rear-end tin dipping

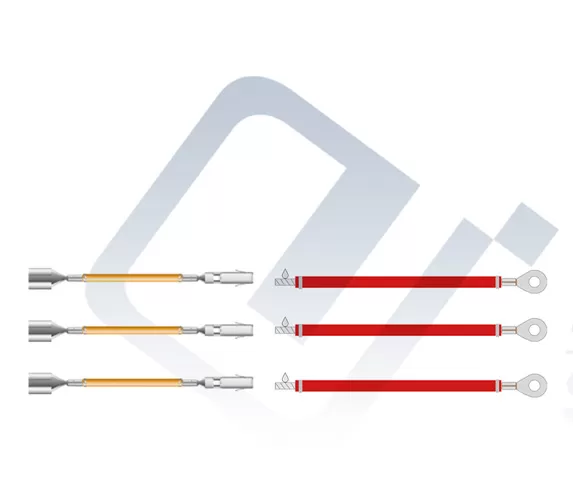

Applicable Terminal Types	PH, XH, EH, SCN, SM, VH, Dupont, etc.
Display	Touch screen LCD
Arm Movement Type	Servo-driven linear motion at both front and rear ends
Wire Collection System	Rotary swing-arm collection
Drive Mechanism	Precision ball screw and linear guide rails
Detection Features	Terminal crimping detection, wire presence detection, paper collection detection
Auxiliary Devices	Terminal scrap paper winding device, terminal waste cutting device
Installation Space Required	5 square meters
Power Supply	AC220V/50Hz
Power Consumption	3000W
Air Pressure	0.5-0.7Mpa
Machine Dimensions	2300mm* 1200mm *1550mm
Weight	450kg
Pedal Start	No

Features of EW-9290 Automatic 5 8 Wires Double Side Crimping Single Side Crimping and Tinning Machine



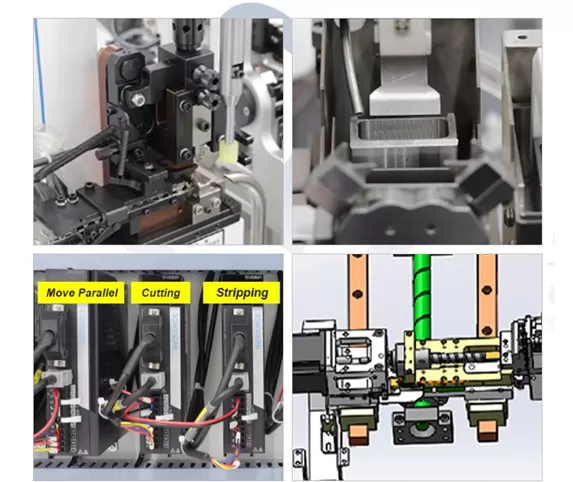

Tool Holder Assembly

Servo motor drive; High-strength tool holder structure; High-precision ball screw; High-precision cutting tools for special wires.

01


Take-up Assembly

Using a rotating swing arm pneumatic wire clamp; Keep the clamping line stable.

02


Translation Clamp Assembly

Using a pneumatic system; Improves efficiency; Ensures accuracy; Enhances stability.

03


Back-end Translation Mechanism Component

Rear-end mechanism driven by servo motor; Transverse winding; Uses precision ball screw; Auxiliary wire clamping mechanism to improve efficiency.

04
