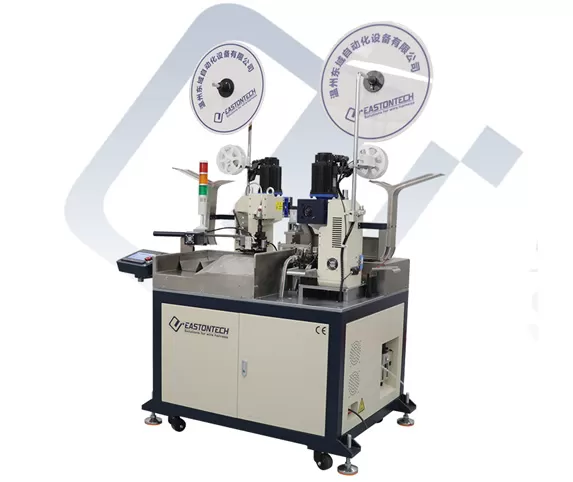

Model | EW-9305 |
Applicable wire range | 0.3-6mm2 (AWG24#-AWG10#) |
Cutting length | 50mm-9999mm |
Stripping length | 1-15mm (Stripping length can be customized) |
Crimping force | 2.0T-4.0T |
Capacity | 1000-2000psc/H |
Function | Wire cutting, single (double) end stripping, single (double) end pressing, single (double) sheathed (customized), single (double) tube terminal (customized) |
Power supply | Single-phase AC220V 50/60Hz 16A |
Air pressure | 0.5-0.7Mpa |
Crimp stroke | 30mm (customizable 40mm stroke) |
Dimension | 1150* 850*1850mm |
Detecting device | Pressure detection, wire detection, crimping terminal detection, pressure monitoring (optional) |

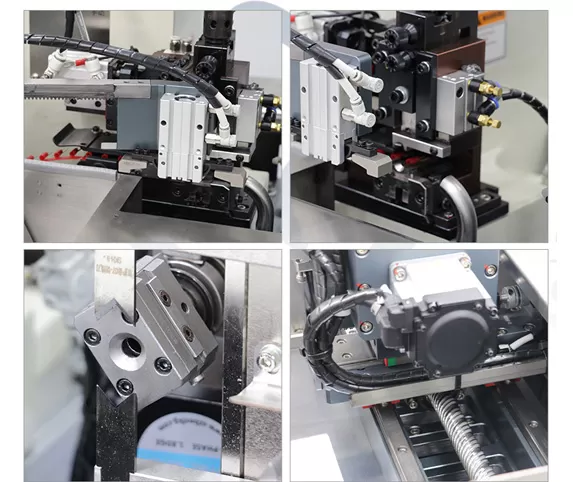

With data communication interface, data preset, electronic precise positioning, the motor working noise is smaller than that of traditional terminal machine during crimping, and saves power, and is more convenient and quick to adjust the mode, avoiding common faults such as traditional terminal clutches and electromagnets.
High-precision molds make processing more stable and increase production speed.
Imported aluminum knurled hardtreatment, good abrasion resistance, no damage to the wire skin, high wire delivery accuracy, guaranteed size, not easy to slip and fall off.
It is customized for insulated loose terminals, and the viberation feeding plate is customized according to the terminal samples.
