Name: EW 9315 Robot End Tinning Double Tin Furnace
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

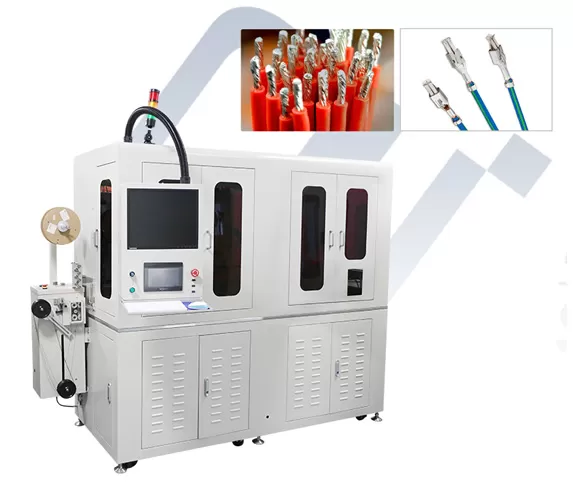

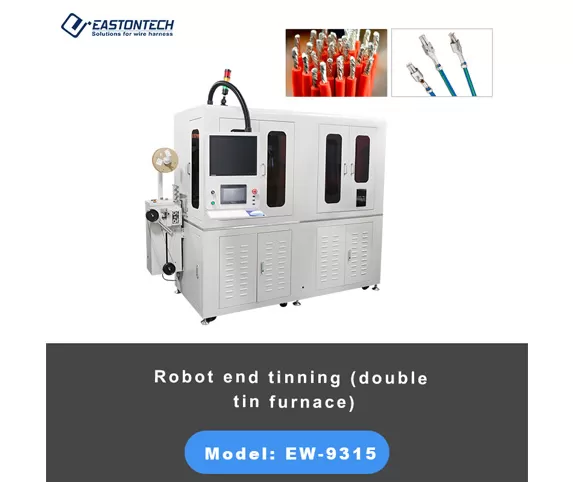

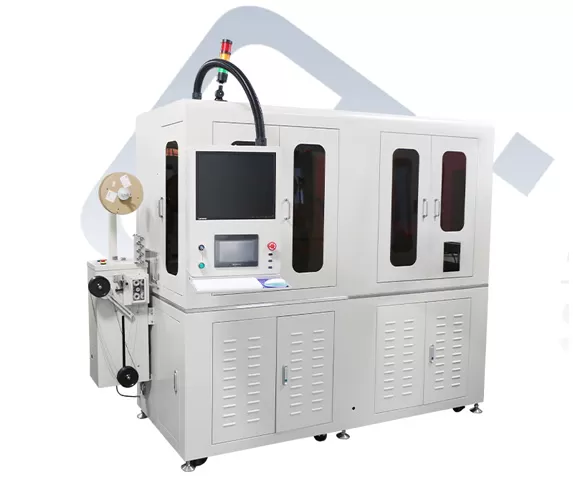

EW 9315 Robot End Tinning Double Tin Furnace

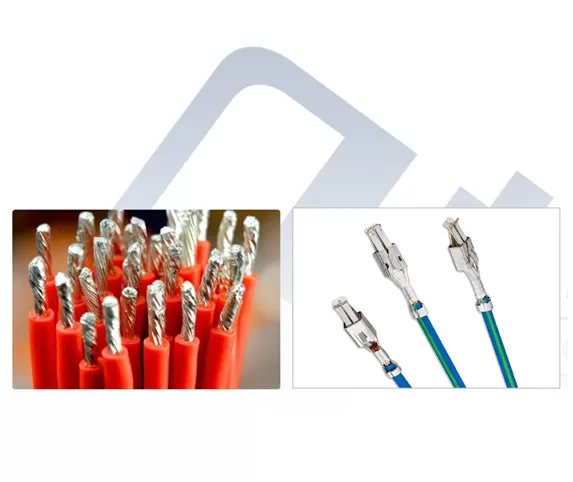

This advanced automated coaxial cable crimping and tinning machine integrates multiple precision technologies into a streamlined, high-efficiency production system. The equipment combines precision coaxial wire stripping, robotic arm handling, high-resolution vision positioning, automatic crimping, electrical testing, fluxing, and tin dipping processes in one comprehensive unit.

The machine delivers exceptional precision in both crimping and tinning operations with advanced electrical testing capabilities including high-voltage continuity, short/open circuit detection, and dimensional inspection to ensure every finished product meets stringent quality standards. With its linear design and compact structure, this processing system saves valuable floor space while maximizing operational efficiency.



Specifications of EW 9315 Robot End Tinning Double Tin Furnace

Wire range	Wire diameter 0.64-1.78mm coaxial line
End range	Meet IPEX, Xuande, Kangshuo, Kexincheng, Caimei and other series of terminals
Total length of cutting line	1-15m35mm-800mm (35mm product tinned end stripping size does not exceed 5mm)
Finished product yield	≥99.7% (Data based on Shenyu brand wire and IPEX
Equipment utilization rate	≥95%
Electrical and visual inspection	High voltage short circuit test, size detection, position positioning
Processing accuracy	Stripping tolerance at both ends ±0.1mm Total length tolerance ±0.5mm
Processing efficiency	900-1200PCS/H (depending on the stripping length)
total power	About 3.3KW
weight	About 1200kg
Working voltage	AC220V±10V
Working pressure	Not less than 0.5Mpa
Production process	Single end terminal, single end tinning (double tinning furnace tinning)
robot	Adopt Japanese EPSON four-axis robot
Operating temperature range	15℃ - 30℃

Features of EW 9315 Robot End Tinning Double Tin Furnace



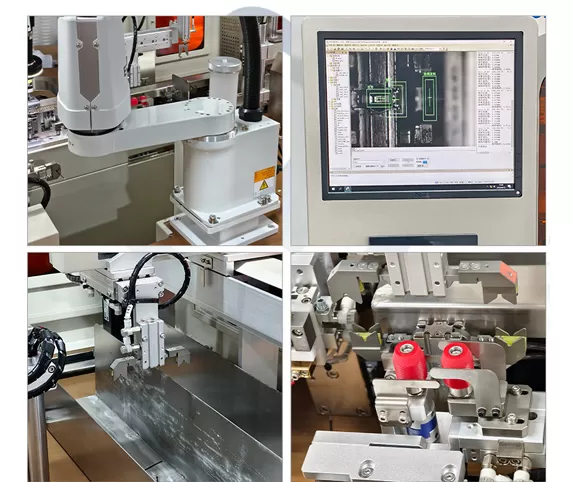

Robot

Adopt Japanese four-axis robot; High precision.

01


Electrical Test Plus Visual Detection

High voltage short circuit conduction test, dimension detection, position positioning.

02
