EW-9320

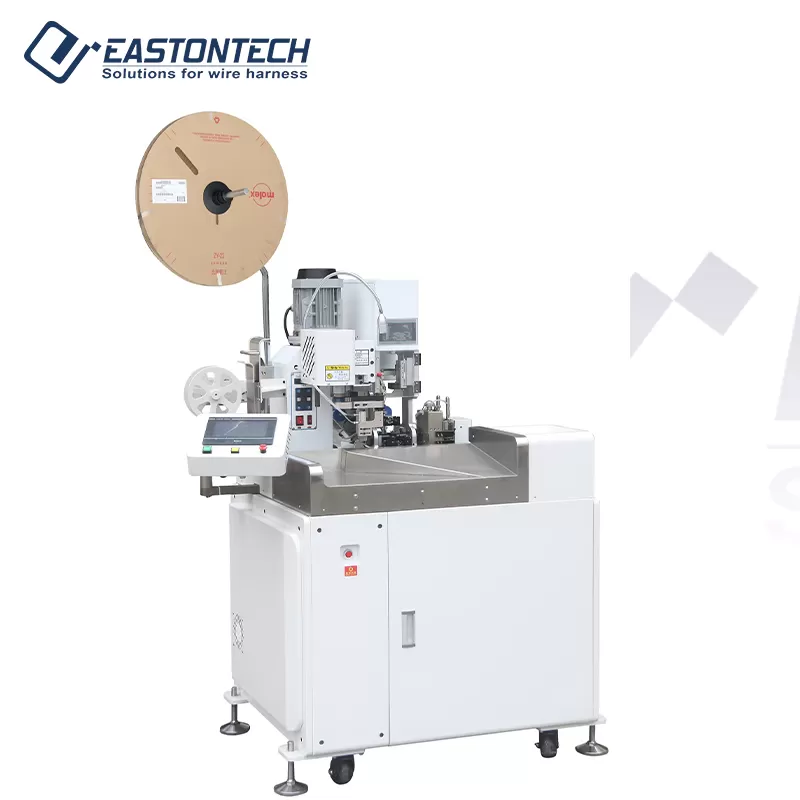

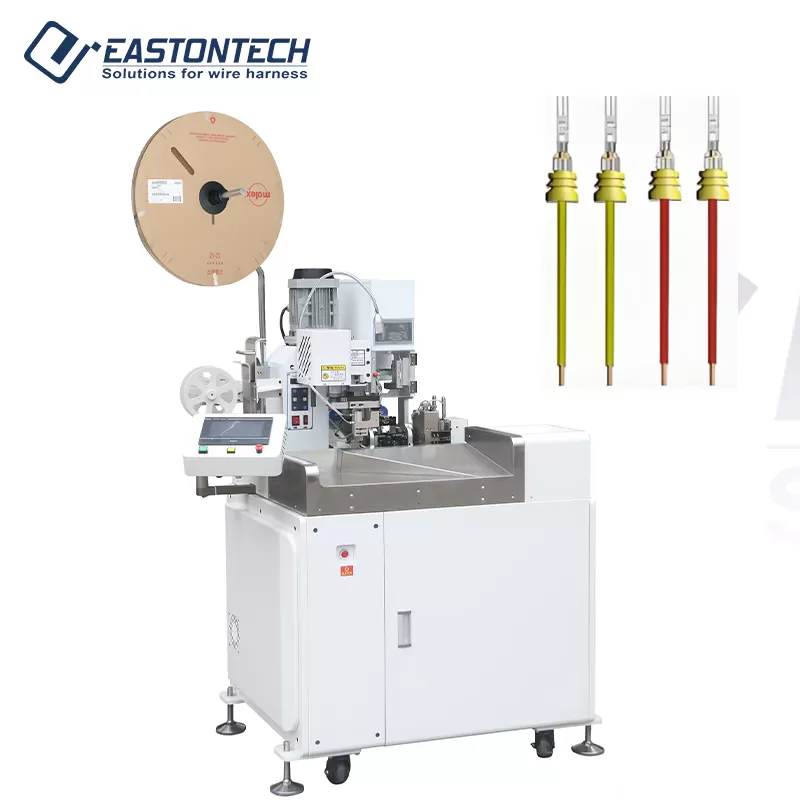

This economical double-sided crimping and single-head waterproof sealing machine integrates multiple functions including wire cutting, stripping, waterproof sealing, and terminal crimping into one efficient unit, The automatic feeding system ensures seamless waterproof plug installation, while the versatile design allows processing of various product types with quick changeover capabilities.

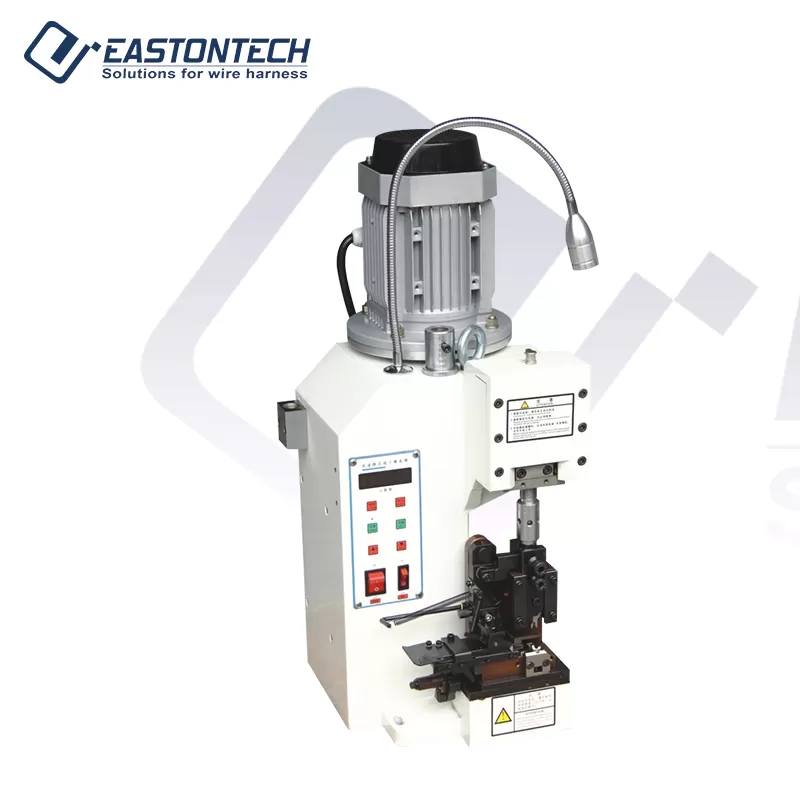

Built with nodular cast iron construction, this machine delivers exceptional rigidity and consistent crimping performance. The standard OTP bayonet mold system provides reliable terminal connections, with optional European applicator compatibility and crimping force monitoring for enhanced quality control and real-time process verification.



Specifications of EW-9320

Model	EW-9320
Function	Wire length cut & strip double-end crimping single-head waterproof inserting
Wire Range	AWG28-16
Cutting accuracy	±0.1 (0.1 + 0.003*L) mm or less
Stripping Length	Head stripping < 15mm, End stripping < 15mm (customizable)
Applicable wires	Electronic wire, high-temperature wire, halogen-free wire, Teflon wire, etc.
Crimping Force	2T
Interface	Touch screen LCD display
Air Pressure	0.6-0.7mpa
Detection function	Wire Knotting / Missing Wire Detection / Missing End Detection / Missing Terminal Detection / Take-up Detection / Air Pressure Detection
Size	L 1700* W 900* H 1580 mm
Weight	400KG
Power supply	220V/50HZ 110V/60HZ
Power	3000W
Placing space	4 square meters

Features of EW-9320



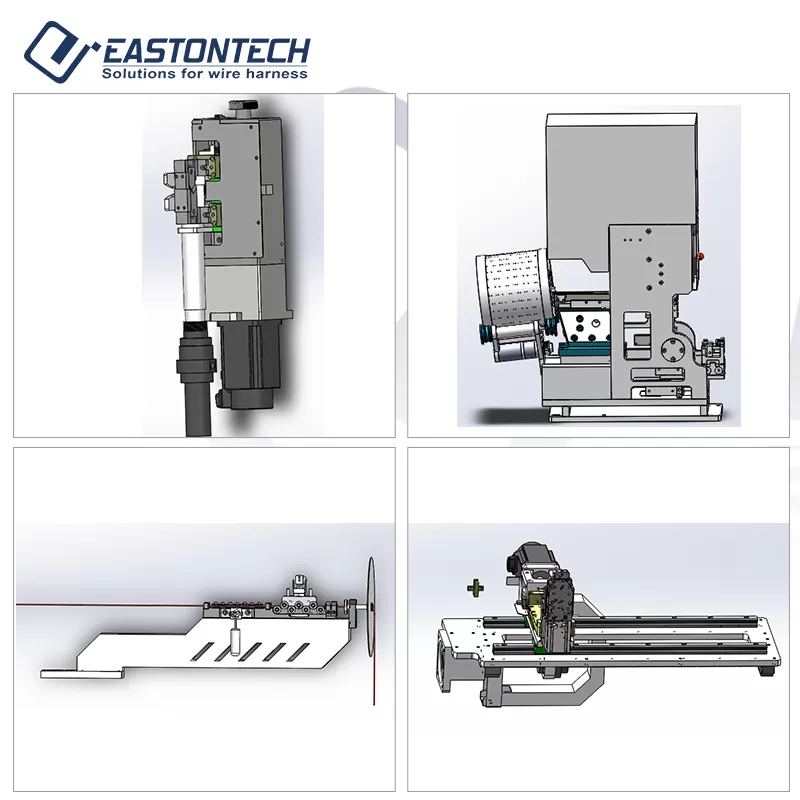

Transport Components

Adopt precision ball screw ,auxiliary wireclamping mechanism to improve efficiency.

01


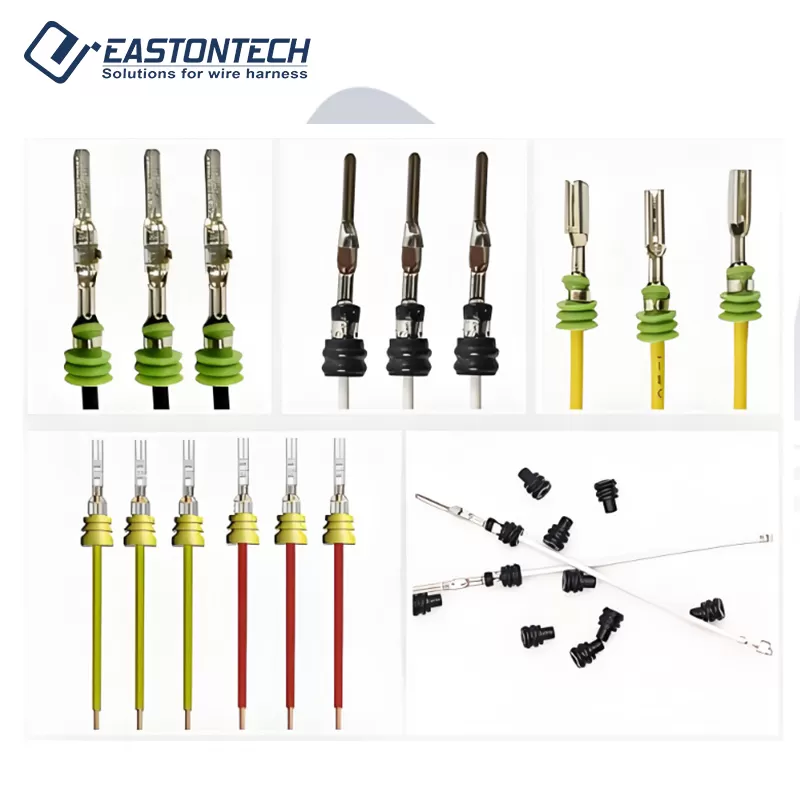

Waterproof plug assembly

It has breathable and sealing properties,which can effectively protect equipmentand structures from moisture.

02
