Name: EW-9365
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-9365

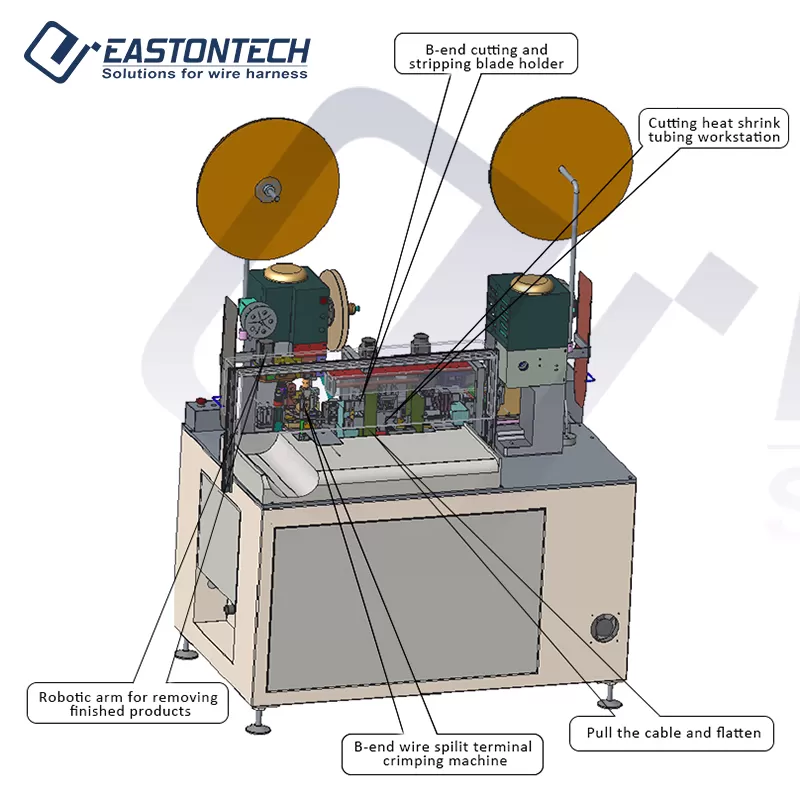

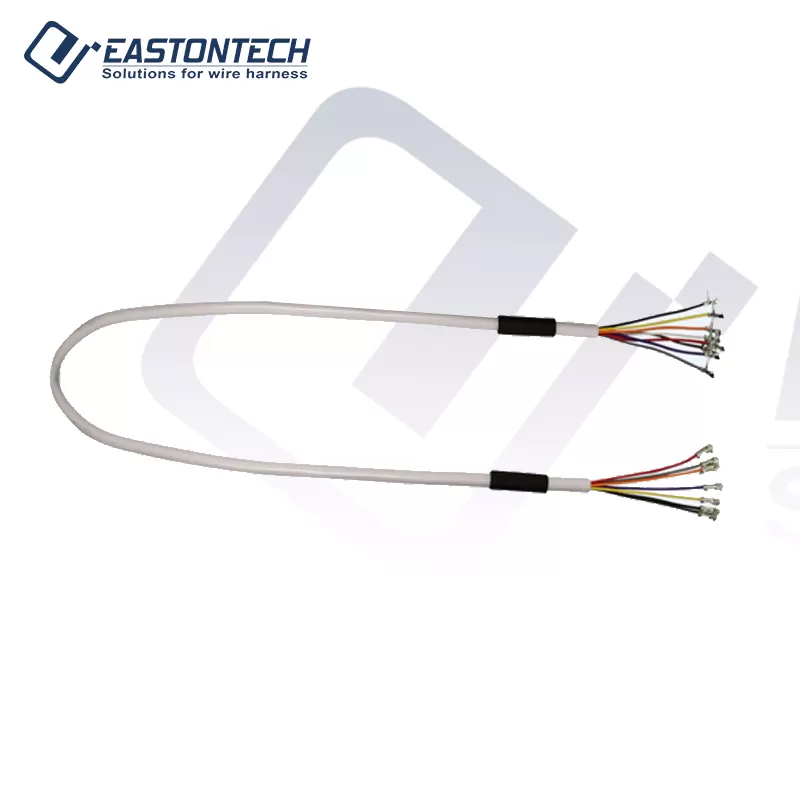

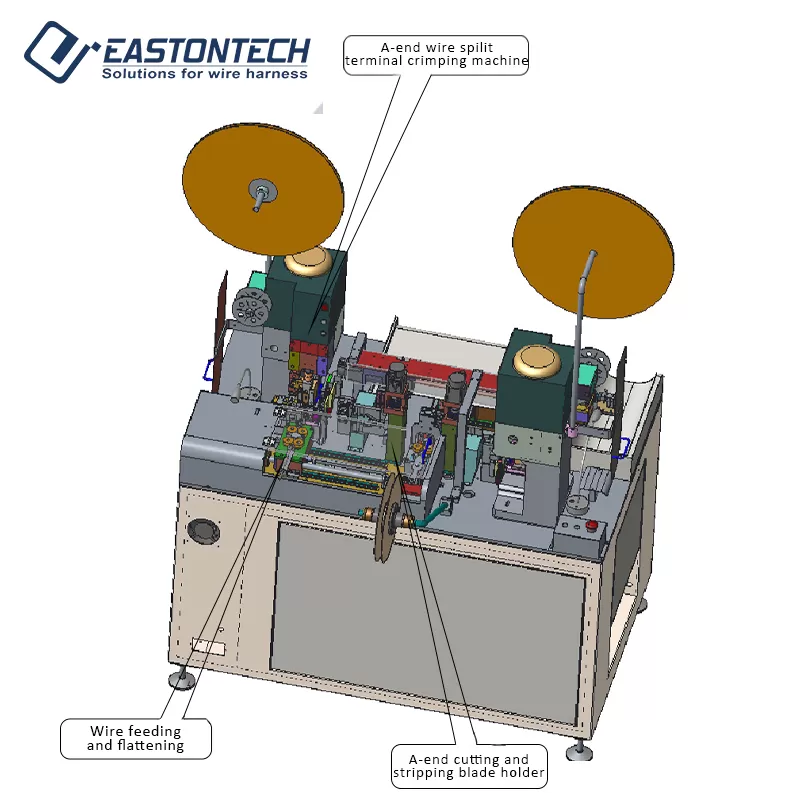

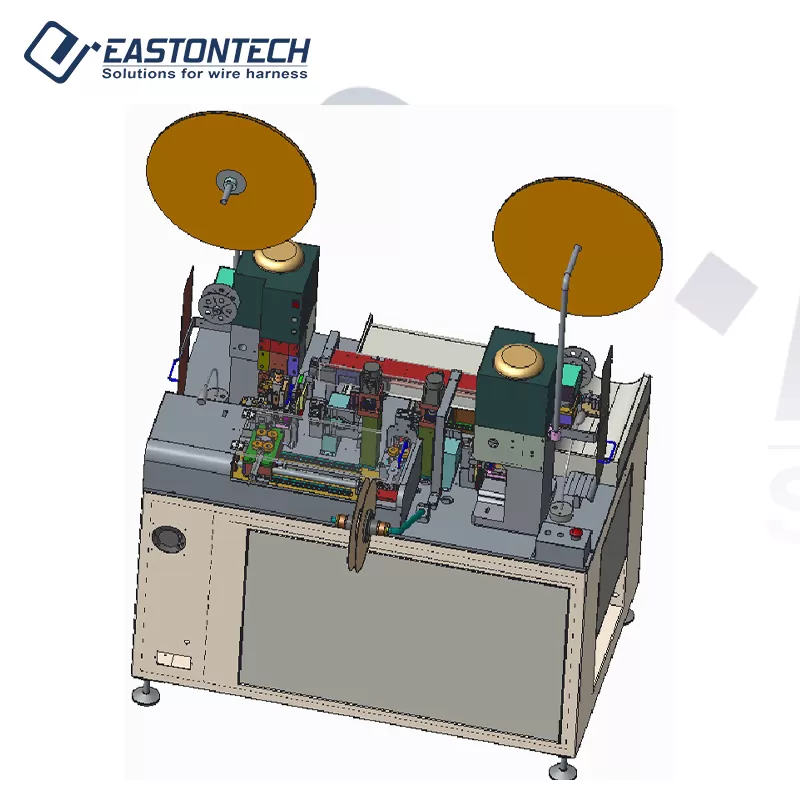

This advanced multi-core cable processing machine handles 2-8 core sheathed wires with integrated heat-shrinkable tube functionality. The system combines wire cutting, jacket stripping, core wire stripping, terminal crimping, and heat shrink tube insertion in a single automated process, significantly reducing manual labor and enhancing production efficiency.

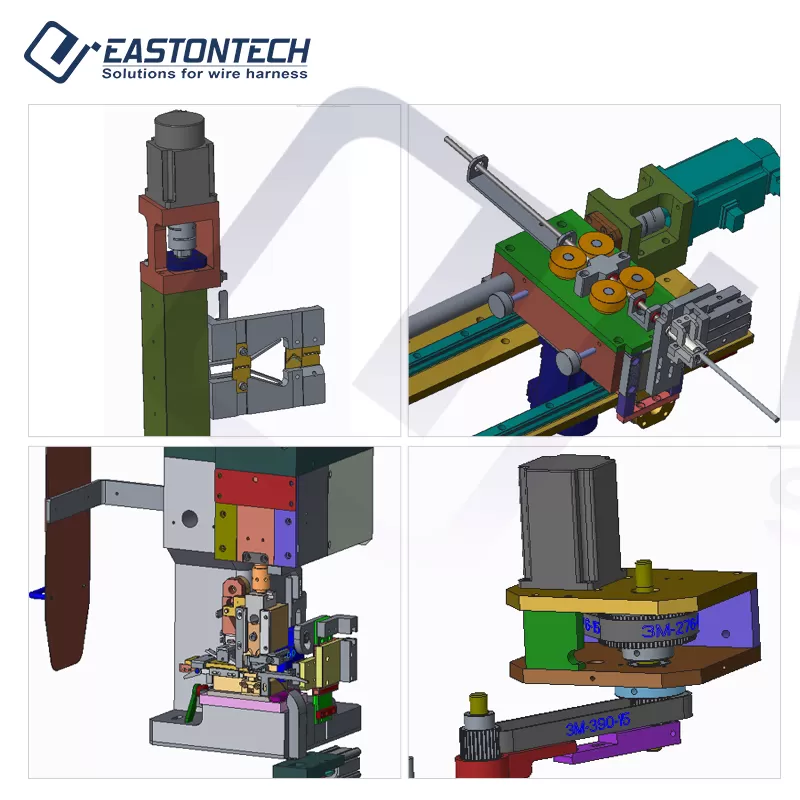

Built with modular flexible design, this machine adapts easily to various product requirements. Each functional module can be independently controlled through the program interface, allowing operators to customize processing workflows and enable seamless product transitions without machine downtime.



Specifications of EW-9365

Model	EW-9365
Stripping length of the outer sheath	wire head 30~160mm, wire tail 30~65mm
Shrink tube cutting length	15mm-40mm
Suppress ability	2T
Air pressure	0.5~0.8Mpa
weight	600kg
Appearance size	L1450 W900 H 1900
power supply	AC220/110V/50/60Hz
Capacity	650pcs/hour (Eight-core wire: L=500mm, double layer stripping, crimp 16 terminals, and insert heat shrink tubing)
Foot pedal start	N/A

Features of EW-9365



LCD Touch Screen

Touch screen can be replace in to with english version.

01


High Precision

High precision, ultra-quiet terminal machine.

02
