Name: EW-9550 Fully Automatic Sheathed Wire Double-end Crimping Terminal Single-Tinning Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

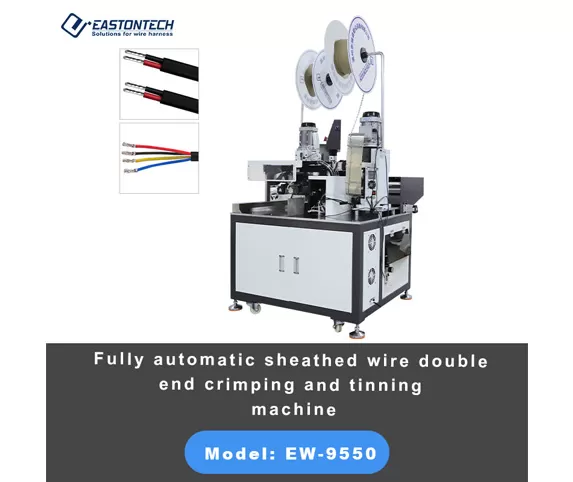

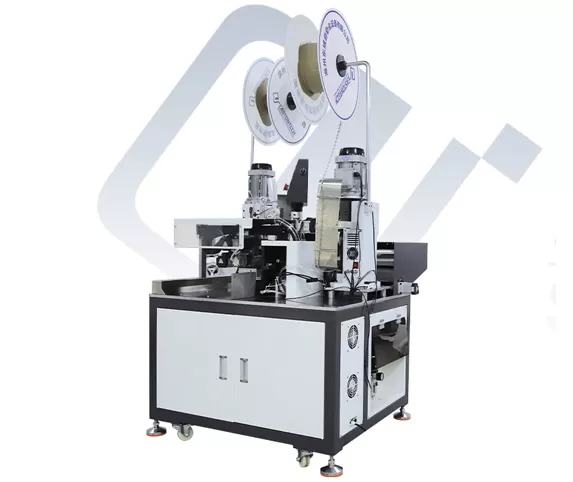

EW-9550 Fully Automatic Sheathed Wire Double-end Crimping Terminal Single-Tinning Machine

This advanced automatic sheathed cable processing machine represents a specialized evolution designed for applications requiring dual-end finishing capabilities. The system performs terminal crimping on one end while applying wire twisting and tinning on the opposite end, delivering complete cable assemblies in a single automated operation.

Engineered specifically for sheathed cable applications, this machine executes a comprehensive processing sequence including wire cutting outer sheath removal, conductor stripping, followed by precise terminal attachment on one side and wire twisting with tinning application on the other. This dual-functionality approach eliminates multiple handling steps and ensures consistent assembly quality.



Specifications of EW-9550 Fully Automatic Sheathed Wire Double-end Crimping Terminal Single-Tinning Machine

Model	EW-9550
Power supply	AC 220V/50HZ

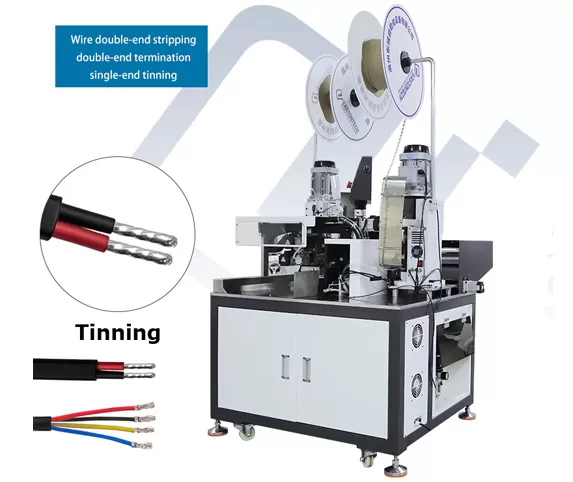

Main functions	Wire cutting, double-end stripping, double-end termination, single-end tinning
Front peeling length	18mm-80mm (taking 2 cores as an example)
Length of front stripped wire	1mm-15mm
Rear peeling length	0mm-100mm (end size 28 or above (2 cores as an example)
Length of stripped wire	1mm-15mm

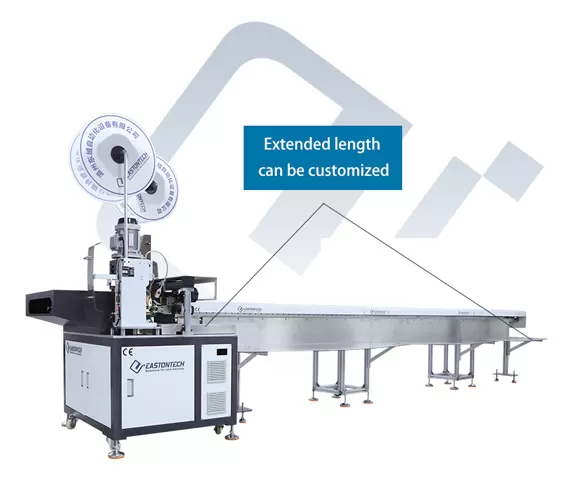

Cutting line length	80mm-1000mm (extended length can be customized)
Processable wire range	OD:2.0mm-6.5mm
Equipment capacity	400 cycles/hour OD: 5.0 or less (2-4 core): 1200 pcs/hour; 5.0-5.5 or less (5-7 core): 800 pcs/hour; 5.5-6.5 or less (7-10 core): 400 pcs/hour
Air pressure	0.5-0.7Mpa
Air pressure monitoring	Air pressure detection alarm
Motor	9 sets of Leadshine servo motors
Control system	Independently developed control board
Pneumatic components	AirTac 14 sets
Solenoid valve	Domestic 12-position solenoid valve
Screw/Guide Rail	Furet 1 set/Furet 3 strips
Module KK	Hu Lei 4 sets
Belt	American Gates
Bearing	Japan NSK
Blade	high speed steel
Body size and weight	24001100mm1500(lengthwidthheight) 550Kg

Features of EW-9550 Fully Automatic Sheathed Wire Double-end Crimping Terminal Single-Tinning Machine



Secure Cable Production

The machine's special feature is a safety light curtain that creates a virtual barrier around hazardous areas operating the machine is therefore easier than ever, as there is excellent visibility of the process and no physical barriers hinder the workflow.

01


Rear End Wire Fixed Length Mode

It solves the long-standing problem ofsoft wire feeding being difficult and unstable, and can accurately cut and strip wires, and store wires neatly.

02


Applicator Mold

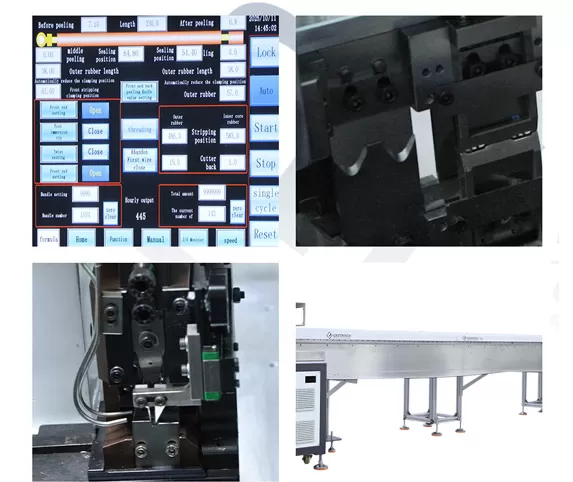

Quick and easy for applicator change; Precision wire cutting stripping and crimping; Full servo screw,high precision,improve efficiency, stable performance.

03
