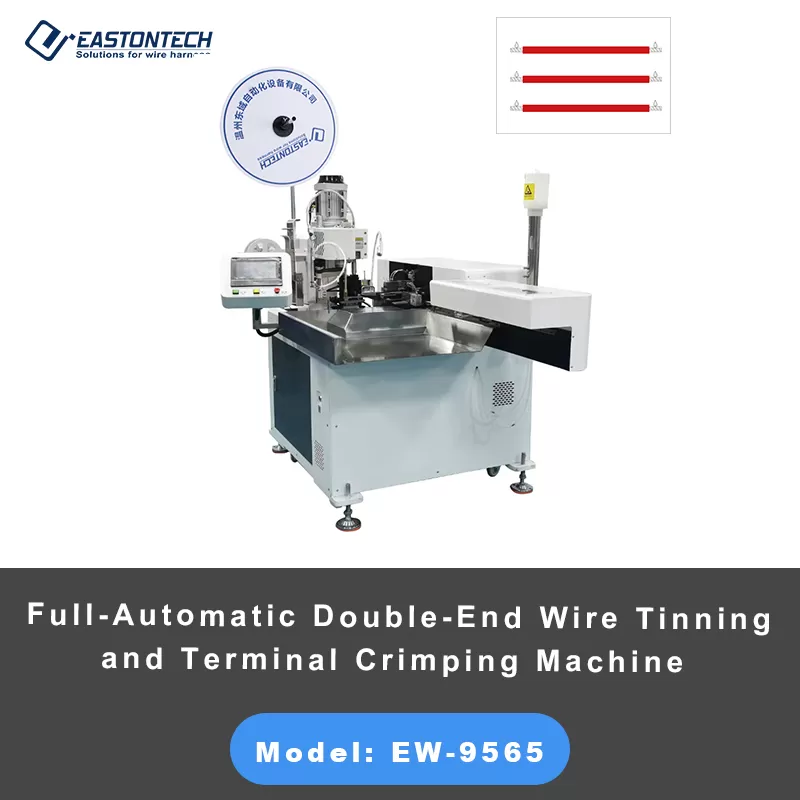

Model | EW-9565 |
weight | 480kg |
Dimensions | L1750*W1220*H1550mm |
Placement space | 4 square |
power | Within 3000W |
power supply | AC220/50Hz |
Air pressure | 0.4mpa-0.8mpa |

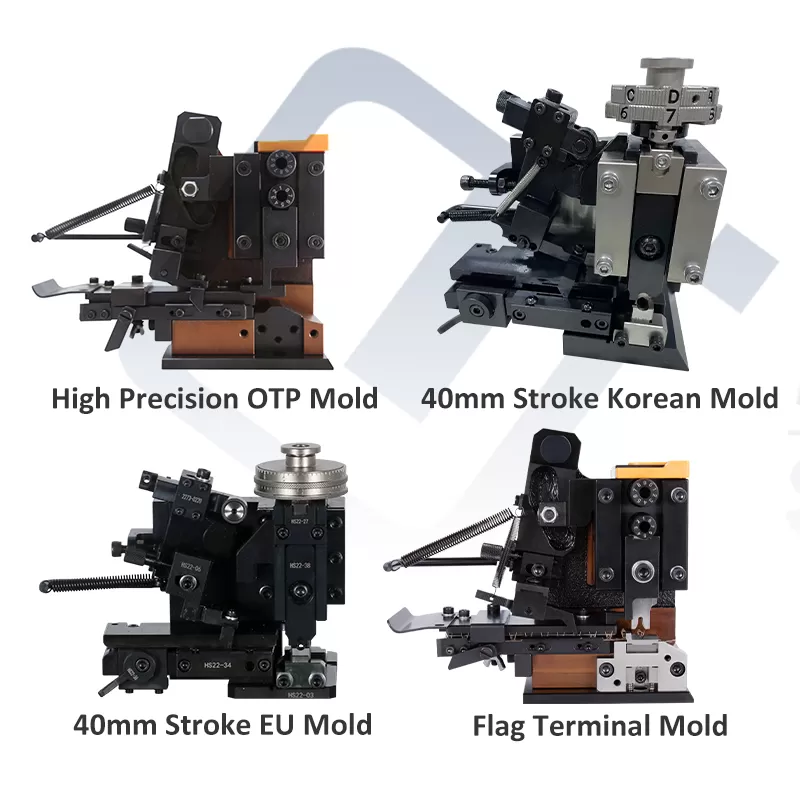

Crimping capacity | 2T |
Display | Touch screen LCD |
Applicable wire | Electronic wire, electronic wire, etc. |
Parallel production capacity | 800-1000 times*number of items |
Electronic wire dipping capacity | Time limit 1000 to 1300 times*number of items |
Double-dip production capacity | According to 100mm length, it is about 1100-1300 times/h |
Cutting length | Double dip within 830mm , single dip 45-830mm |
Peeling length | The standard machine has a front and rear blade distance of 12mm and a complete rubber removal capacity of 9mm. |
Applicable wire diameter | 26#-18# |

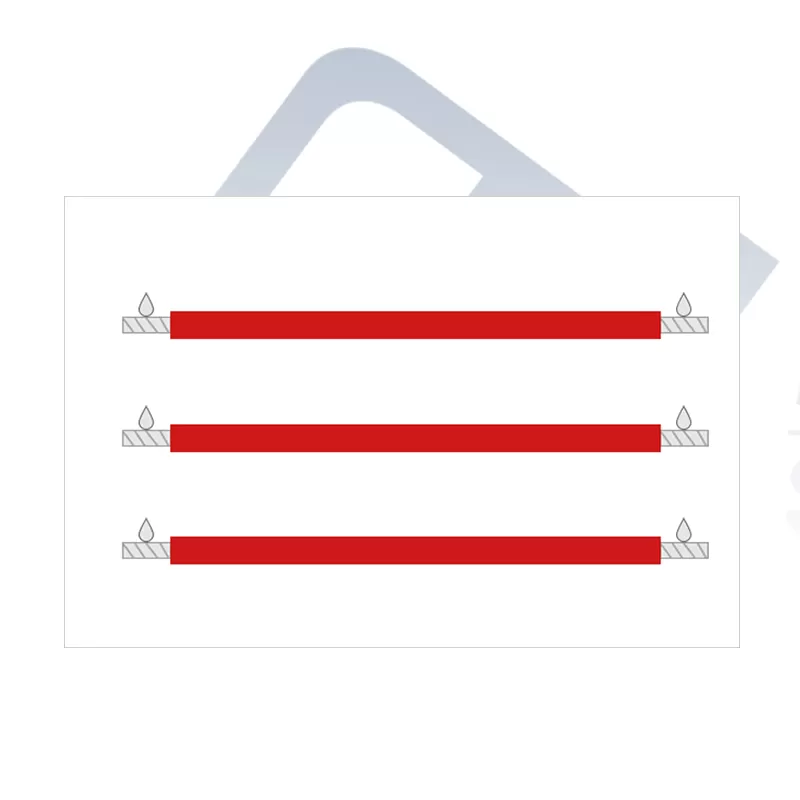

Tinning length | within 11mm |
Twisted wire length | Marking machine 2mm-10mm |
Rewinding mode | Rotating pay-off |
transmission | Screw, guide rail, synchronous belt |
Detection | End detection, missing wire detection, wire knot detection, paper collection detection, air pressure detection |
Assistive devices | Horizontal and vertical terminal leakage / collection of waste flux / collection of waste tin slag / collection of waste rubber |

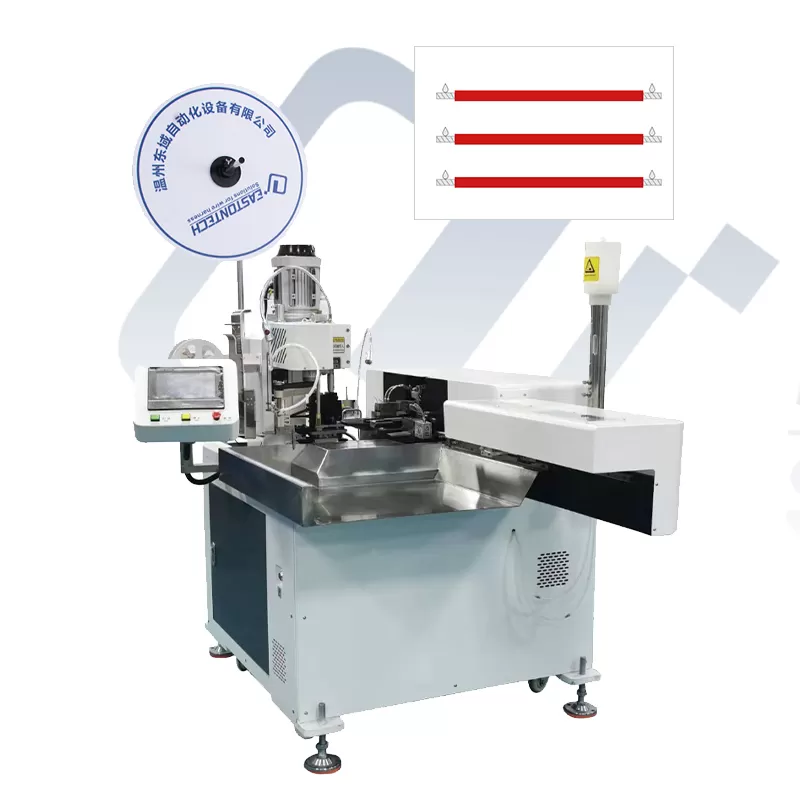

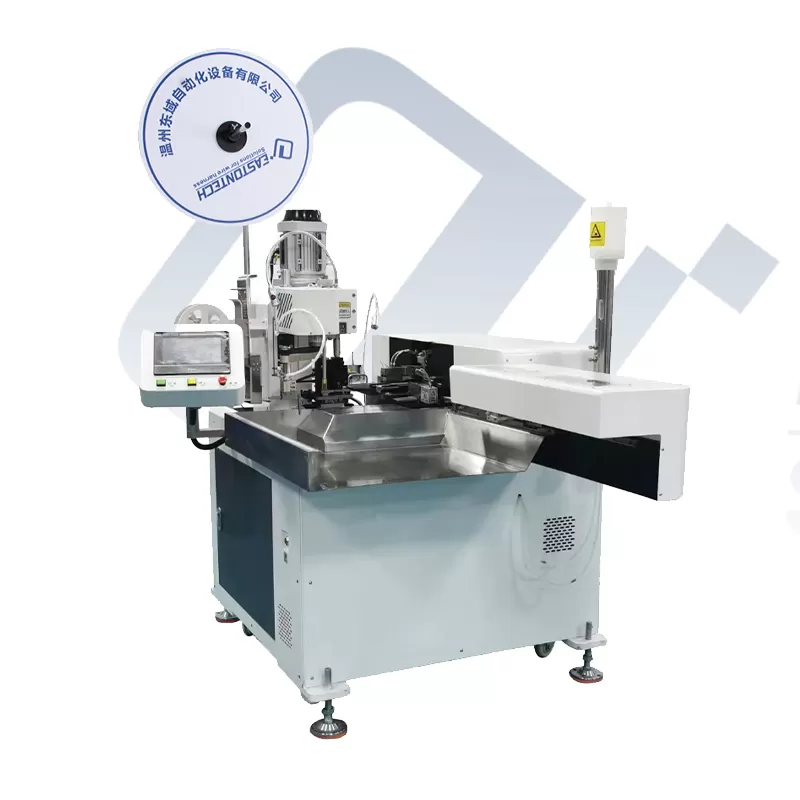

The machine integrates wire cutting, stripping, twisting, tinning, and terminal crimping into a single automated workflow.
This eliminates multiple manual operations and ensures a continuous and stable production process, significantly improving overall productivity.

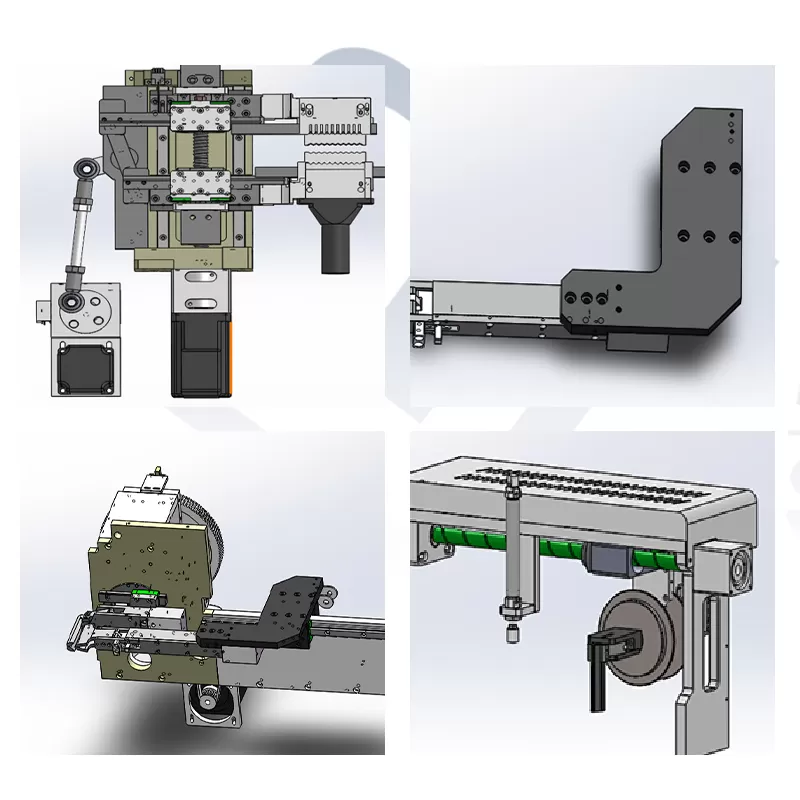

Equipped with multiple servo motors and precision ball screw transmission, the system provides accurate positioning and stable movement control.
This ensures consistent stripping length, precise tinning depth, and reliable crimping quality, even during high-speed operation.
The automatic tin feeding and flux control system guarantees uniform tin penetration and stable soldering results.
It effectively improves conductivity while maintaining a clean and consistent tinning appearance, meeting the quality standards required in modern wire harness production.
The machine features a color touch screen interface with programmable parameters and recipe storage for different wire specifications.
Operators can quickly switch production settings, while built-in monitoring functions such as wire detection, air pressure monitoring, and fault indication ensure safe and reliable operation.
