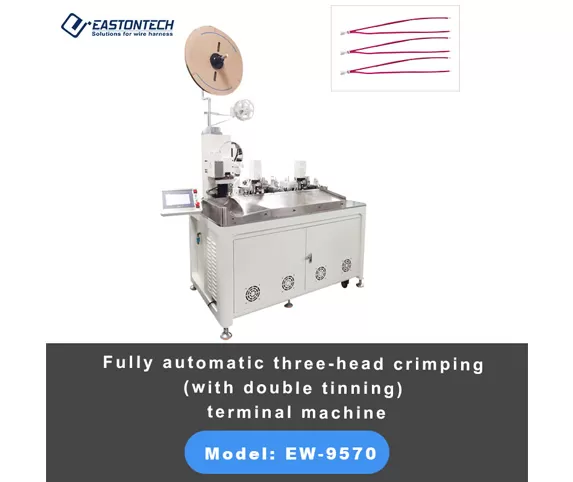

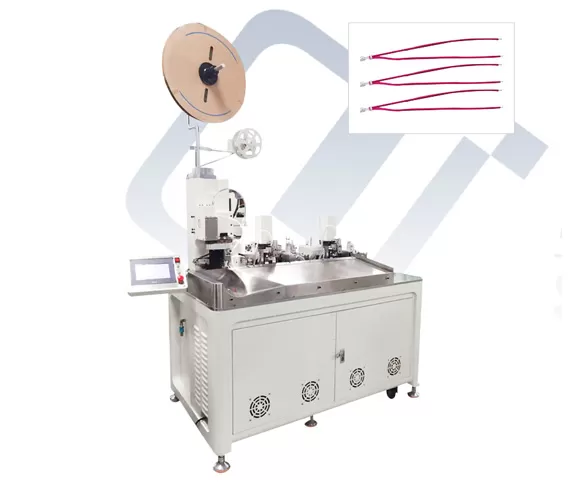

EW-9570 Fully Automatic Three Head Crimping Double Tinning Terminal Machine

This multi-function machine supports both double-end terminal crimping and single-end crimping with tinning on the other end, offering versatile one-machine multiple-use capabilities. By combining the performance of two separate units, it saves floor space and offers excellent cost-effectiveness while maintaining stable, reliable performance for diverse production needs.

Driven by high-precision servo technology, the machine runs with lower noise and energy usage compared to conventional crimping equipment. Its integrated structure enhances stability, ensures consistenit performance, and reduces overall space requirements on the production floor.

Specifications of EW-9570 Fully Automatic Three Head Crimping Double Tinning Terminal Machine

Function	Wire cutting, single-end stripping, double-end stripping, crimping terminals, one-end crimping, half - stripping, twisting and tinning; stripping length/crimping position/knife depth can be adjusted
Processing wires	#30~#16 AWG
Processing capacity	Wire length 50-100 mm about 1200 sets/hour, special wire (ultra - fine soft wire) about 1000 sets/hour
Cutting accuracy	Cable length less than 100mm Error 0.2+(line length x 0.002), Wire length over 100mm Error 0.5+(line length x 0.002)
Processing length	Leave the rubber in the middle 51 mm~9999 9 mm (can be shorter with modification)
Stripping length	Front end 0.5~8.0mm, rear end 0.1~10.0mm
Cutting depth	Maximum adjustment: 5.50mm, resolution: 0.01mm
Detection device	Low air pressure Presence of wires Abnormal pressing Incoming line abnormality
Power supply	Single-phase AC200V~242V 50/60Hz 10A
Compressed air	0.5 MPa (5 kgf/cm2) clean dry gas
Mechanical dimensons	800 14001800mm
Mechanical weight	about 600KG

Features of EW-9570 Fully Automatic Three Head Crimping Double Tinning Terminal Machine



LCD Touch Screen

The host is controlled by motion control card, and the parameters are set on the touch screen in Chinese and English, with short adjustment time and easy operation.

01


Applicator Mold

Suitable for horizontal and direct feed OTP terminal molds.
