Name: EW-9590
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

EW-9590

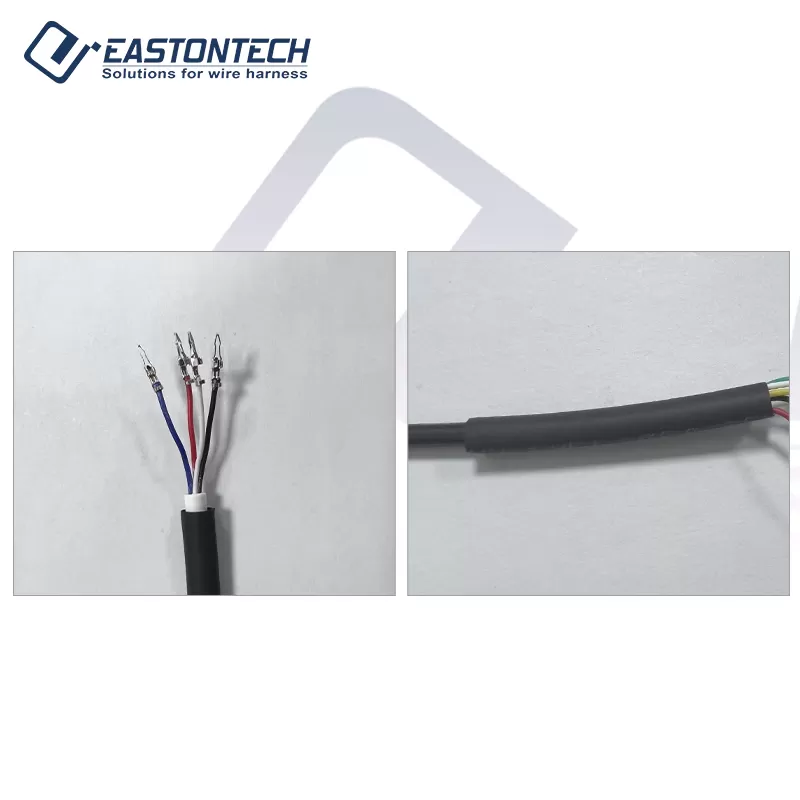

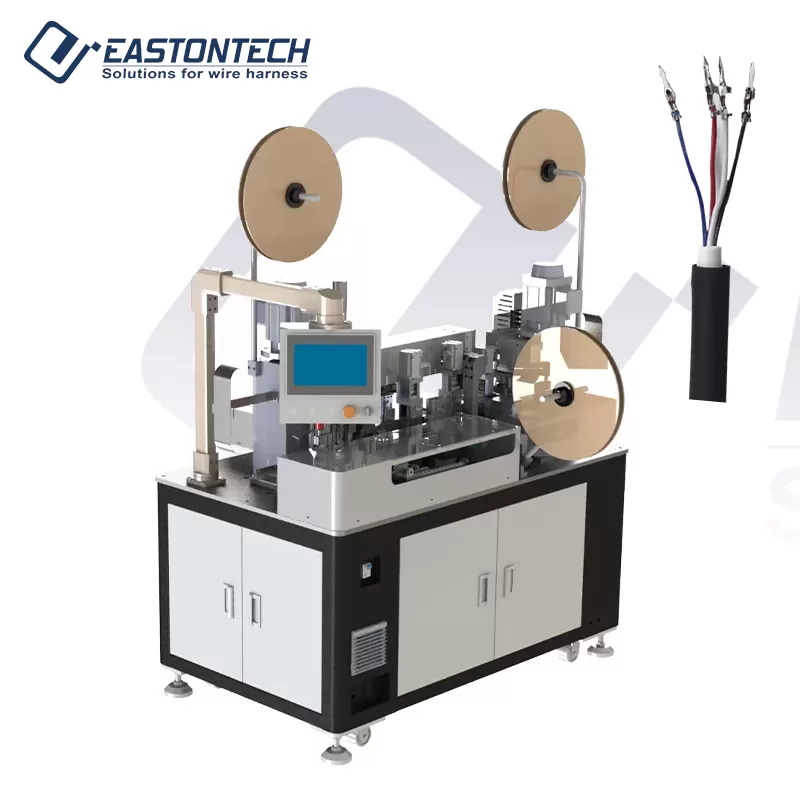

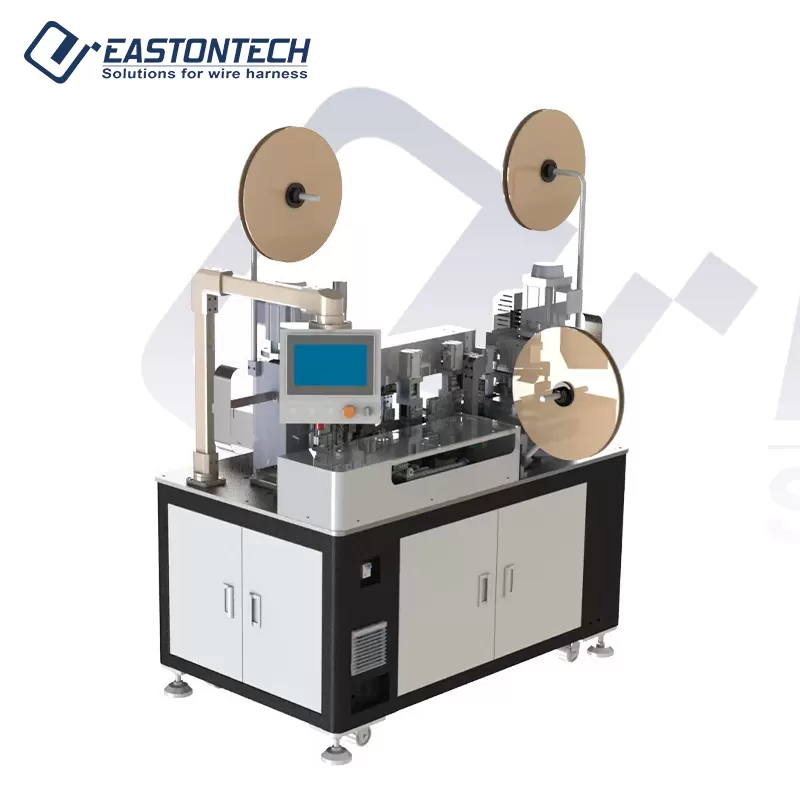

This advanced multi-core cable processing machine handles 2-13 core sheathed wires with integrated heat-shrinkable tube functionality. The system combines wire cutting, jacket stripping, core wire stripping, terminal crimping, and heat shrink tube insertion in a single automated process, significantly reducing manual labor and enhancing production efficiency.

Built with modular flexible design, this machine adapts easily to various product requirements. Each functional module can be independently controlled through the program interface, allowing operators to customize processing workflows and enable seamlessproduct transitions without machine downtime.

Specifications of EW-9590

Model	EW-9590
Applicable wire range	Inner core wire: AWG 20-28 (specific size depends on the material) Outer sheath diameter: 2.0mm-6.5mm
Stripping length	Outer sheath:30-120mm,Inner core:1-8mm
Cutting length	150-9999mm
Capacity	Without heat shrink tubing, 800-900 pcs/h (subject to actual production);Two heat shrink tubing,650pcs/h.
Air pressure	0.4-0.6Mpa
Function	Automatic multi-core wire cutting, outer/inner sheath stripping, heat shrink tubing cutting, heat shrink tubing fitting, and terminal crimping.
Power	220V/50HZ
Weight	600Kg
Dimension	15008001600mm
Air pressure monitoring	Air pressure detection alarm

Features of EW-9590



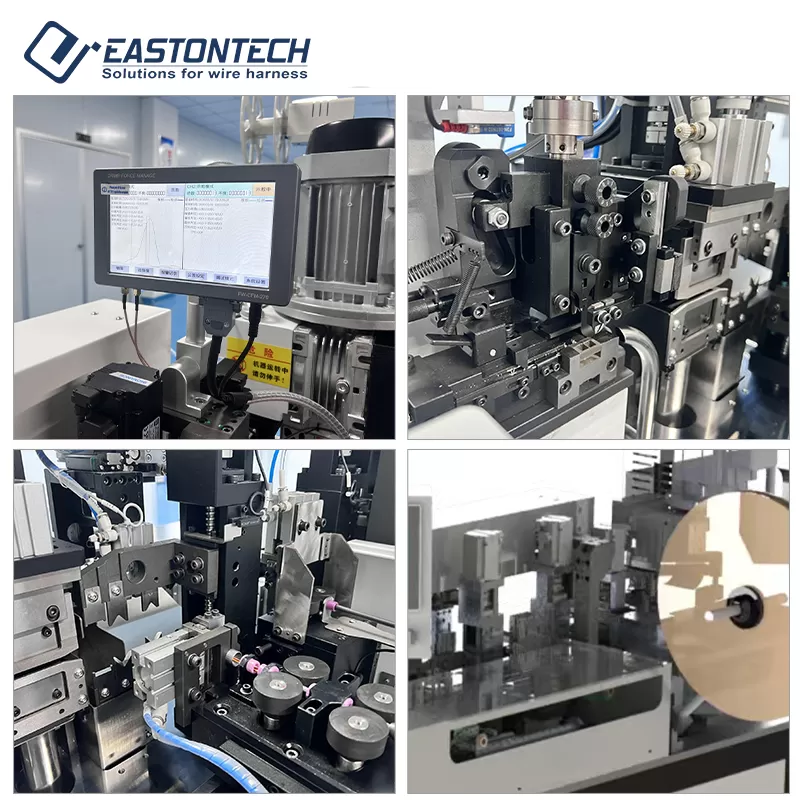

CFM

Standard configuration includes a dual-channel CFM that immediately alarms and shuts down in case of poor crimping.

01


Mold Separation

Our self-developed mold splitting mechanism makes terminal crimping more stable.

02


Servo Motor

Servo-driven wire feeding structure, stable and fast, higher production capacity.

03
