Name: EW-9595 Fully Automatic Three Head Crimping Double Tinning Terminal Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

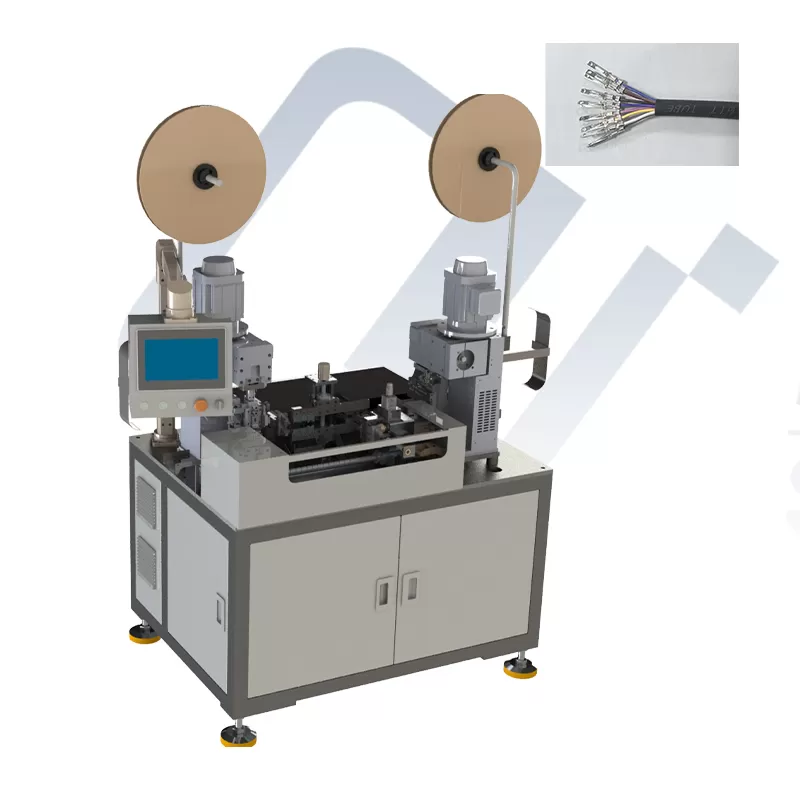

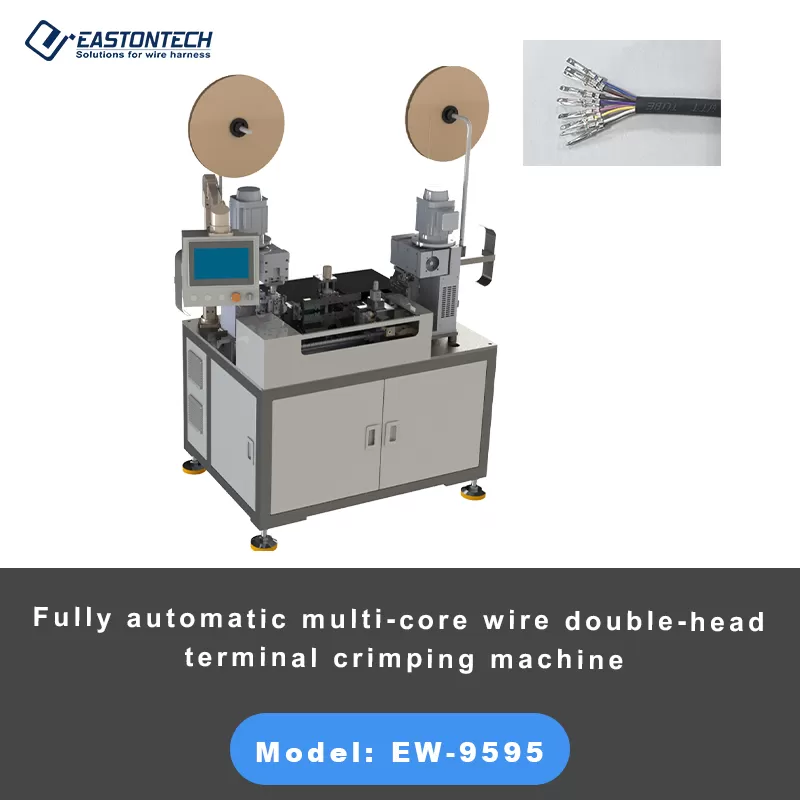

EW-9595 Fully Automatic Three Head Crimping Double Tinning Terminal Machine

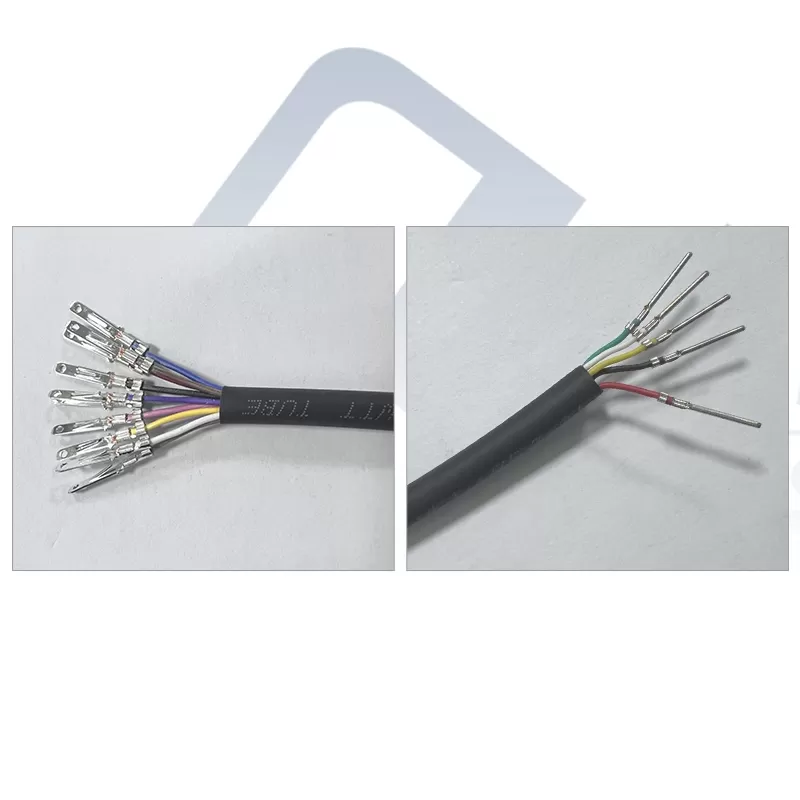

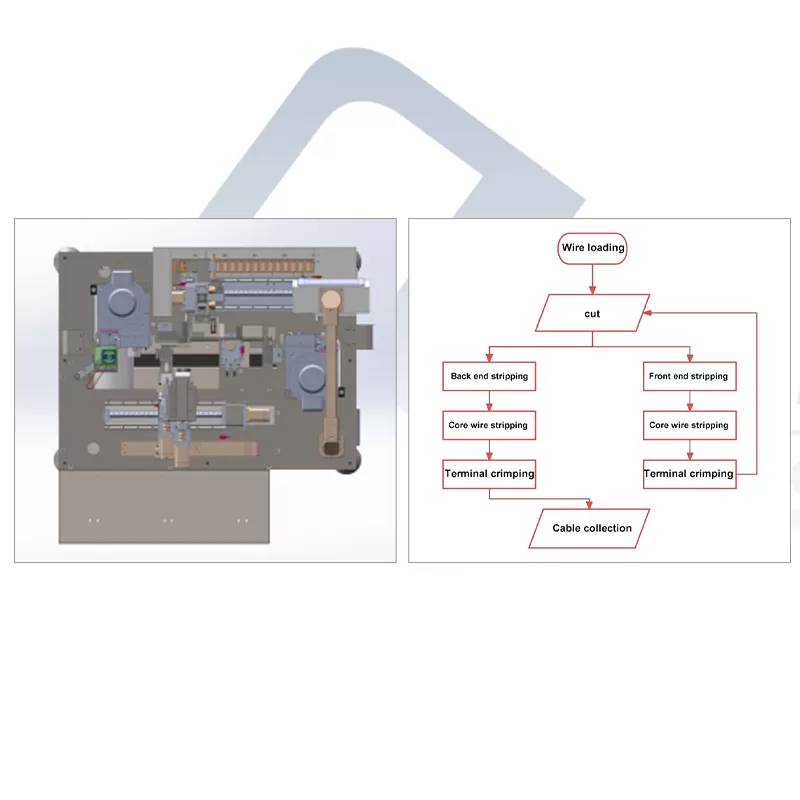

This advanced multi-core cable processing machine handles 2-13 core sheathed wires. The system combines wire cutting, jacket stripping, core wire stripping and terminal crimping, in a single automated process, significantly reducing manual labor and enhancing production efficiency.

Built with modular flexible design, this machine adapts easily to various product requirements. Each functional module can be independently controlled through the program interface, allowing operators to customize processing workflows and enable seamlessproduct transitions without machine downtime.

Specifications

Model	EW-9595
Applicable wire range	2.0-7.5mm
Outer sheath stripping length	Front:0-90mm,Back:0-60mm
Inner core stripping length	Front:1-15mm,Back:1-15mm
Capacity	600 cycles/hour
Cutting length	80-9999mm
Function	Automatic multi-core wire cutting, outer/inner sheath stripping, and terminal crimping.
Power	220V/50HZ
Air pressure	0.4-0.6Mpa
Weight	400Kg
Dimension	13009001800mm

Features



Servo motor

Servo-driven wire feeding structure, stable and fast, higher production capacity.

01


Stable and efficient

High stability, strong versatility, and simple operation

02


Applicator Mold_copy20260402151501

Suitable for horizontal and direct feed OTP terminal molds.

03
