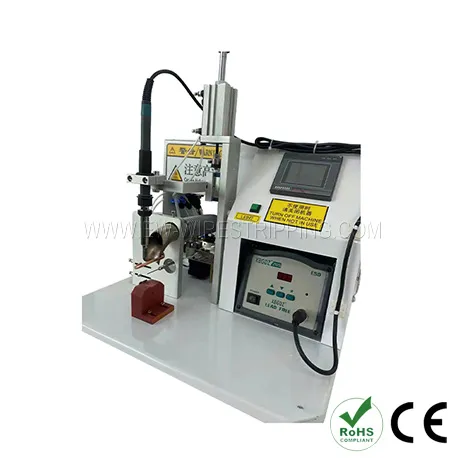

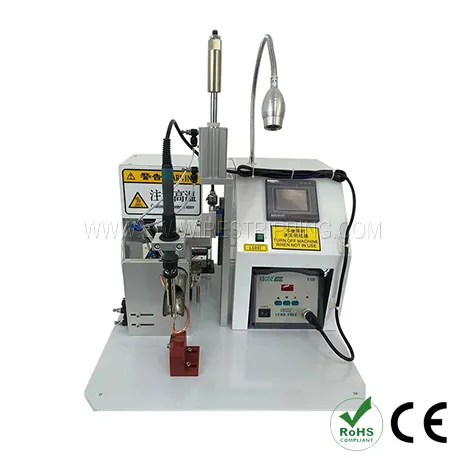

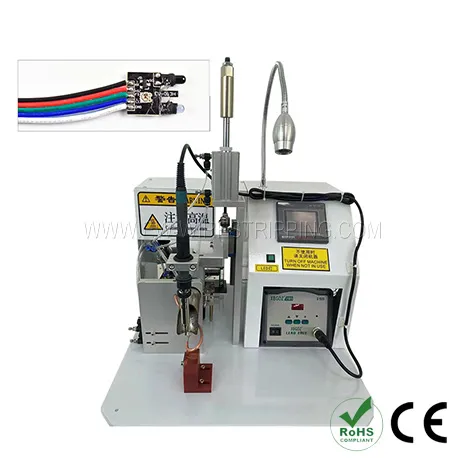

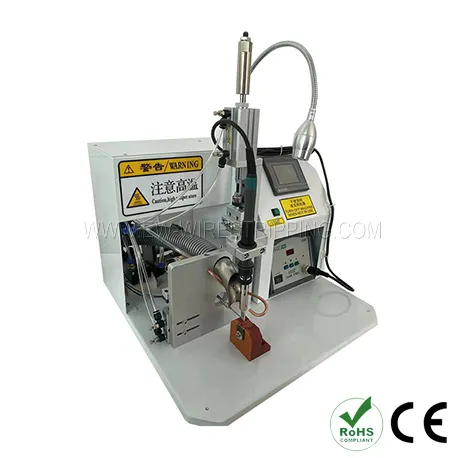

EW-6020 Semi-Automatic Multi Wire Soldering & WeldingMachine(Pneumatic / Electric Drive)

Aftermarket automotive wiring accessories - trailer connectors, tow bar wiring, andaccessory power distribution blocks - use multi-wire solder splice construction. Thepneumatic EW-6020's production-rate capability (versus manual iron soldering) suits thesemi-batch production volumes of automotive accessory wiring assembly lines.

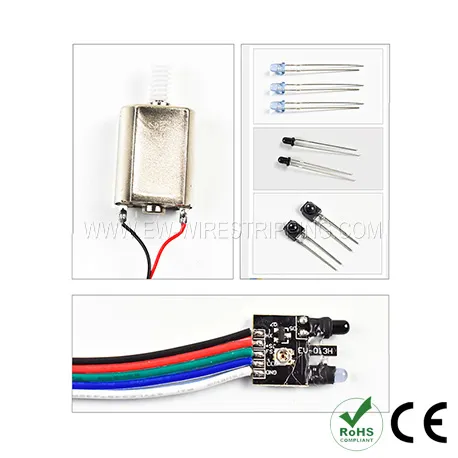

Internal wiring in industrial sensors, instrumentation, and control devices frequently uses smallmulti-wire solder joints at junction points that would require a dedicated crimping fixture ifcrimped. The EW-6020's compact bench footprint and interchangeable tip design make itsuited to the varied connector geometry typical of low-to-medium volume electronics sub-assembly environments.

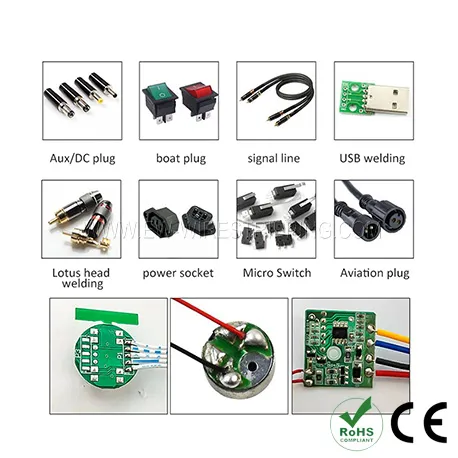

Board-to-wire and wire-to-wire connector assemblies where terminals are soldered ratherthan crimped - common in audio, measurement, and bespoke industrial equipment - usethe EW-6020 with an appropriate tip geometry matched to the terminal pocket dimensions.The electric EW-6020-1 variant's finer stroke control is preferred for small-pitch connector terminal soldering where precise head positioning is required.

Multi-wire splice joints - where two or more wire conductors are soldered together to form a branched connection in a harness - are the primary application for the EW-6020. The machine's controlled dwell time and consistent head pressure produce splice joints with uniform solder fill and no cold joint areas, meeting the solder joint quality requirements of IPC/WHMA-A-620 Class 2 and Class 3 harness assembly.
