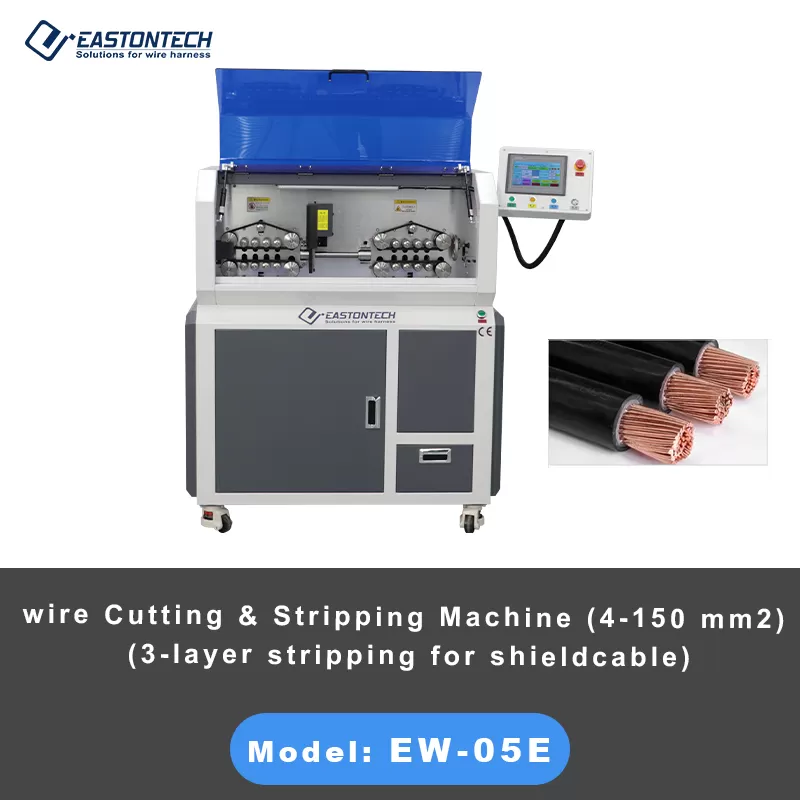

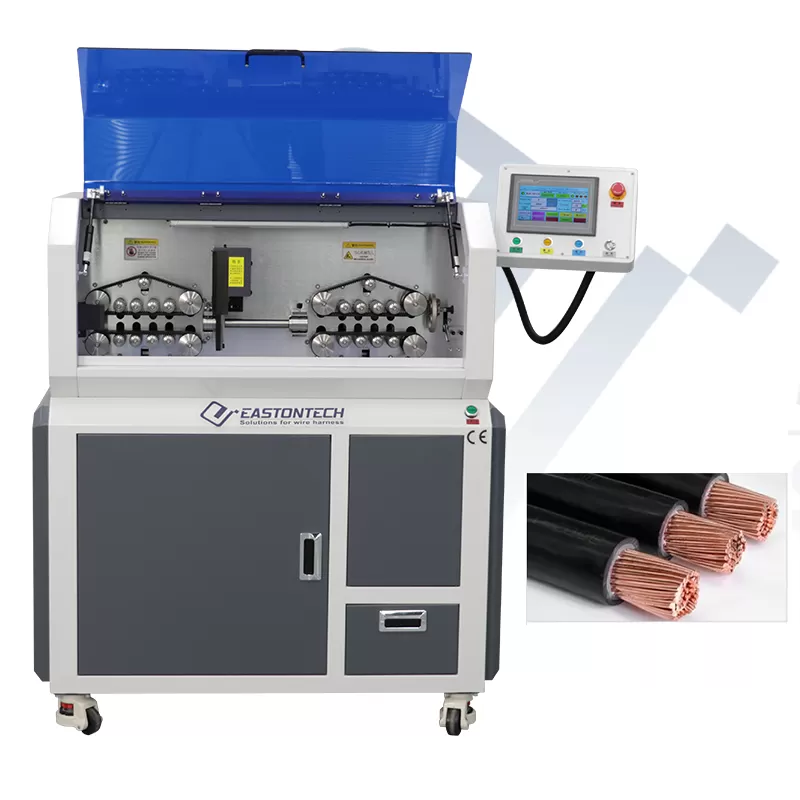

Model | EW-05E |
Stripping capability | 3-layer stripping for shield cable |
Conduit tube size | Inner 10/15/20/26/32mm |
Conductor cross-section | 4 - 150 mm² |
Cutting length | 1 - 500,000 mm (can be customized) |
Air pressure | 0.4-0.6Mpa |
Stripping length (side I) | 0 - 500 mm |
Stripping length (side II) | 0 - 250 mm |
Maximum guide tube diameter | 32 mm |
Min intermediate retention length | 70mm |
Display mode | 7-inch touch screen |
Memory capacity | 200 programs |
Foot pedal start | N/A |
Productivity | 600 - 1000 pcs./h |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | 1500 W |
Weight | 270 kg |
Dimension | 1080 * 650 * 1200 mm |

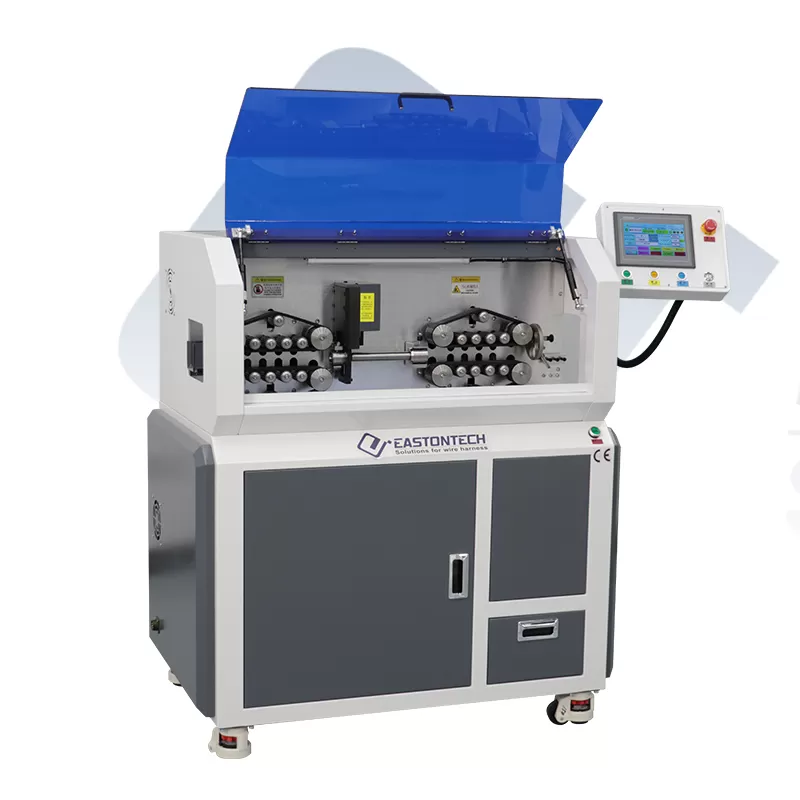

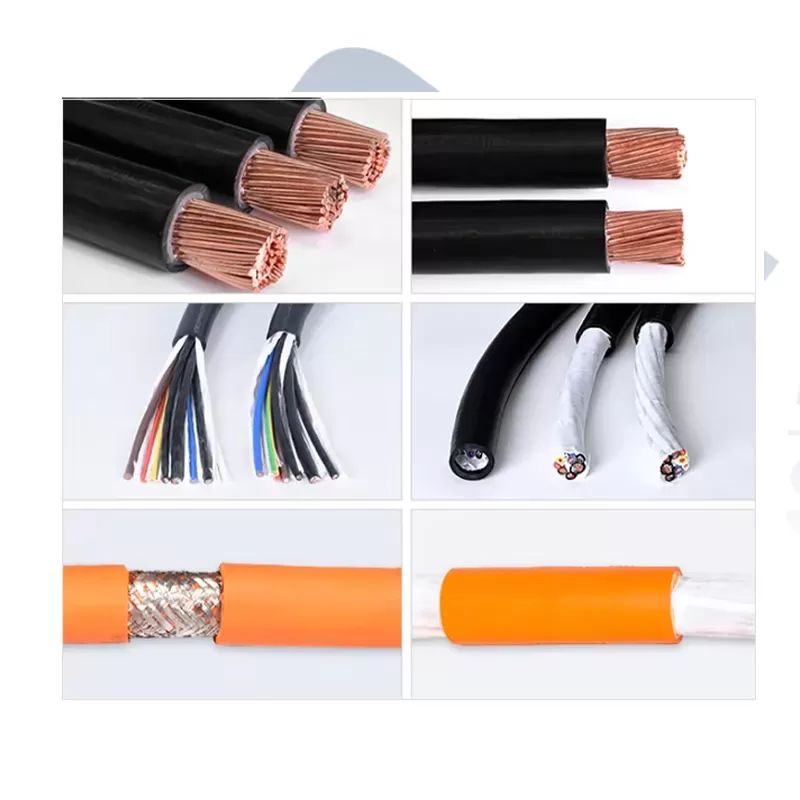

Engineered to tackle the complexities of new energy high-voltage cabling. The EW-05E delivers precise, multi-stage stripping for outer jackets, braided shielding, and inner insulation layers in a single cycle, ensuring zero degradation to the inner conductor cores.

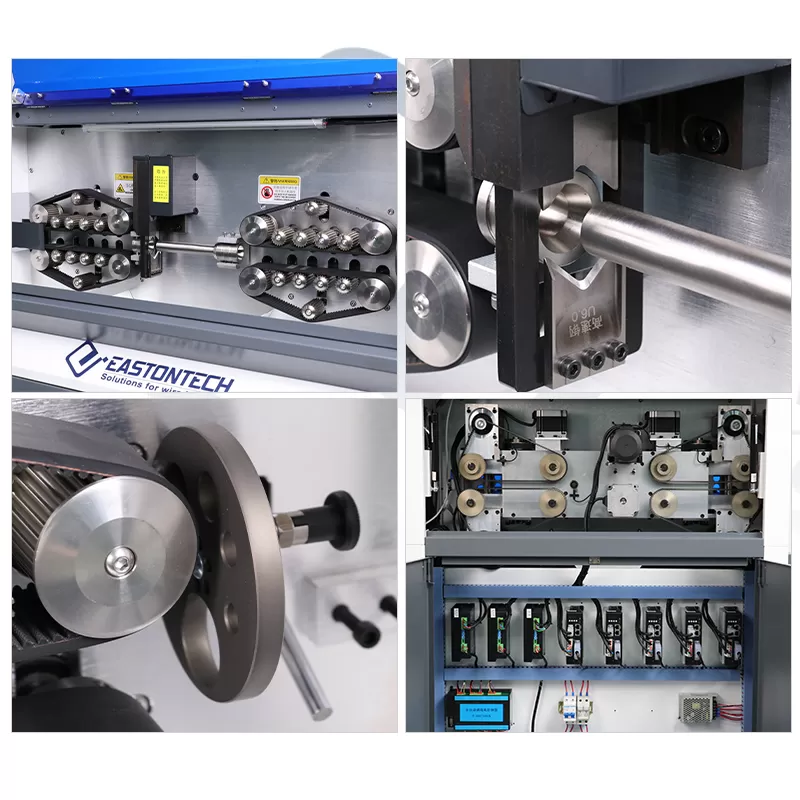

Equipped with a synchronized 28-wheel feed mechanism that guarantees continuous, slip-free material transport. This high-traction drive configuration prevents cable deformation while ensuring smooth cutting and stripping consistency for heavy, large-diameter power cables.
Featuring premium, wear-resistant standard tungsten steel blades designed for prolonged high-intensity production runs. The sharp V-blade geometry delivers pristine, burr-free cuts across tough insulation materials, significantly minimizing tool downtime and replacement costs.

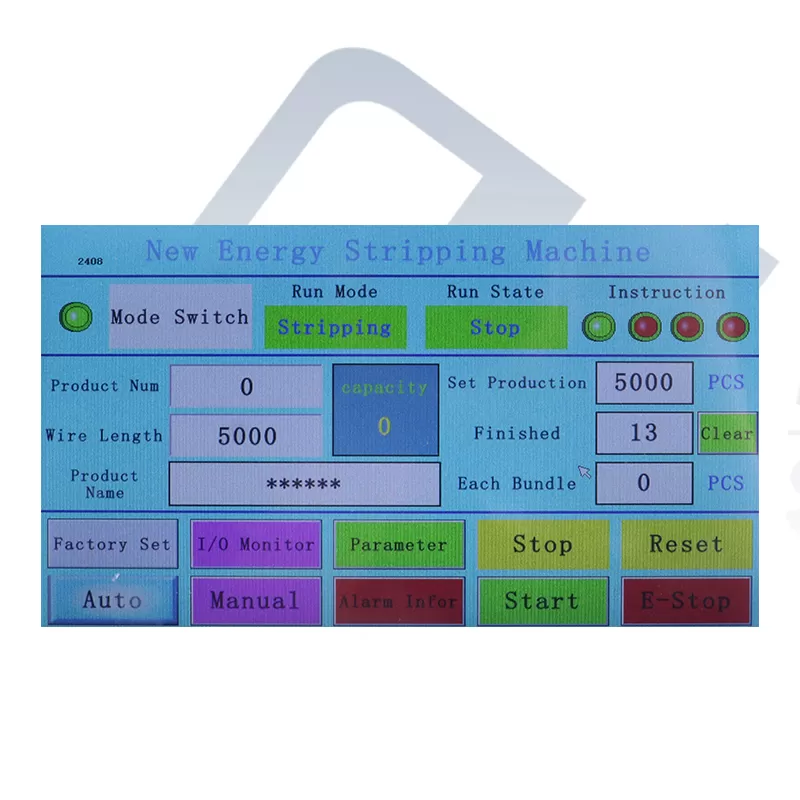

Driven by an intuitive, user-friendly 7-inch color touch interface capable of storing up to 200 custom processing programs. Operators can switch between different wire specifications and production modes in seconds, drastically reducing setup times and maximizing OEE (Overall Equipment.
