Model | EW-05F+1 |
Conductor cross-section | 0.75 - 30 mm² |

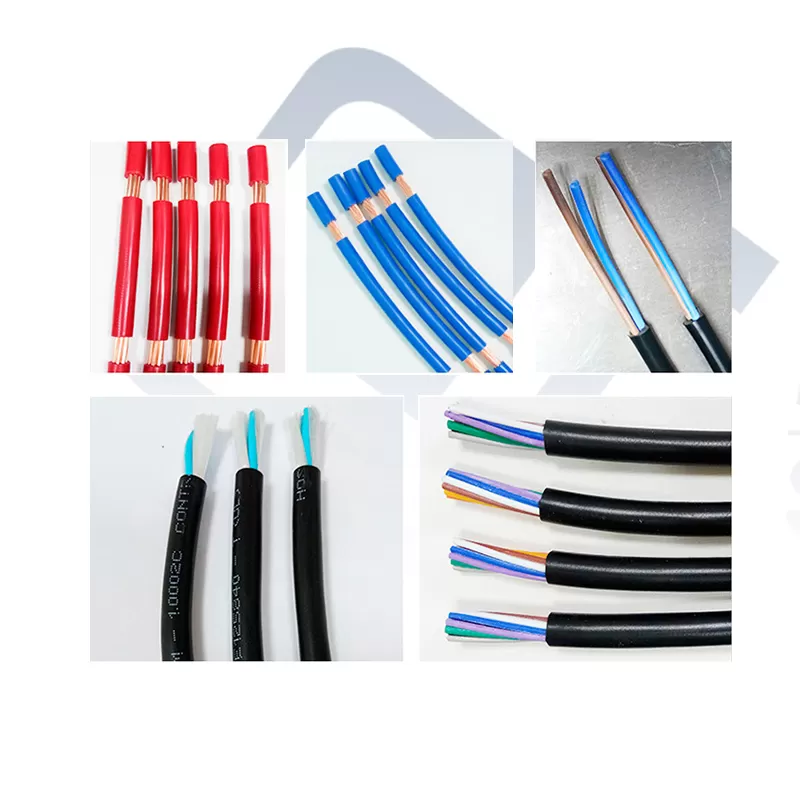

Cable | Single core cable, Multi-conductor cable, Sheathed cable, PVC cable etc. |
Core wire stripping | 2-10 cores |
Cutting length | 1 - 999,999.9 mm |
Cutting length tolerance | < 0.002 * L (L = cutting length) |
Stripping length (side I) | Cable jacket - Full strip: 10 - 200 mm Core wire - Full strip: 1 - 50 mm |
Stripping length (side II) | Cable jacket - Full strip: 10 - 80 mm Core wire - Full strip: 1 - 50 mm |
Maximum guide tube diameter | 18 mm |
Productivity | 3500 pcs./h |
Blade material | Imported high speed steel |
Display mode | 7-inch touch screen |
Driving mode | Servo motor cutting with 16 roller driving system |
Feeding mode | Belts feeding with pressure stripping function. |
Roller Gap | Digital program control |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | 1.1 kW |
Compressed air connection | 0.5 - 0.7 MPa |
Weight | 140 kg |
Dimension | 707 * 590 * 1140 mm |
Remarks | Custom options by sending samples |

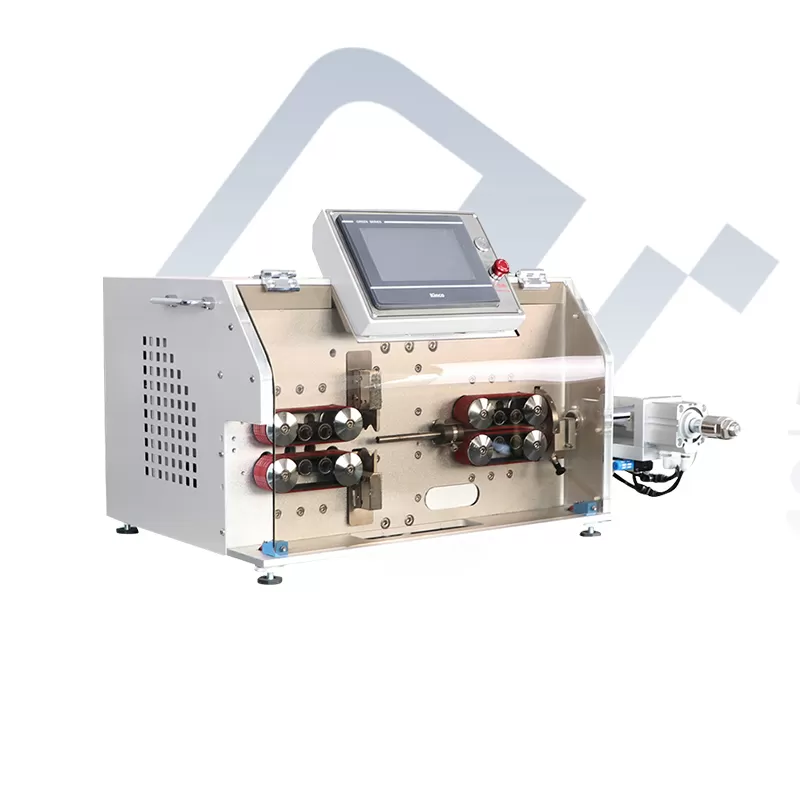

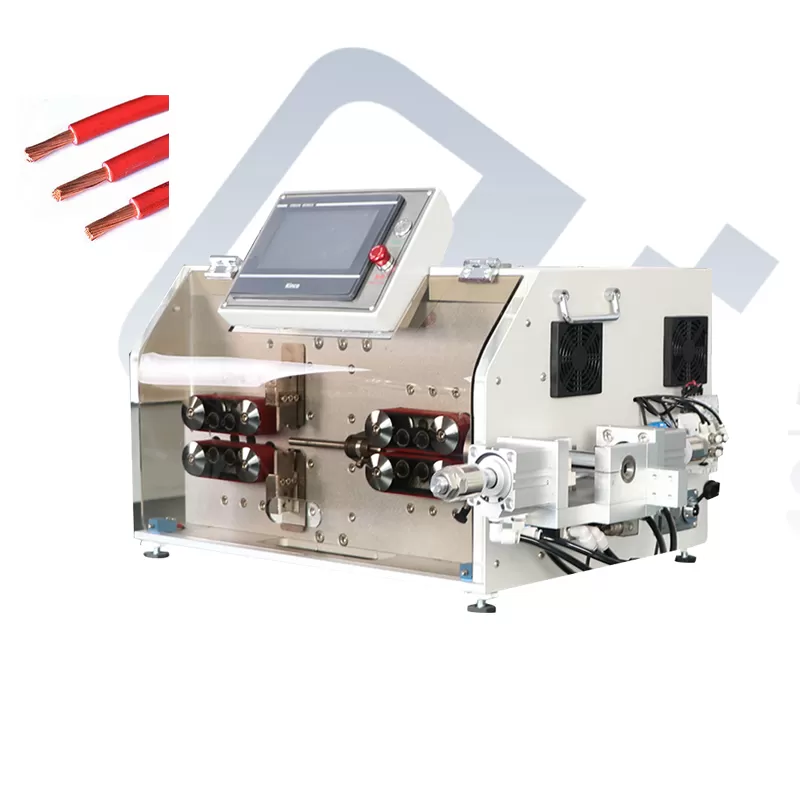

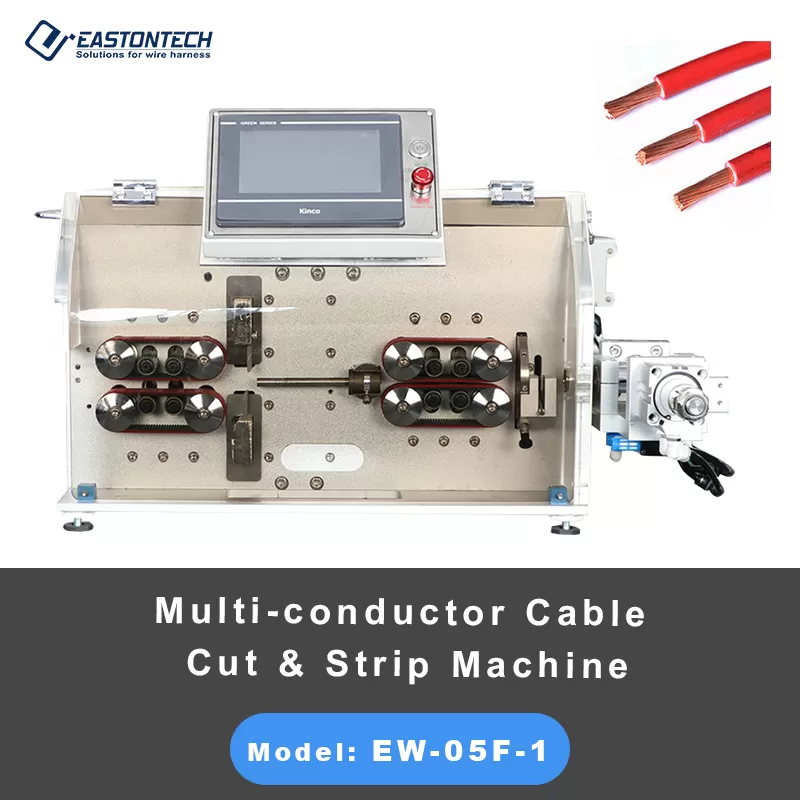

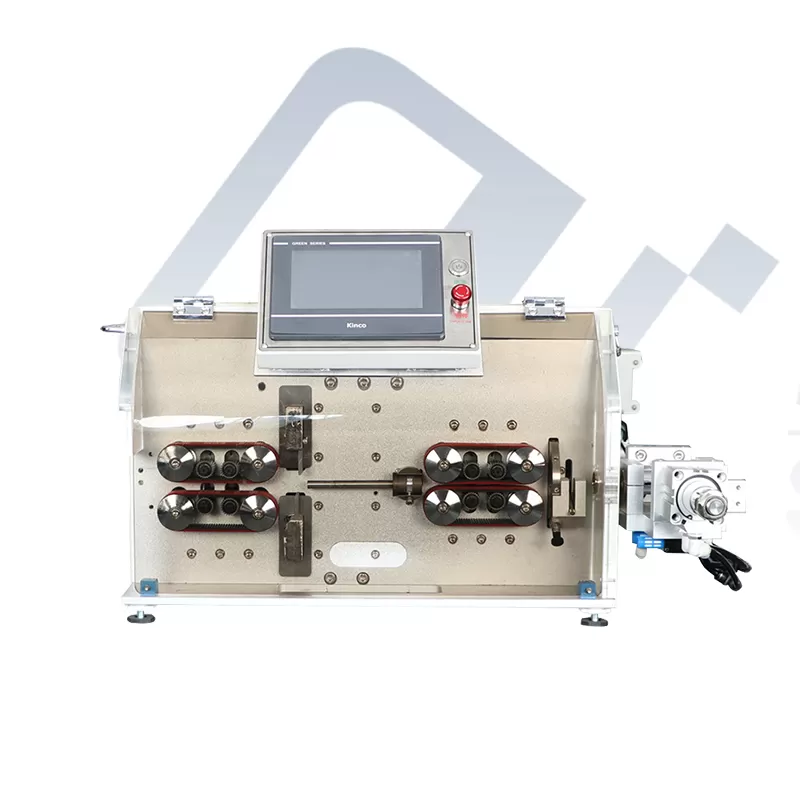

Equipped with an advanced 16-roller driving mechanism coupled with belt feeding, the EW-05F+1 delivers enhanced feeding traction and consistent linear stability. This specialized configuration guarantees ultra-precise feeding lengths with 0.1 mm incremental adjustments, completely eliminating physical indentations or scratch marks on delicate wire insulation and outer jackets.
Engineered for uncompromising processing versatility, the machine features a dual-blade system featuring Uni-V jacket stripping blades and Uni-flat core wire blades. This separate station setup allows seamless full-stripping of outer jackets up to 200 mm and inner core wires up to 50 mm, accommodating up to 11 core wires simultaneously with optional radius and teeth blades available for specialized rubber or rigid insulation materials.

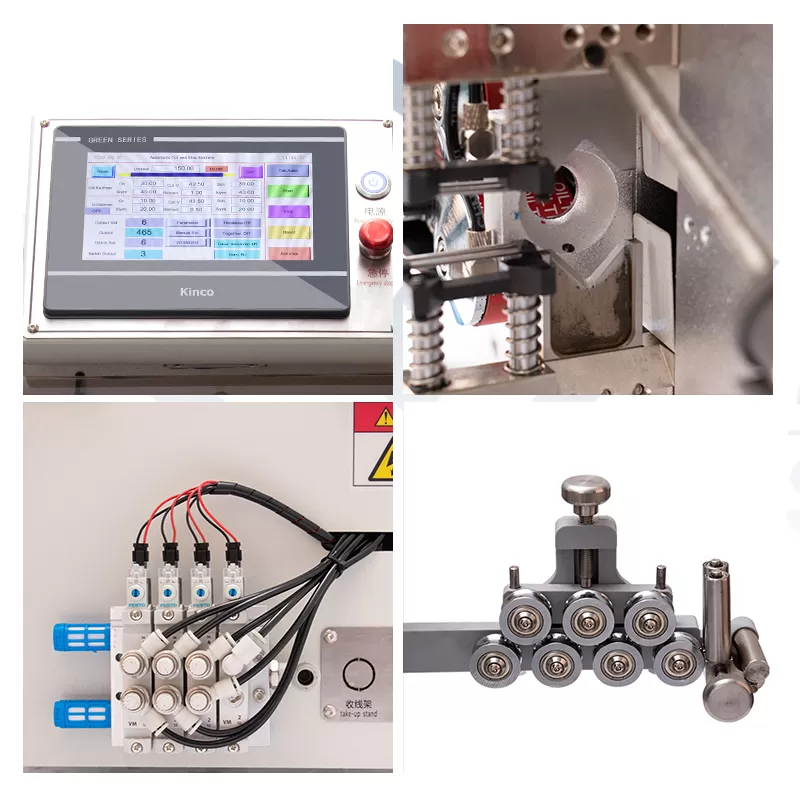

Say goodbye to tedious mechanical calibrations. Through the intuitive 7-inch PLC touch screen, operators can digitally program and auto-adjust the roller gap and roller pressure setup instantly. This smart HMI integration drastically reduces changeover times between different cable cross-sections (0.75 - 30 mm²), preventing human error and maximizing production uptime.
Built for high-stamina manufacturing environments, the EW-05F+1 features a comprehensive safety guarantee system, including auto-stop functions for open safety guards or material depletion, alongside intelligent error reporting. Furthermore, its future-proof modular architecture seamlessly integrates with add-on factory automation options, including pre-feeders, middle-stripping modules, industrial control systems (ICS), and inline ink-jet printers.
