Model | EW-05F+ | EW-05F+S |
Conductor cross-section | 0.75 - 30 mm² | |
Cable | Single core cable, Multi-conductor cable, Sheathed cable, PVC cable etc. | |
Core wire stripping | 2-10 cores | N/A |
Cutting length | 1 - 999,999.9 mm | |
Cutting length tolerance | < 0.002 * L (L = cutting length) | |
Stripping length (side I) | Cable jacket - Full strip: 10 - 200 mm - Half strip: 1 - 800 mm Core wire - Full strip: 1 - 50 mm - Half strip: 5 - 200 mm | Full strip: 10 - 200 mm Half strip: 1 - 800 mm |
Stripping length (side II) | Cable jacket - Full strip: 10 - 80 mm - Half strip: 1 - 300 mm Core wire - Full strip: 1 - 50 mm - Half strip: 5 - 80 mm | Full strip: 10 - 80 mm Half strip: 1 - 300 mm |
Maximum guide tube diameter | 18 mm | |
Productivity | 2000 pcs./h 900 pcs./h (multi-conductor cable) | 2000 pcs./h |
Blade material | Imported high speed steel | |
Display mode | 7-inch touch screen | |
Driving mode | Servo motor cutting with 16 roller driving system | |
Feeding mode | Belts feeding with pressure stripping function. | |
Roller Gap | Digital program control | |
Power supply | 110, 220 V (50 - 60 Hz) | |
Power | 1.1 kW | |
Compressed air connection | 0.5 - 0.7 MPa | |
Weight | 95 kg | |
Dimension | 680 * 605 * 520 mm | |
Remarks | Custom options by sending samples | |

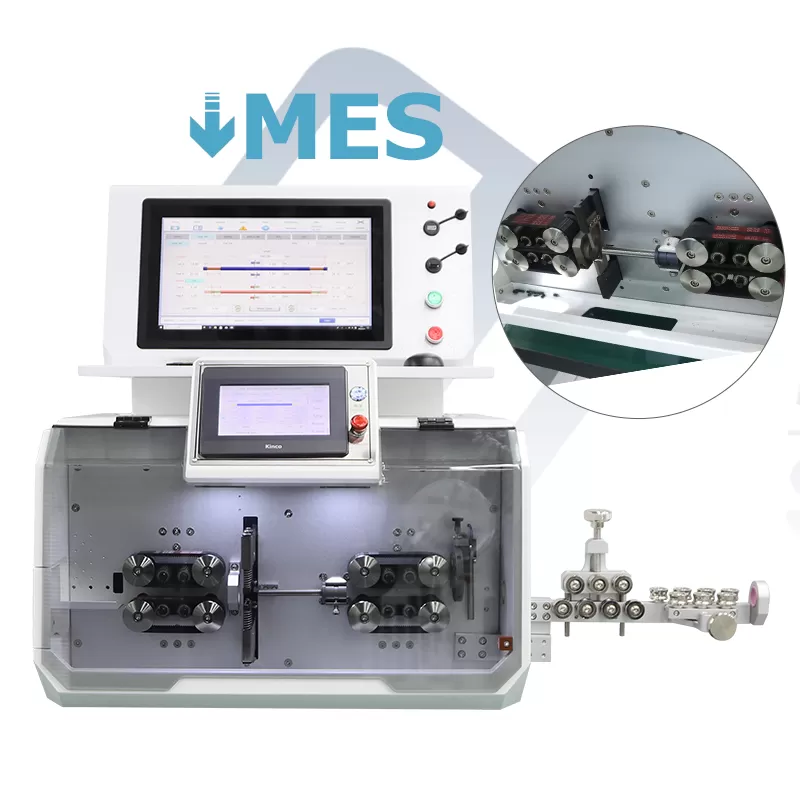

Industry-Ready Architecture: Designed for Modern Manufacturing Execution Systems (MES), the EW-05F+S features full vertical integration from Level 1 Motion Control up to Level 5 Decision Management.
Data-Driven Efficiency: Supports batch Excel task synchronization, real-time material error correction via barcode scanning, and automated process ticket printing. This eliminates human error, ensures 100% material-to-task matching, and provides comprehensive daily, monthly, and annual production traceability reports.
Powerful & Damage-Free Handling: Engineered with a specialized 16 metal roller with belts feeding mechanism, the machine generates massive pulling force for heavy sheathed cables without leaving any indentation or scratch marks on delicate jacket materials.
Intelligent Material Monitoring: Features an integrated Feed Sensor for automatic machine-stop when the wire is exhausted, alongside a digital program-controlled roller gap and changeable inlet diameters to effortlessly adapt to various wire dimensions.
Tight-Tolerance Processing: Powered by high-torque servo motors and premium imported high-speed steel (HSS) blades, the machine guarantees a strict cutting length tolerance of 0.002*L (where L represents the cutting length) across a massive processing spectrum (0.75-30mm².

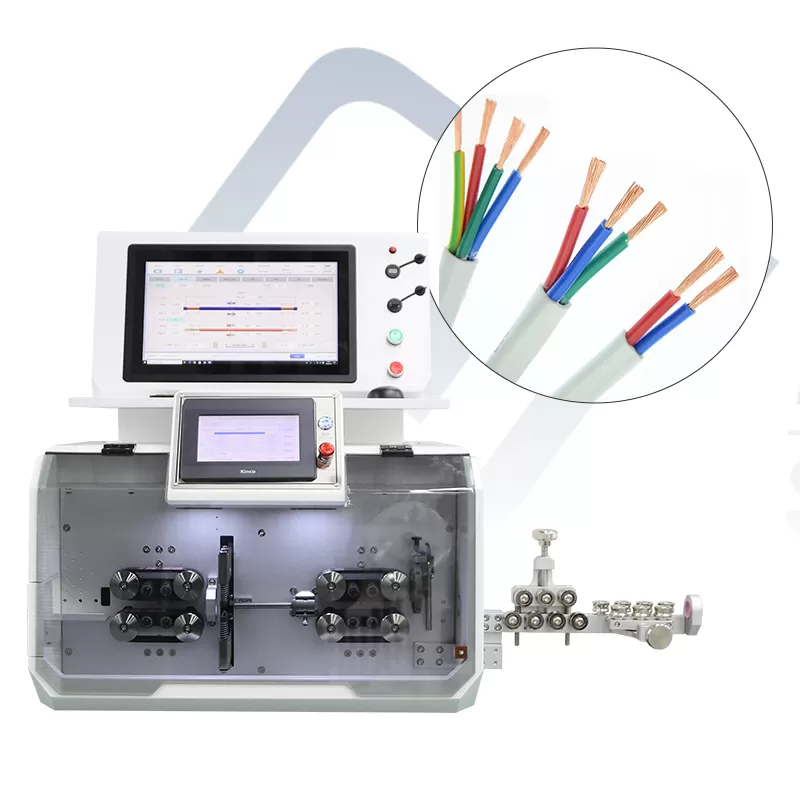

Advanced Multi-Step Stripping: Masterfully executes full and half stripping for both outer cable jackets (up to 800 mm) and multi-core inner wires (2-10 cores) with digital precision, eliminating wire core damage during the pressure-stripping process.
Dynamic Marking & Traceability: Seamlessly synchronizes with industrial inkjet/laser printing devices to deliver robust, highly legible cable marking directly during the high-speed production cycle.
On-the-Fly Customization: Operators can quickly adjust fonts, text sizes, languages, and coding templates via the intuitive 7-inch touchscreen interface, ensuring excellent adhesion and immediate readability on all PVC, rubber, or sheathed surfaces.
