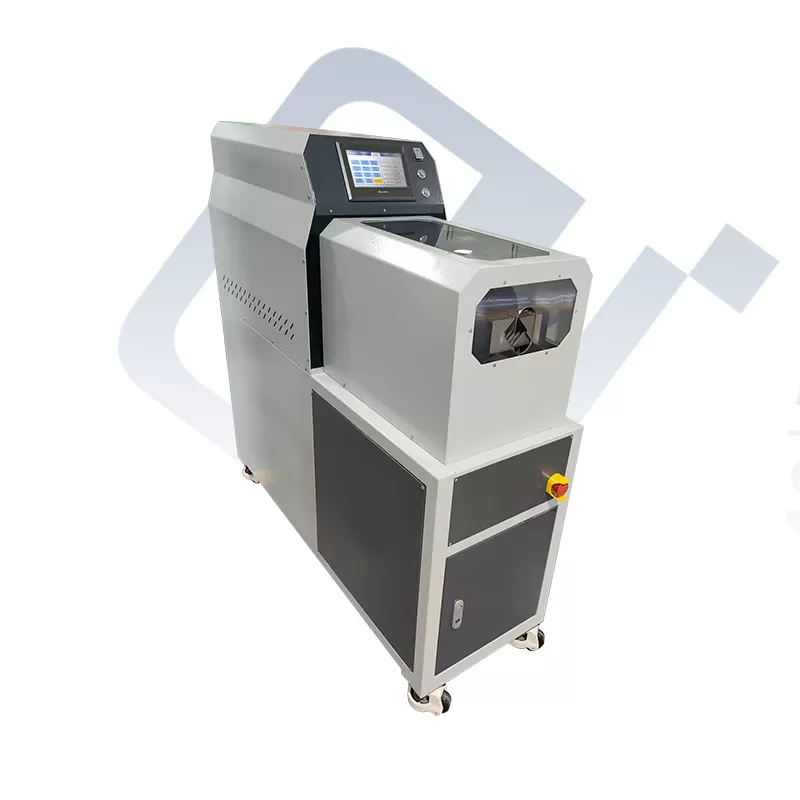

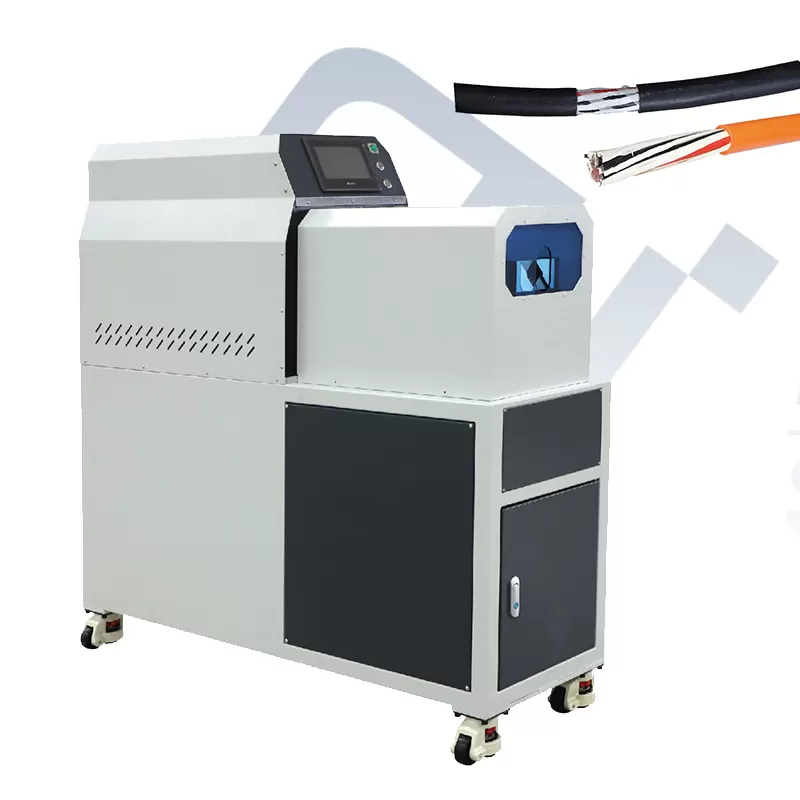

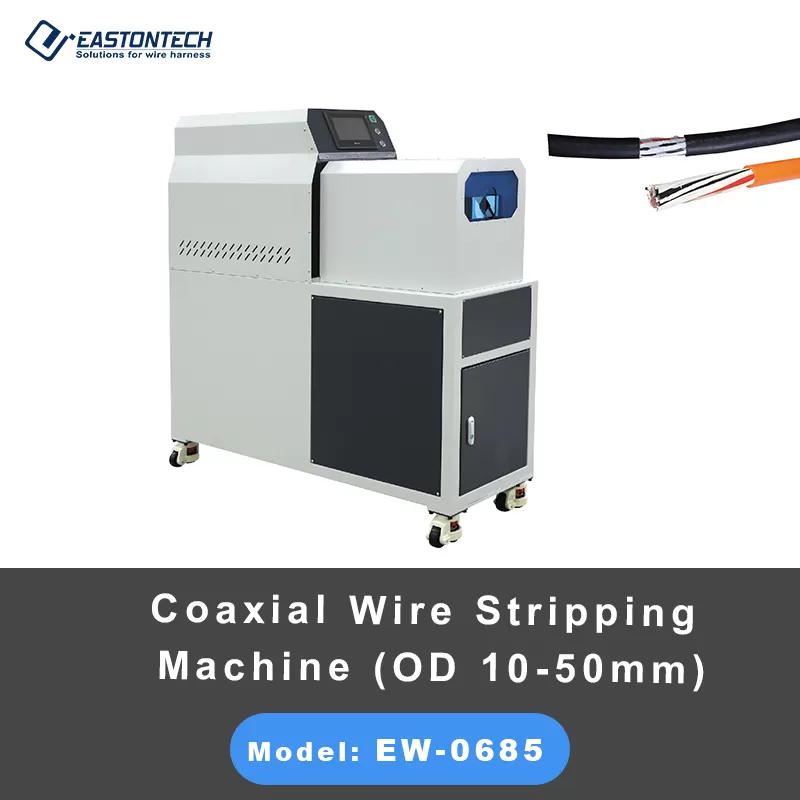

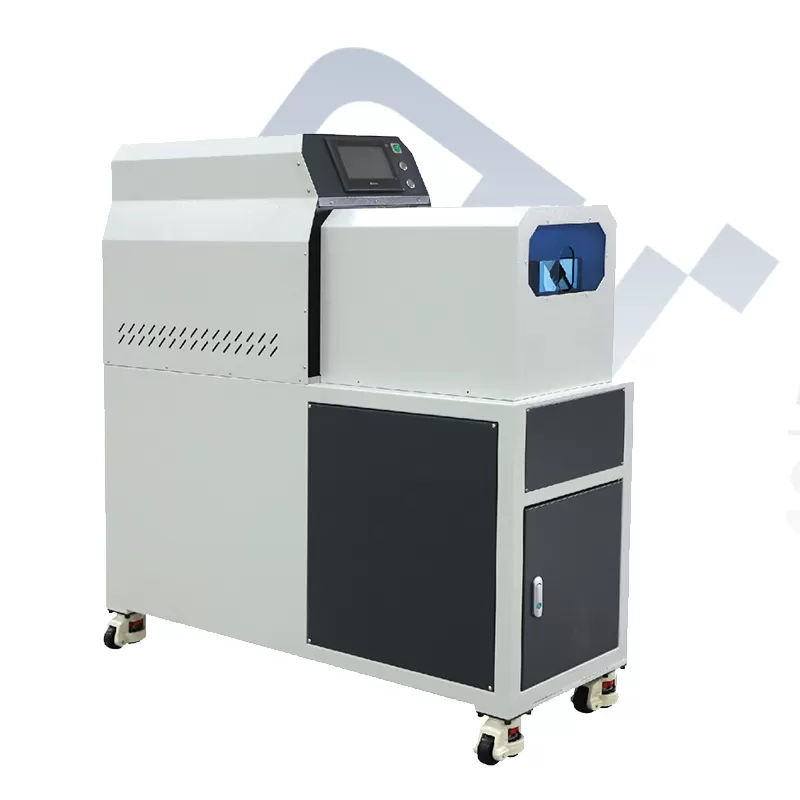

EW-0685 Coaxial Wire Stripping Machine (10-50mm)

Engineered for heavy-duty applications, it effortlessly processes large-diameter communication and power cables from Φ10 mm to Φ50 mm. The system supports programmable, consecutive stripping for up to 9 layers in a single cycle, ensuring flawless insulation removal without requiring any blade changes between different wire sizes.

Utilizing a highly advanced rotating cutter head paired with a specialized axis positioning mechanism, the machine achieves exceptional stripping precision down to a 0.01 mm increment setting. This guarantees clean, razor-sharp cuts through tough jackets and shielding braided layers while safely protecting the inner conductors.

Featuring a motor-driven, automatic-centering wire clamping mechanism, the EW-0685 automatically self-aligns the cable for concentric cutting. The clamping force is fully controlled via software programs, preventing any crushing or deformation of delicate dielectric materials or soft outer jackets.

Equipped with a user-friendly HMI touchscreen panel, operators can easily digitally input and save critical parameters—including stripping depth, feed speed, cutting distance, and rotation times. This full digitalization reduces changeover times to seconds and ensures perfect repeatability across different production batches.
