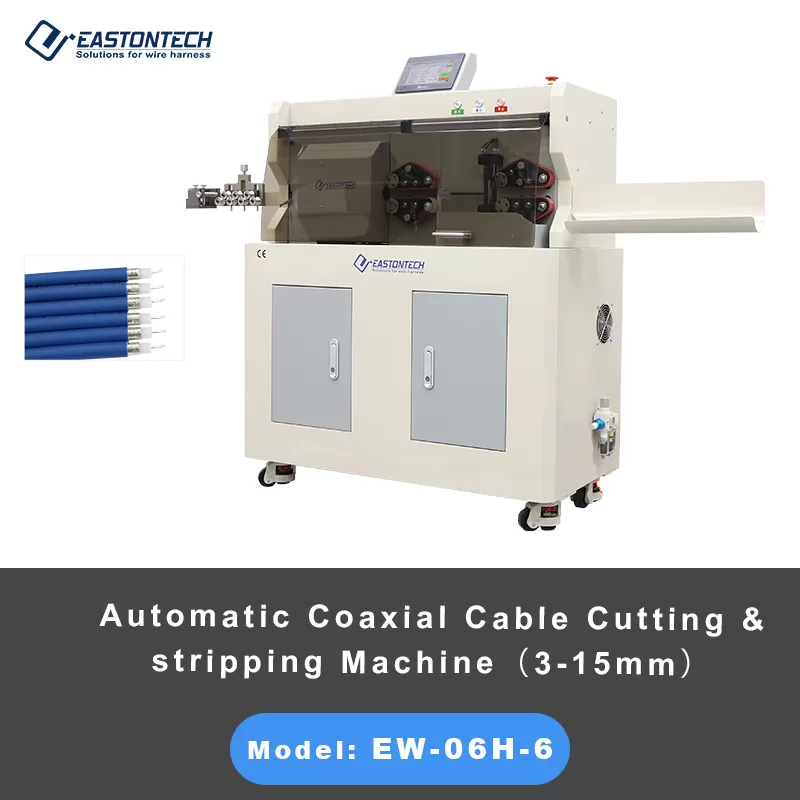

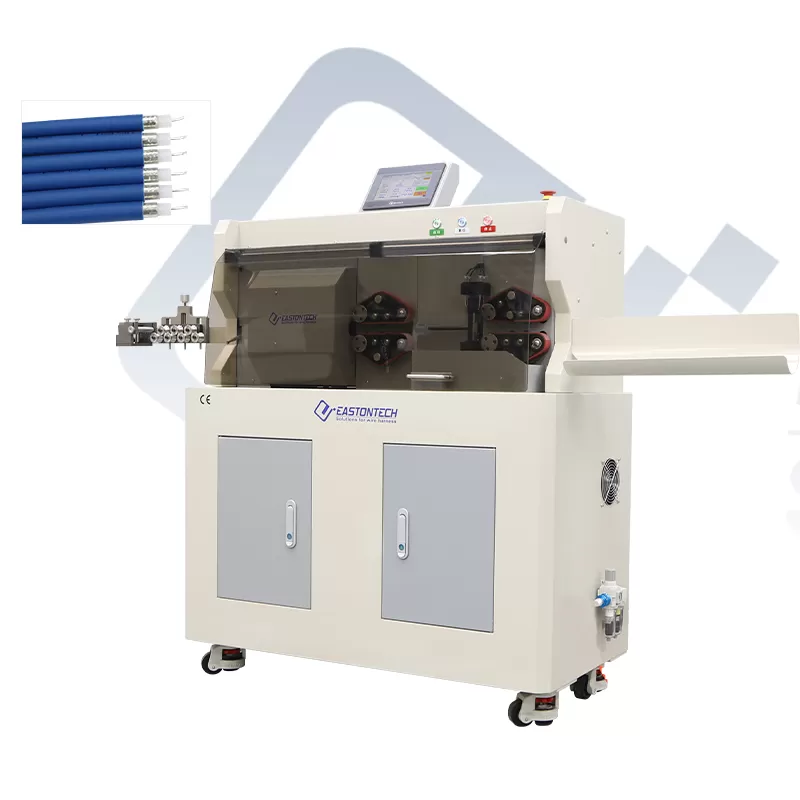

EW-06H-6 Automatic Coaxial Cable Cutting & Stripping Machine(3-15mm)

Engineered to handle the most demanding multi-shielded cables, the machine supports up to 6 layers of programmable sequential stripping. Featuring premium imported tungsten steel rotary blades, it delivers clean, precise incisions through tough insulation, braided shielding, and aluminum foil without compromising the integrity of inner conductors.

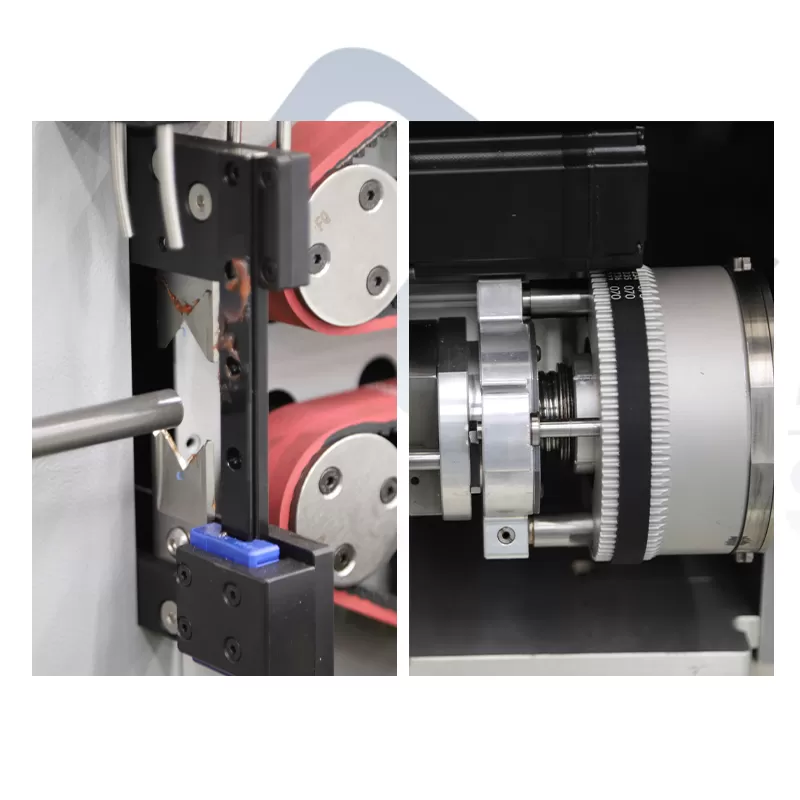

Driven by a high-performance Servo motor and ball screw system, the EW-06H-6 offers unparalleled machining accuracy. The rotary incision unit allows for microscopic depth adjustments down to 0.01 mm increments, ensuring optimal stripping penetration depth, eliminating conductor damage, and guaranteeing compliance with strict automotive and aerospace processing standards.

To safeguard delicate high-voltage and coaxial cable jackets, the machine utilizes a 32-roller driving system paired with synchronous belt feeding. This design distributes gripping pressure evenly over a large surface area, preventing wire slippage and guaranteeing a 100% scratch-free surface while accurately feeding cable lengths from 50 mm up to 99,999 mm.

Equipped with heavy-duty imported high-speed steel V-blades , the system delivers powerful pull-off forces with stripping lengths up to 220 mm on Side I and 130 mm on Side II. Operators can easily save, recall, and modify up to 99 processing recipes via the intuitive 153mm*85mm touch screen interface , boosting productivity to a massive 400 - 700 pieces per hour.
