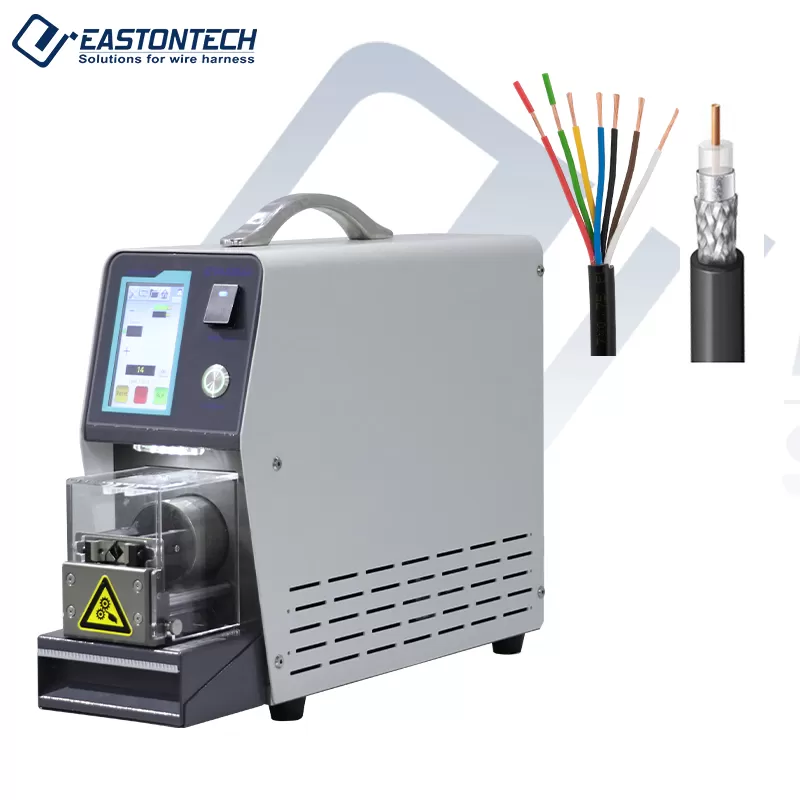

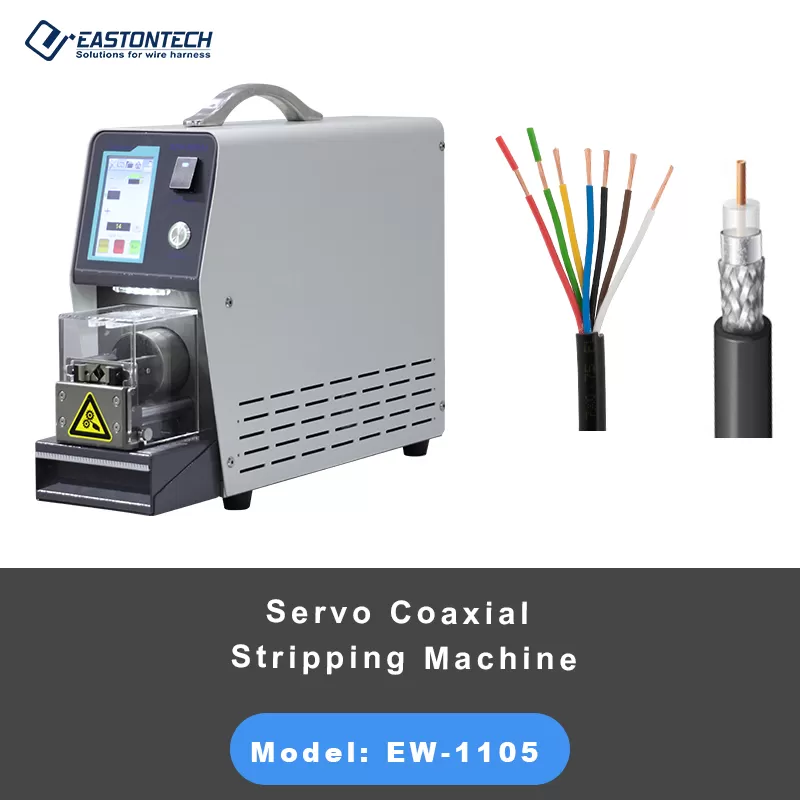

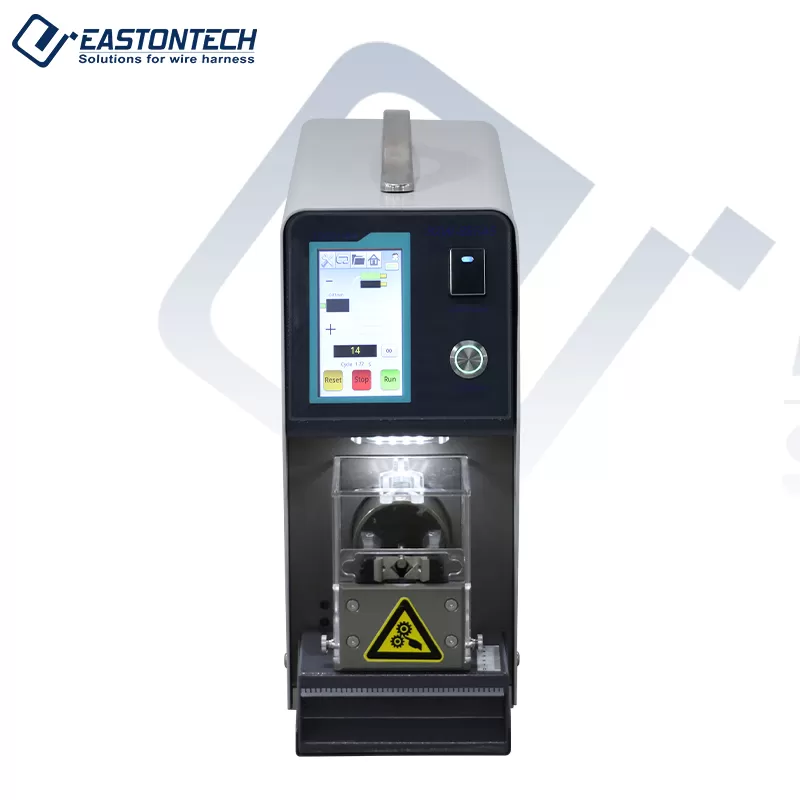

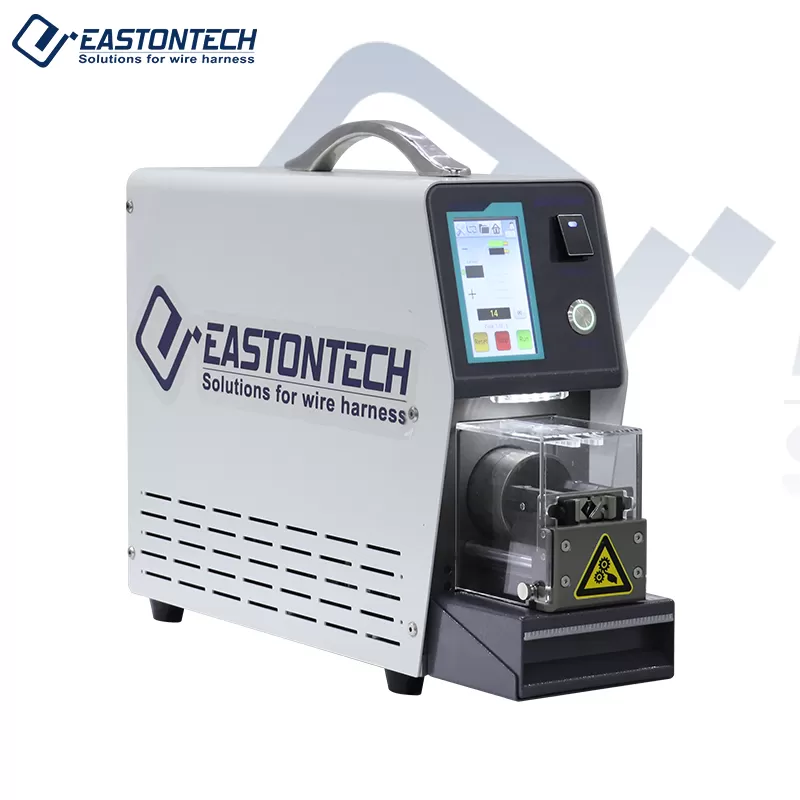

EW-1105 Coaxial Cable And Sheathed Cable Stripping Machine

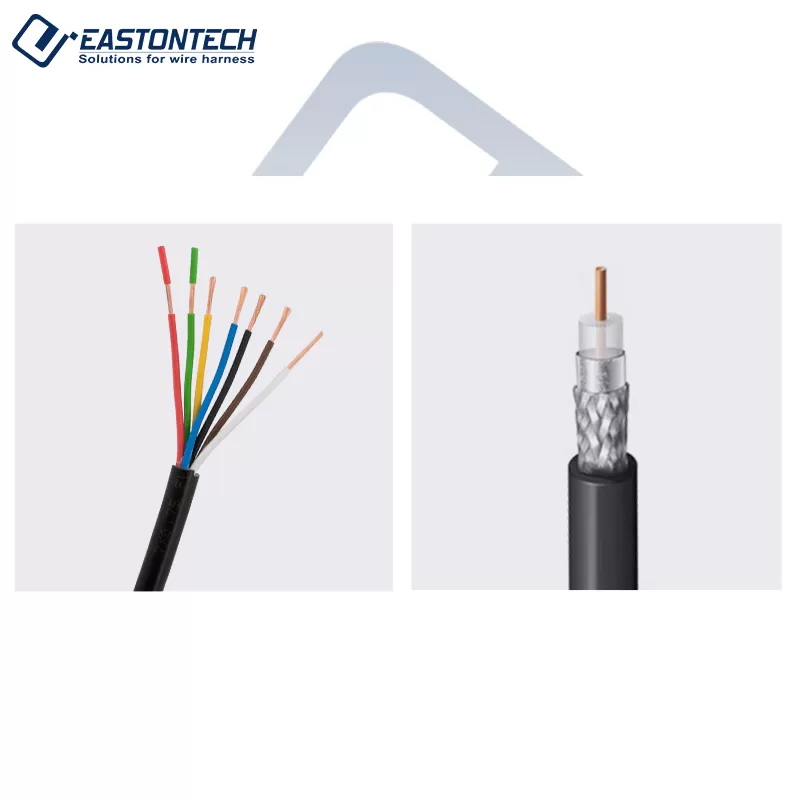

The EW-1105 utilizes a high-speed rotary cutting head that can programmatically strip up to 5 layers of insulation, shielding, and dielectric materials. This "rotary-cut" method ensures a perfectly circular incision without damaging the inner conductors, making it ideal for delicate coaxial and triaxial cables.

Featuring a robust PLC control system, the machine supports multi-step programming for various wire diameters and stripping lengths. Whether it is full stripping, half stripping, or multi-stage stripping, the EW-1105 handles diverse wire types (including multi-core cables) with seamless transition and high repeatability.

Safety and uptime are prioritized with an ingenious protective cover that triggers an immediate halt if opened during operation. Additionally, the unit features an independent waste collection box, ensuring that insulation residues are contained, keeping the internal mechanism clean and extending the machine's service life.

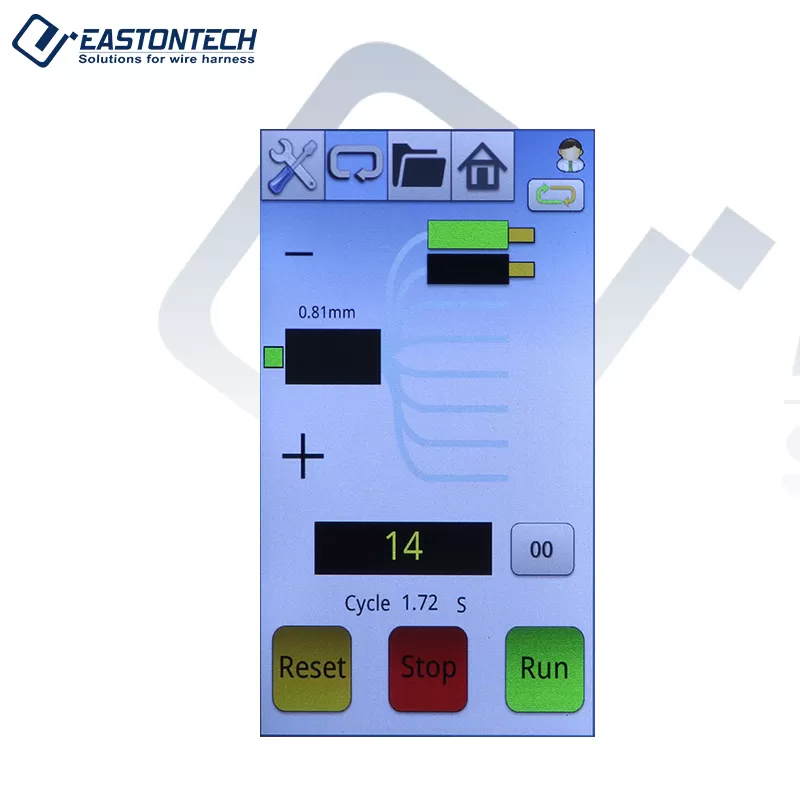

The 4.3-inch color touch screen provides a visual management system where operators can adjust stripping depth (0.1mm increments) and pull-off speed in real-time. This eliminates the need for manual blade adjustments, significantly reducing setup times for small-batch, high-mix production environments.
