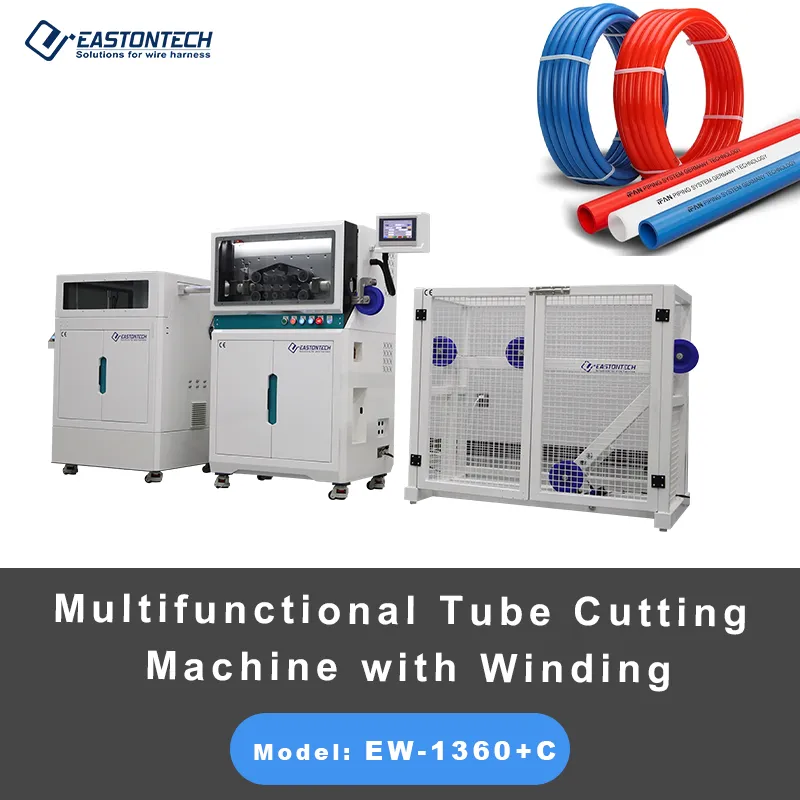

Model | 1360+C |
Display mode | 7-inch human-machine interface |

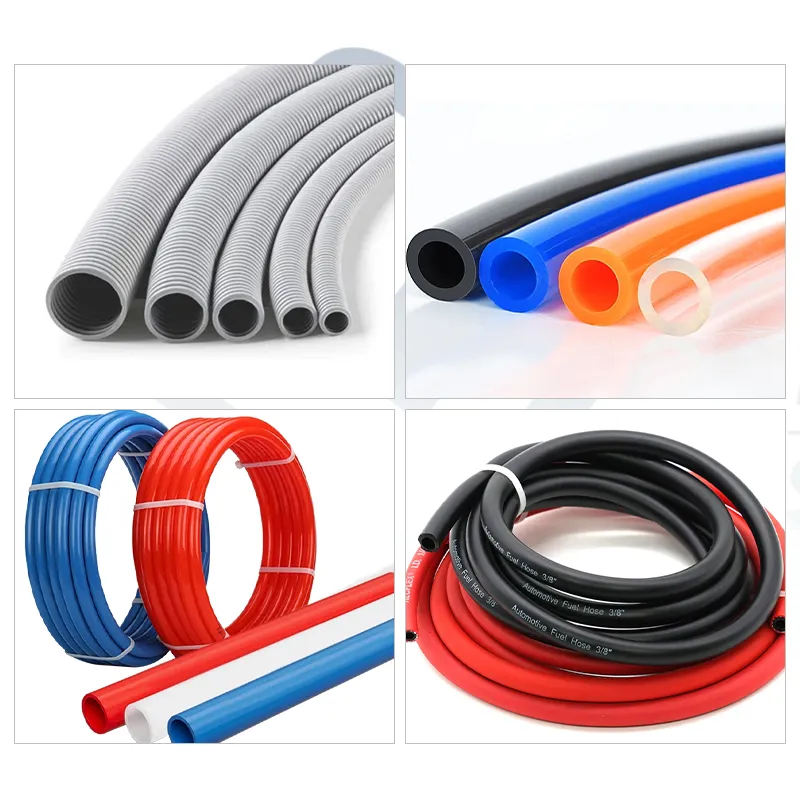

Function | 1、Air pipe/low pressure oil pipe/PVC pipe/heat shrink tube, etc. various plastic pipes can be cut to fixed length. |
Processing scope | 4-50mm |
Cut off length | 1mm-999999.99mm |
Cutting tolerance | Within 0.003*L (L=cutting length) |
Maximum diameter allowed | Φ52mm |
Productivity (times/hour) | 4000 PCS/hour (100mm/diameter 10mm) |
Drive mode | 14-wheel drive; ROptional servo motor |
Feeding method | Belt feeding, no embossing or scratching on the pipe. |
Tool holder control mode | Servo motor + grinding screw |
Special features of the model | The upper limit position of the tool holder is digitally adjustable, and the lower limit position of the tool holder is digitally adjustable |
Lifting operation mode | Digitally adjustable pressure roller height |
power supply | AC220V 50/60Hz ； ROptional 110V 50/60Hz |
Air source | No air source required |
Application | Coiling for wide range of industrial wires & cables |
Coil inner diameter | 200 - 680 mm |
Coiling speed | 1.5 m/s (intelligent speed change) |
Driving mode | Servo motor |
Safety protective cover | Available |
1. Damage-Free Belt Feeding System
Equipped with an advanced 14-wheel belt drive, the machine securely feeds large materials (up to 52mm maximum diameter) without causing surface indentations or scratches. This ensures the aesthetic and structural integrity of delicate PVC pipes and heat shrink tubing throughout the production cycle.

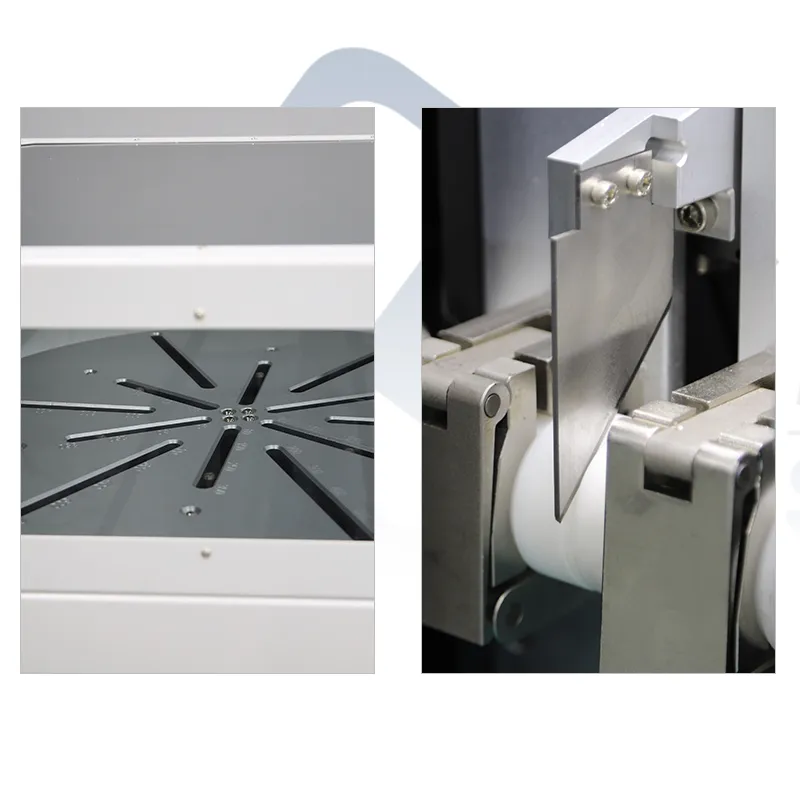

2. Exceptional Cutting Precision
Driven by a servo motor paired with a precision ground ball screw, the cutting assembly delivers strict cutting tolerances within 0.003*L. The fully digitized adjustment for both the upper and lower blade limits, as well as the pressure roller height, guarantees clean, square cuts and extremely fast changeovers between different pipe sizes.
3. High-Volume Production Capacity
Designed for demanding manufacturing environments, the 1360+C achieves a reliable throughput of up to 4,000 pieces per hour (based on 100mm lengths at a 10mm diameter). This high-speed capability drastically reduces manual intervention and boosts overall production line efficiency.

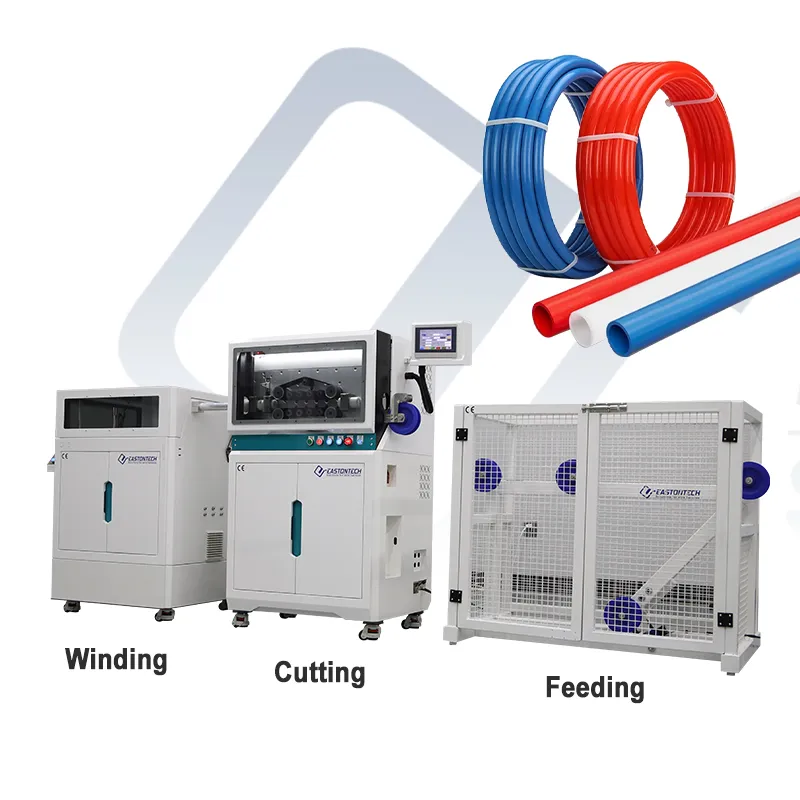

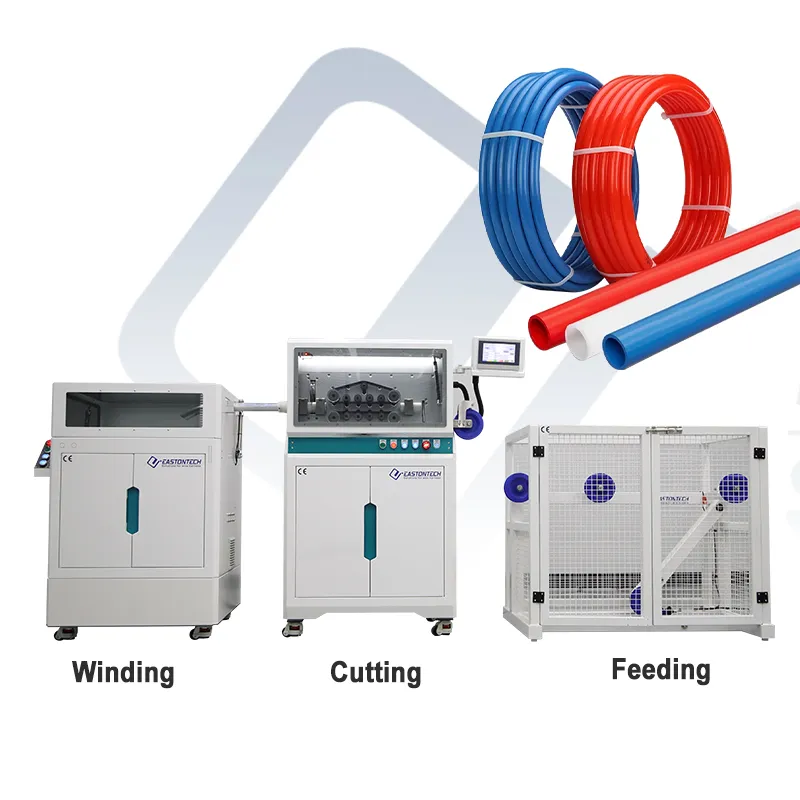

4. Integrated Intelligent Coiling Unit
The machine features an integrated, servo-driven coiler capable of winding heavy-duty industrial cables and tubes at speeds up to 1.5 m/s. Equipped with an intelligent speed variation system and accommodating an adjustable coil inner diameter of 200 mm to 680 mm, it seamlessly adapts to a wide range of industrial packaging requirements.
