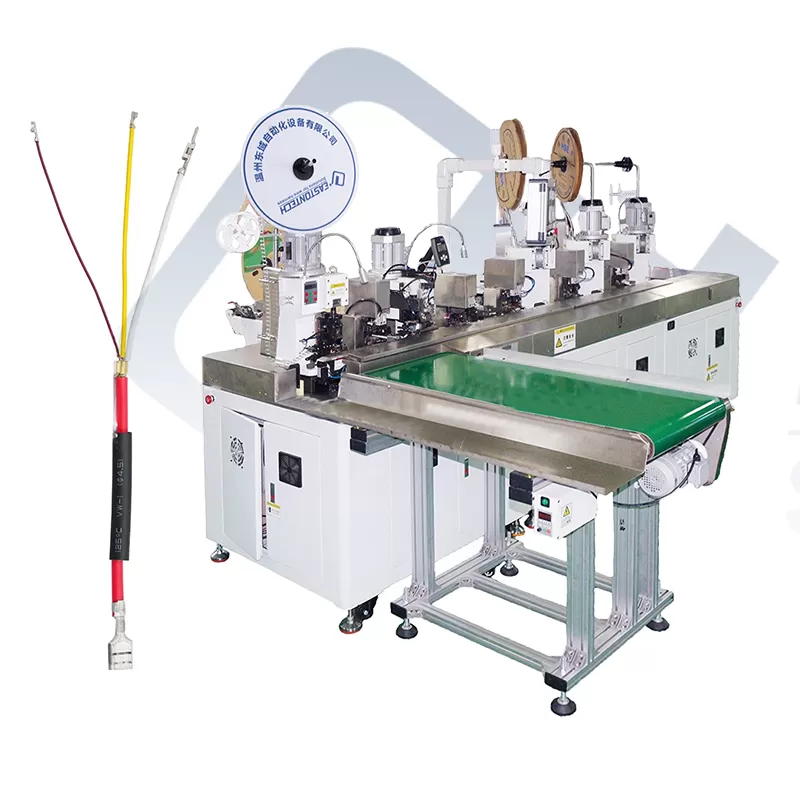

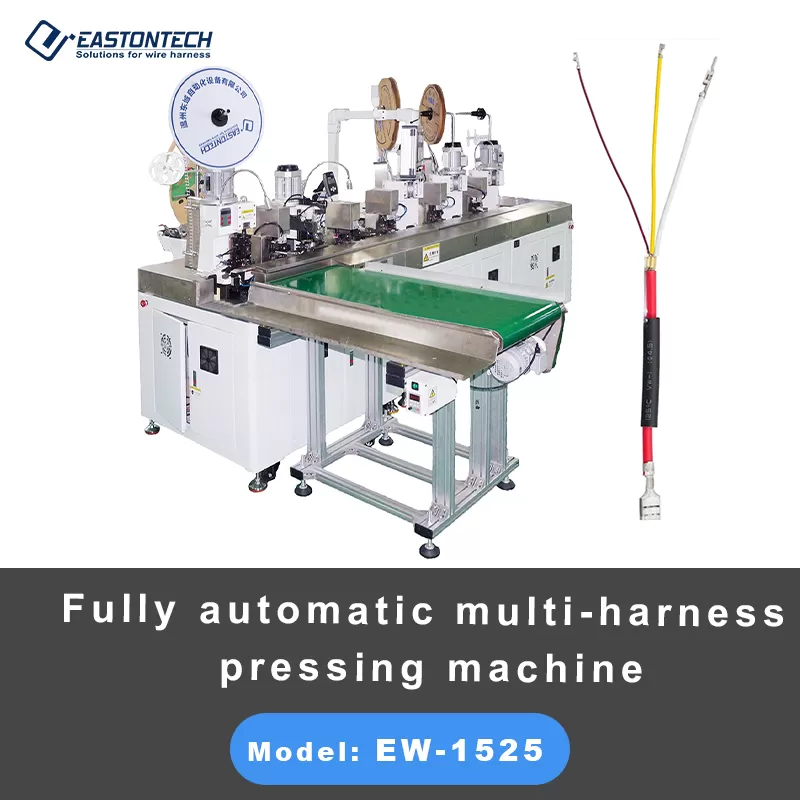

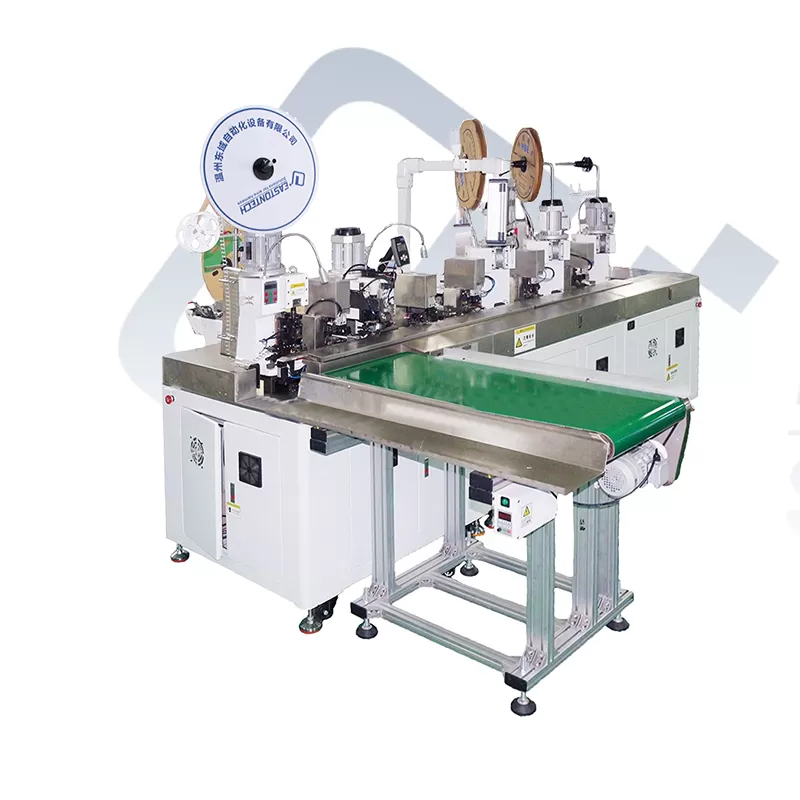

EW-1525 Fully Automatic Multi-harness Pressing Machine

Engineered for advanced harness configurations, the machine supports the simultaneous docking of 1 main wire with up to 3 sub-wires driven by 4 independent wire-feeding units. Utilizing advanced copper tape splicing instead of traditional soldering, it delivers superior tensile strength and excellent electrical connectivity while eliminating material waste—offering a highly cost-effective and eco-friendly splicing solution.

Boost your production efficiency with a built-in architecture featuring 4 independent terminal crimping units. This allows the machine to apply distinct terminal configurations to the opposite ends of all four wires in a single cycle, seamlessly running from cut-and-strip to final terminal crimping with a steady throughput of 700–800 pcs/h.

Eliminate manual labor bottlenecks with the fully automated heat-shrink sleeve integration. The system automatically measures, cuts, threads, and positions the heat-shrinkable tubing from the coil directly onto the spliced wire joint, executing an inline pre-heating cycle to deliver perfectly insulated, production-ready wire assemblies.

Built for heavy-duty industrial environments, the copper tape mechanism is integrally cast from high-rigidity ductile iron to minimize vibration and maintain micrometer-level crimping accuracy. Combined with an advanced MCU control system and multi-point safety sensors (terminal error, pneumatic pressure, material shortage, and knot detection), it ensures zero-defect manufacturing.
