Technical Parameters
Model | EW-3260 |
Display Mode | Touch human-machine interface |
Function | 1. Single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting and stripping 2. Remove the outer covering of multi-core wires at the same time |

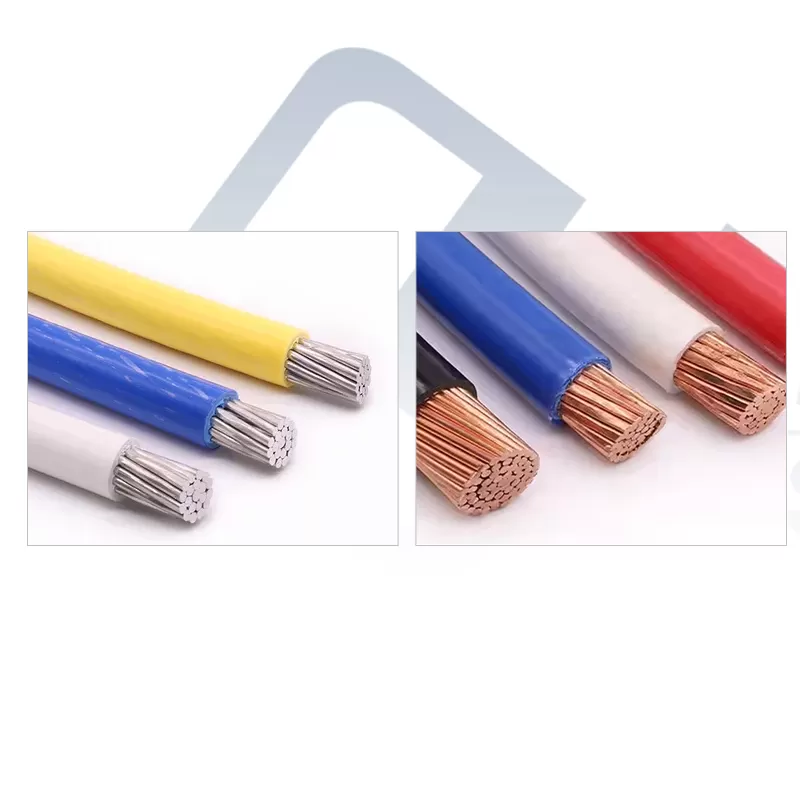

Wire type | Single-core wire, multi-core cable, shielded cable, wire, PVC, etc. |
Processing range | 10-300 square meters |
Cutting length | 10mm-999999.99mm |
Minimum stripping length | Total length - front stripping length - rear stripping length > 150mm |
Cutting tolerance | Within 0.002*L (L=cutting length) |
Stripping length | Front stripping: 1 - 300mm (all thread ends removed) |
Rear stripping: 1 - 300mm (all wire ends removed) | |
Maximum diameter of the catheter | Φ38 |
Wheel lifting method | Stepper motor lifting wheel |
Swing catheter method | Motor swing guide |
Tool material | High-quality imported high-speed steel |
Productivity (times/hour) | 1000 PCS/hour (depending on the length and size of the line) |
Drive mode | Wire feeding: 28 wheels, each group is driven independently Tool holder: double servo plus double screw |
Wire feeding method | Belt feeding, no marks or scratches on the cables. (With stripping and pressurizing function) |
Lifting operation mode | Digitally adjustable pressure roller height |
Power supply | AC220V 50/60Hz; Roptional 110V 50/60Hz |
Gas source | 0.5-0.8Mpa clean air source |
Dimensions (length * width * height) | 1220*650*1400 |
Net weight | 380KG |
Feature:
Optional: MES system, Internet of Things system, fixed-point coding function, mid-stripping function, external auxiliary equipment alarm;
User-friendly system with intuitive operation via 7" color touch screen;
Modular interface for easy connection of accessories and peripheral devices;
Modular design, future upgradeable;
A variety of optional accessories are available to customize the system. Special cable processing is also available for non-standard customization.

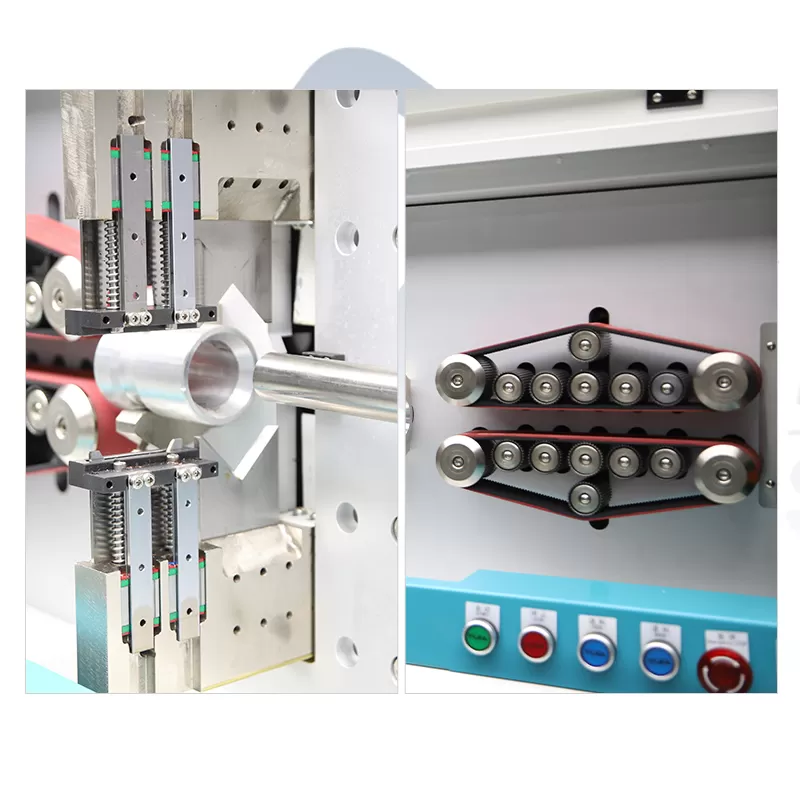

Unmatched Cutting Force & Precision: Driven by two enhanced synchronized servo motors and dual lead screws, the heavy-duty tool holder delivers maximum cutting stability and torque. Featuring one dedicated set of blades for precise cutting and another for seamless stripping (compatible with universal V-shape and radius blades), it easily handles tough, multi-layered insulation while maximizing productivity up to 1,000 pcs./h.

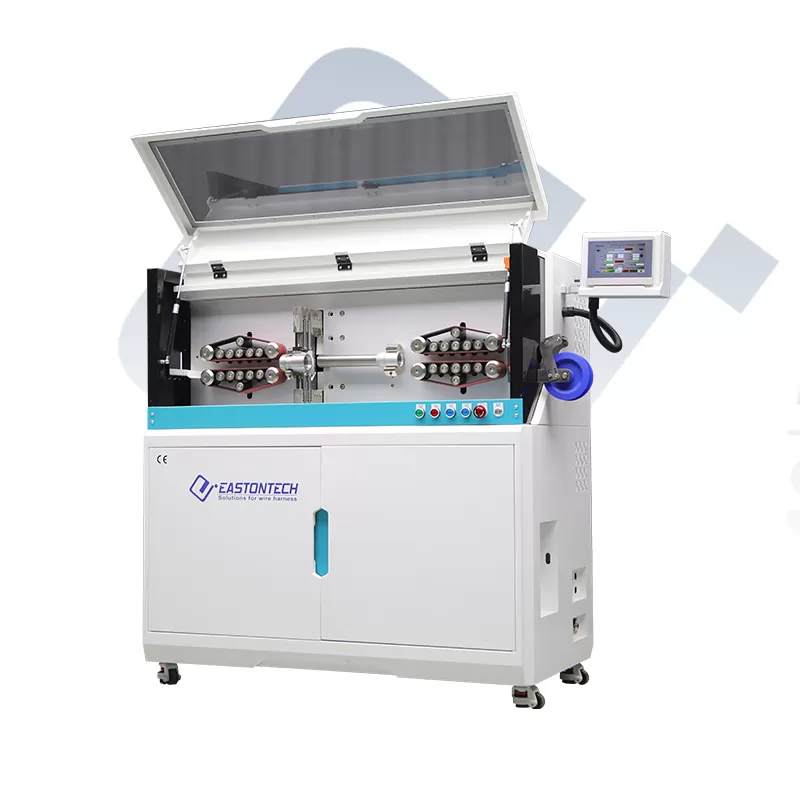

Zero-Mark Processing for Heavy Cables: Utilizing an advanced 32-roller independent drive assembly coupled with a premium belt-feeding system, the EW-3260 eliminates the risk of slip marks, scratches, or deformation on cable jackets. The digitally adjustable pressure roller height ensures optimal gripping force for both ultra-thick and sensitive insulation materials.

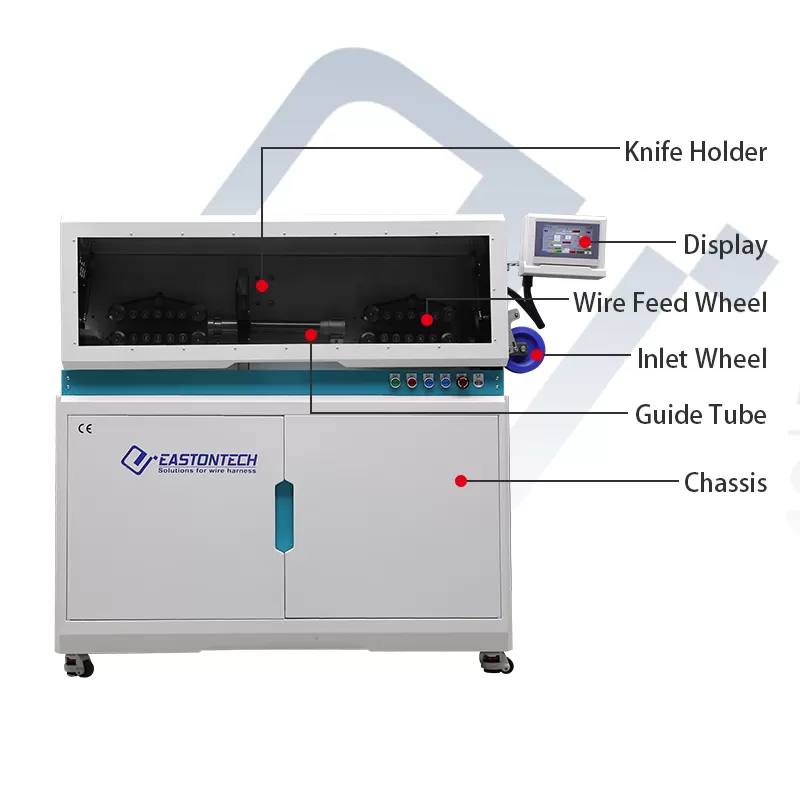

Seamless Setup & Material-End Protection: The innovative rotary inlet turntable allows operators to quickly rotate and select the optimal guide size to match various cable diameters. Integrated with an intelligent wire detection pole, the system automatically triggers a safety stop when the wire spool runs out, preventing blade wear and material waste.
Industry 4.0 & MES Ready: Built with a highly adaptive modular interface, the EW-3260 allows effortless integration with peripheral accessories such as external pre-feeders, collection systems, and fixed-point inkjet printers. The system is fully upgradeable to support IoT functions and MES integration, ensuring your production line stays future-proof.
