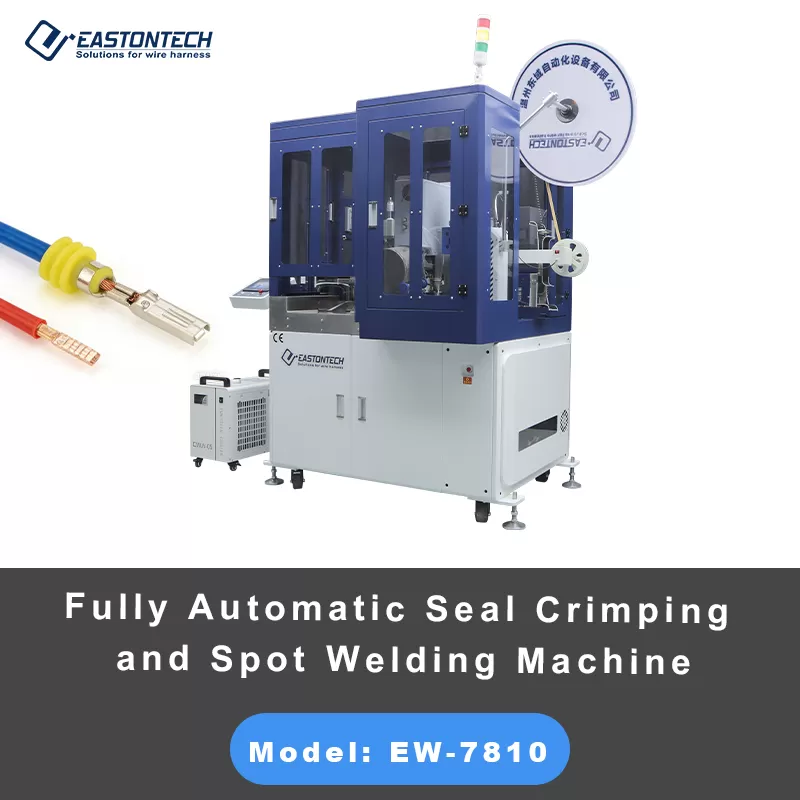

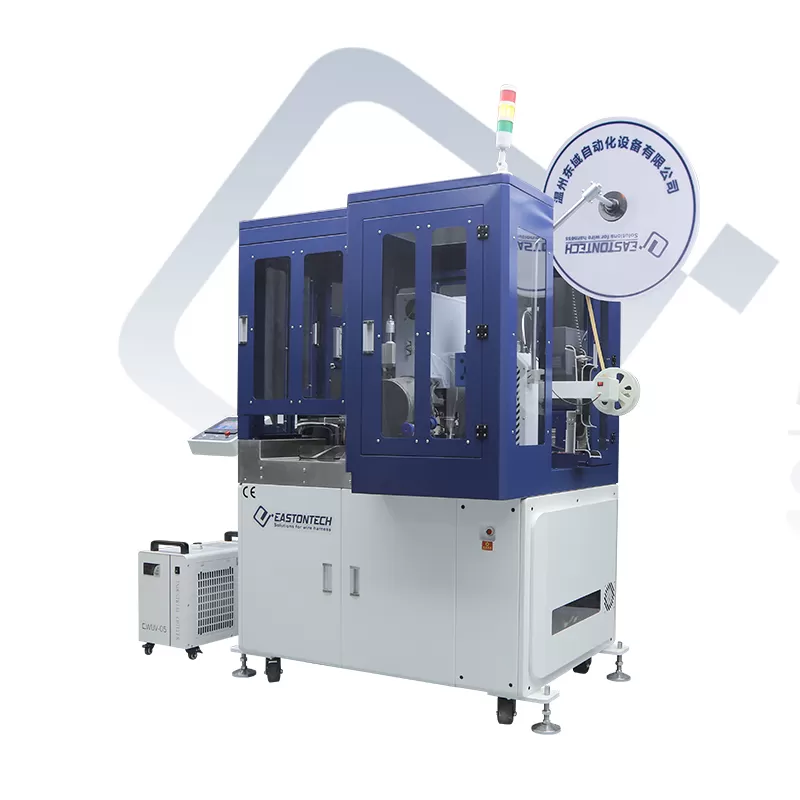

Model | EW-7810 |
Applicable wire range | AWG28-AWG16 |
Applicable wire | Electronic wires, high-temperature wires, Teflon wire , etc |
Stripping length | Front <16mm , end <18mm |
Cut precision | ±0.1（0.1＋0.003*L）mm，L=cutting length |
Capacity | 1200-1700pcs/hour ( L=100mm) |
Crimping force | 2.0T |
Stroke | 30mm/40mm |
Air pressure | 0.5-0.7Mpa |
Detection | Low air pressure ,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error |
Power supply | 220V/50HZ |
Dimension | 1700*920*1580mm |
Machine Weight | 550KGS |
Machine Power | 3000W |
Air compressor | Yes |
Pedal | N/A |

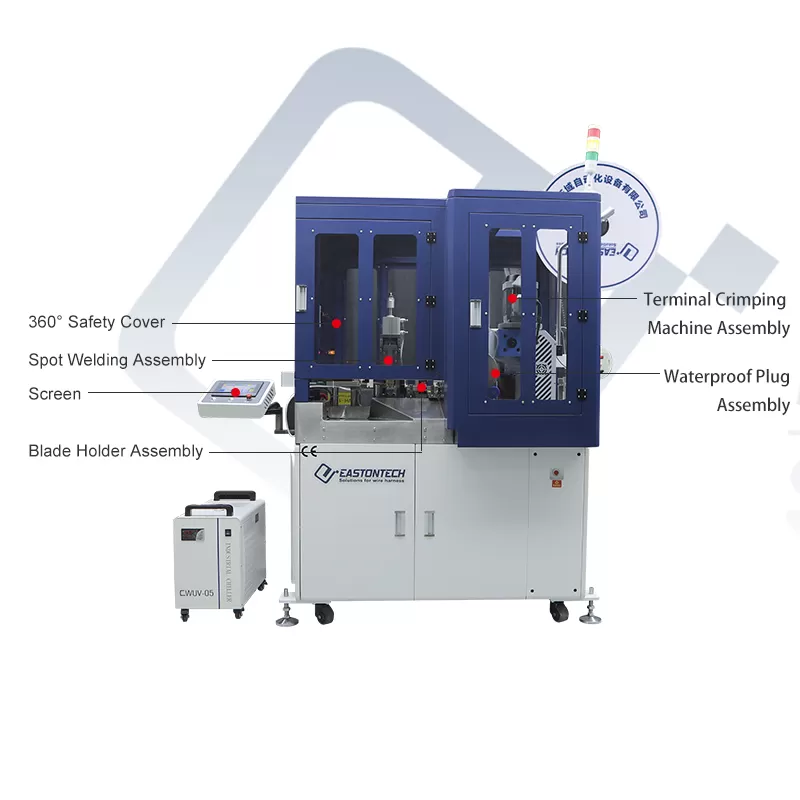

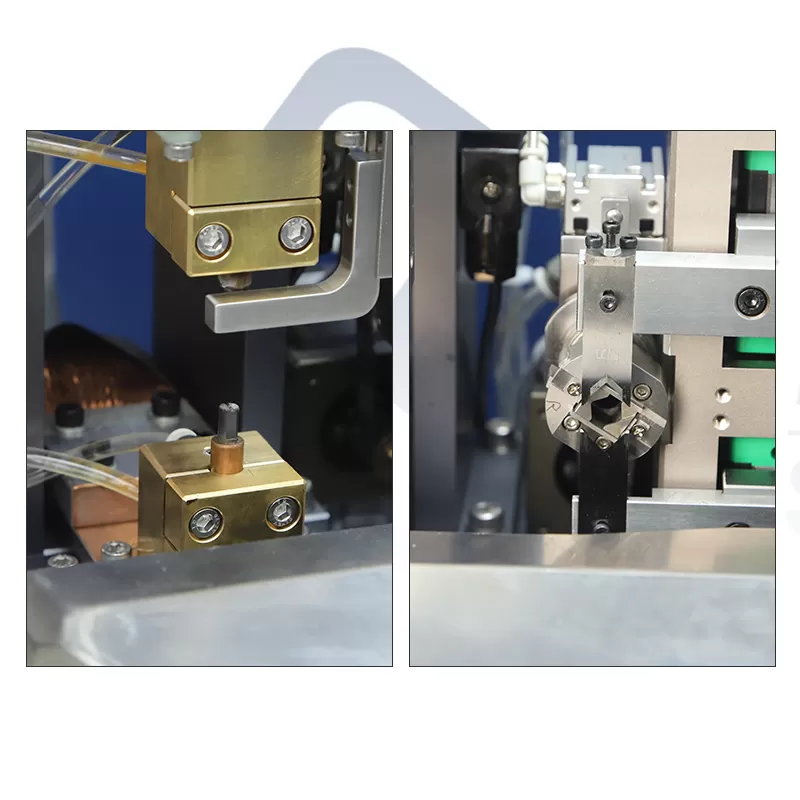

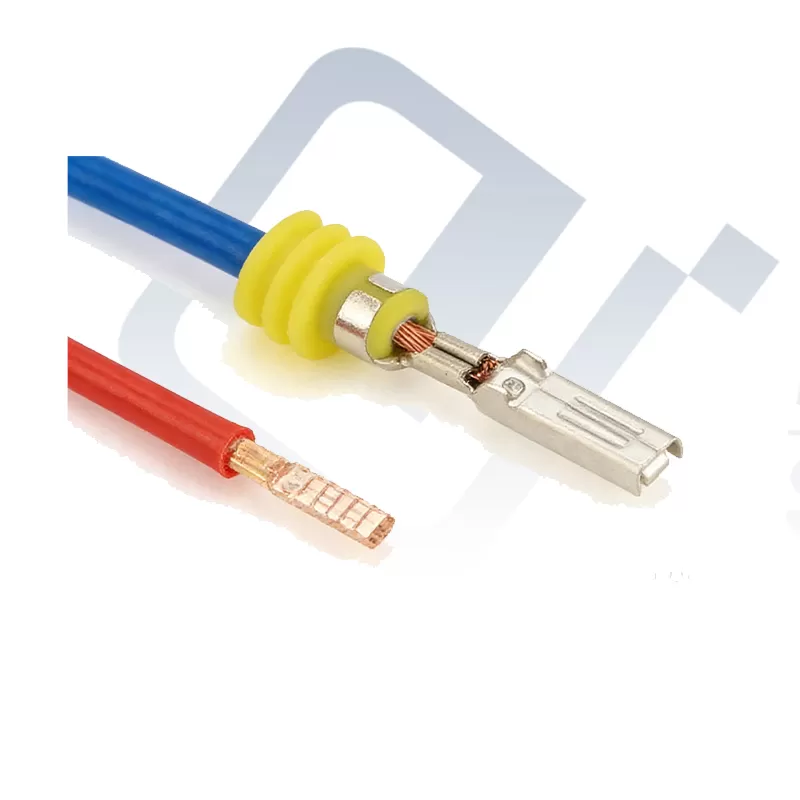

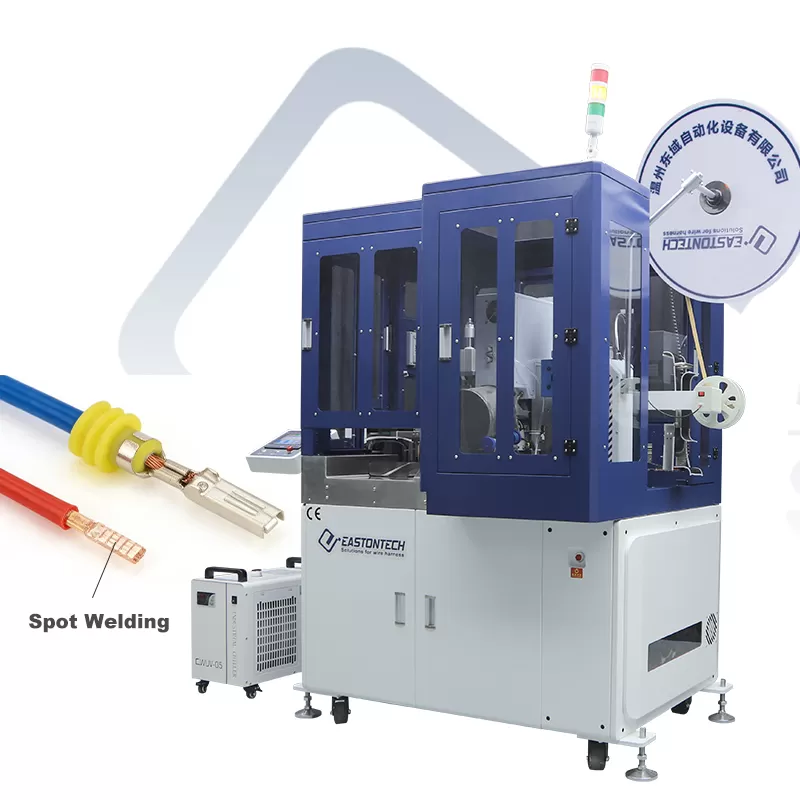

Beyond standard crimping, the EW-7810 excels in specialized tasks by integrating automatic seal loading and one-end spot welding. This ensures IP-rated waterproof integrity and superior electrical conductivity, reducing manual handling and minimizing the risk of component contamination.
Equipped with advanced servo-driven control, the machine achieves a cutting precision of ±(0.1 + 0.003*L) mm. The stable 2.0T crimping force and precise stripping control (down to 16mm for front ends) guarantee that every terminal meets the most stringent cross-sectional analysis standards.
To minimize scrap rates and downtime, the EW-7810 features a comprehensive multi-point detection system. It monitors low air pressure, wire run-out, terminal overload, and crimping errors in real-time, ensuring consistent quality and protecting the precision tooling from damage.
Built for 24/7 high-intensity production, the machine features a robust 550kg chassis to dampen vibrations. The high-torque 3000W power system supports a wide wire range from AWG28 to AWG16, making it a versatile workhorse for processing everything from delicate electronic wires to heat-resistant Teflon cabling.
