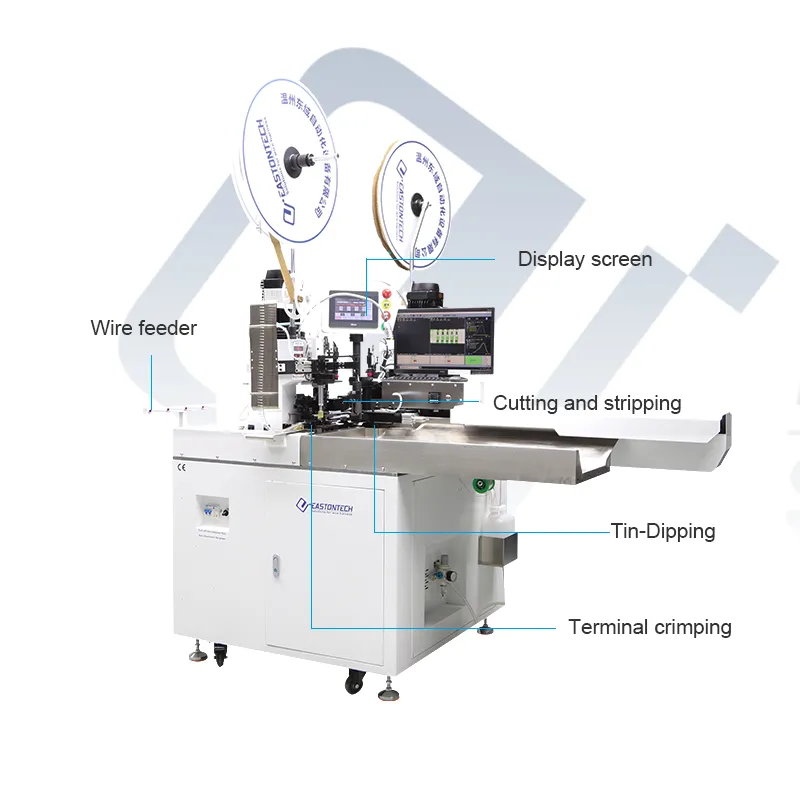

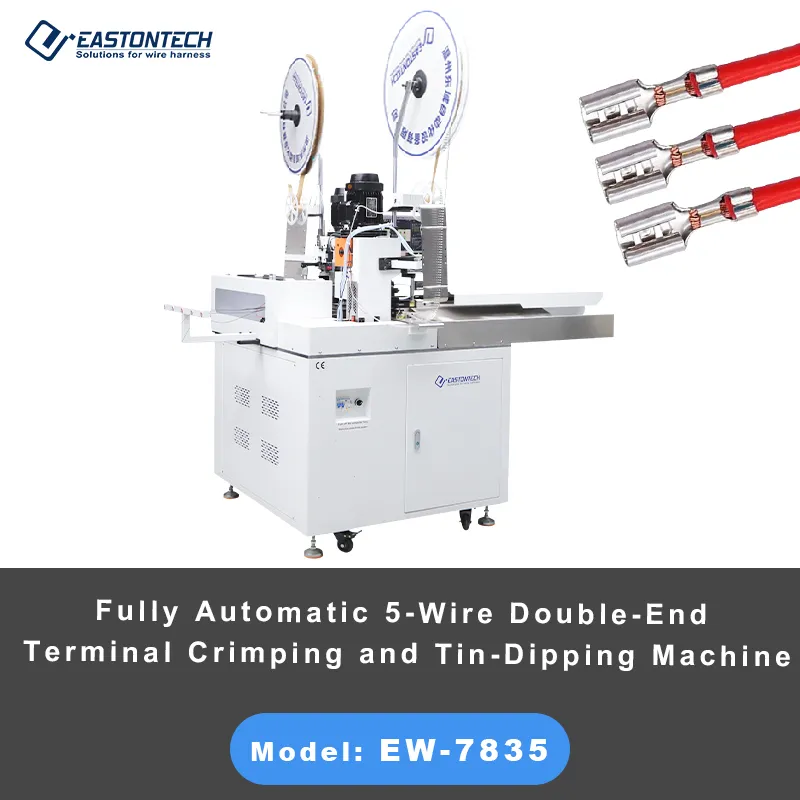

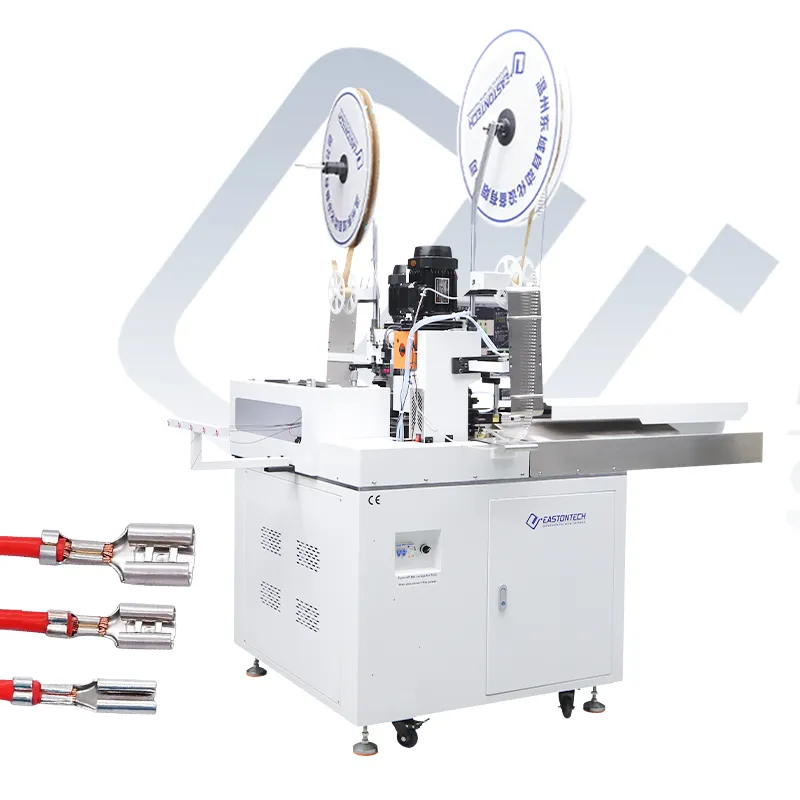

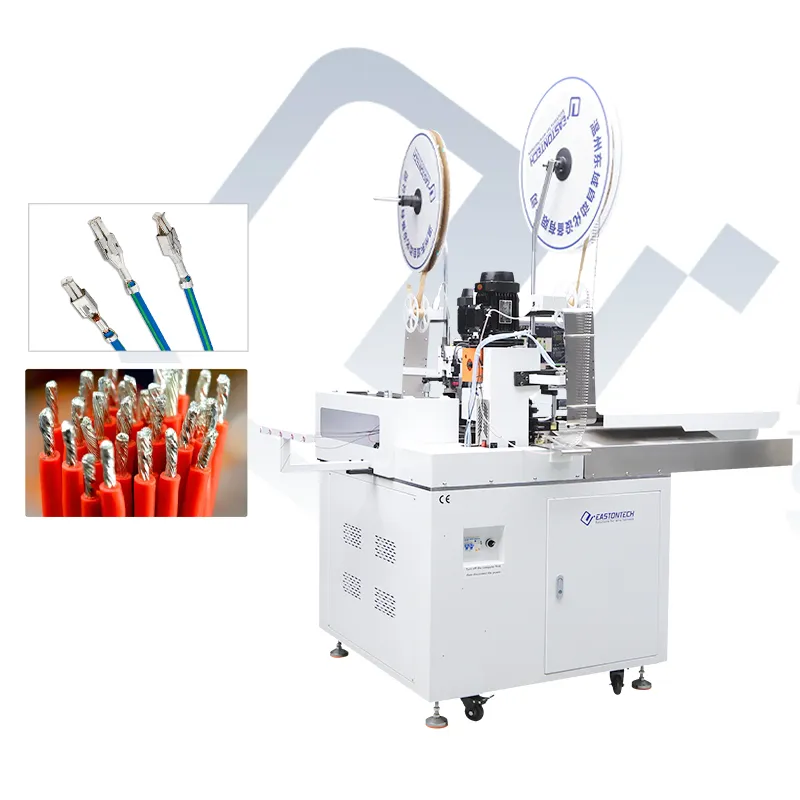

EW-7835 Five-Wire Double-End Terminal Crimping and Tinning Machine

Eliminate time-consuming mechanical tooling adjustments. Powered by an intuitive touch screen interface and an advanced proprietary control system, operators can digitally input and adjust cutting lengths, stripping depths, tinning depth, and twisting strength. This digital-first architecture ensures faster changeovers and consistent repeatability across different wire batches.

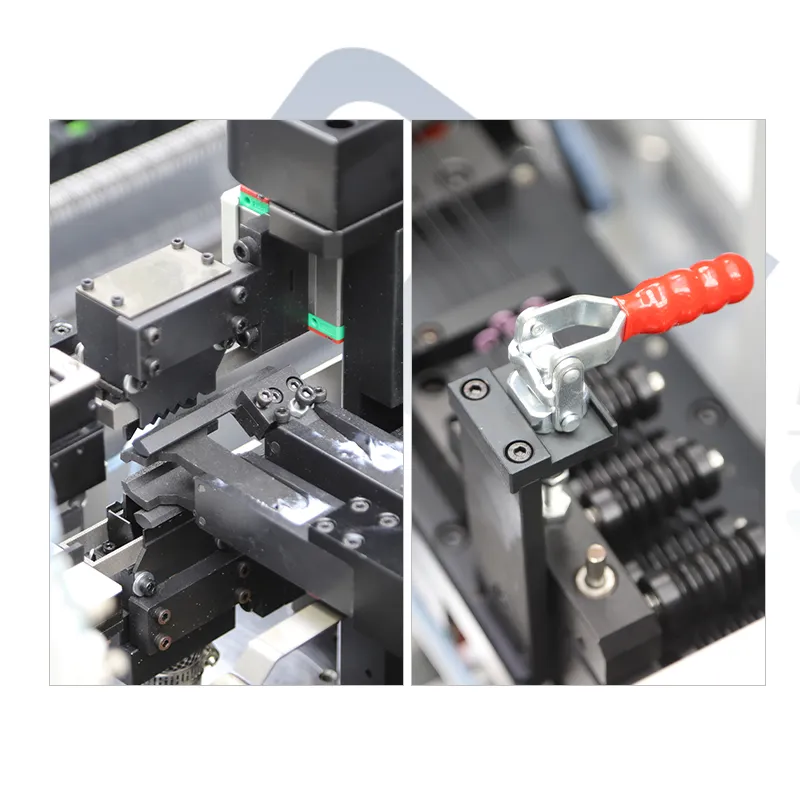

Accuracy is engineered into the core of the EW-7835. The cutting and stripping unit utilizes a high-precision ball screw driven by an independent servo motor—a significant upgrade over standard belt-driven guideways. This robust configuration guarantees a highly stable stripping performance and an exceptional cut-and-strip accuracy of L x 0.02, preventing conductor damage even on fine AWG 30 wires.

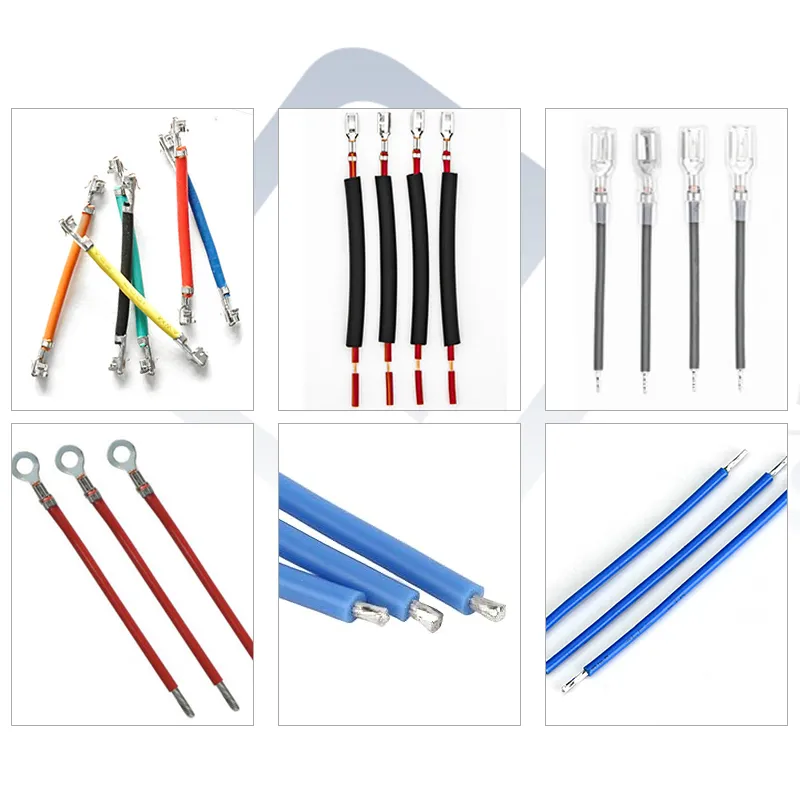

Maximize your shop floor footprint. The EW-7835 is designed to process up to five wires simultaneously, achieving a continuous output of 4,500 to over 5,000 pieces per hour (based on a 100mm cutting length). Whether your production requires standard double-end crimping or single-end crimping with opposite-end tinning, this machine delivers industrial-scale efficiency without compromising on terminal retention force.

Prevent defects before they reach your clients. The machine comes equipped with a suite of integrated detection systems, including wire run-out sensors, air pressure monitors, and paper winder sensors. Additionally, it is fully compatible with third-party Crimp Force Monitors (CFM) and features a built-in diagnostic interface that immediately alerts operators to any specific process anomalies, ensuring only flawless assemblies leave the production line.
