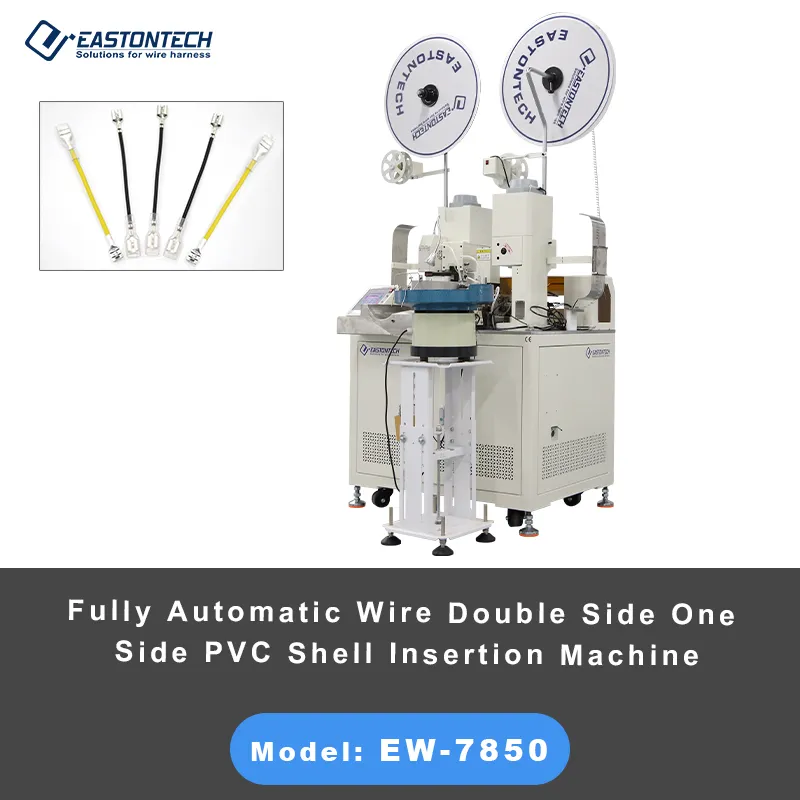

Model | EW-7850 |
Applicable wire range | AWG26-AWG14 |
Stripping length | 0.5-8.0mm, back 0.1-10mm |
Cut precision | ±2% |
Cutting length | 60-99999mm |
Capacity | 1500pcs/hour (L≤300mm) |
Crimping force | 2.0T-3.0T |
Stroke | 30mm |
Air pressure | |
Adapter sheath | 187, 250, 110 and other straight pipe type sheath |
Function | It can automatically complete cutting , stripping, wearing sheath and crimping |
Power | 220V/110V/50/60HZ |
Dimension | 800*700*1800mm |
Weight | 300Kg |
Options | CCD visual Inspection; CFM |

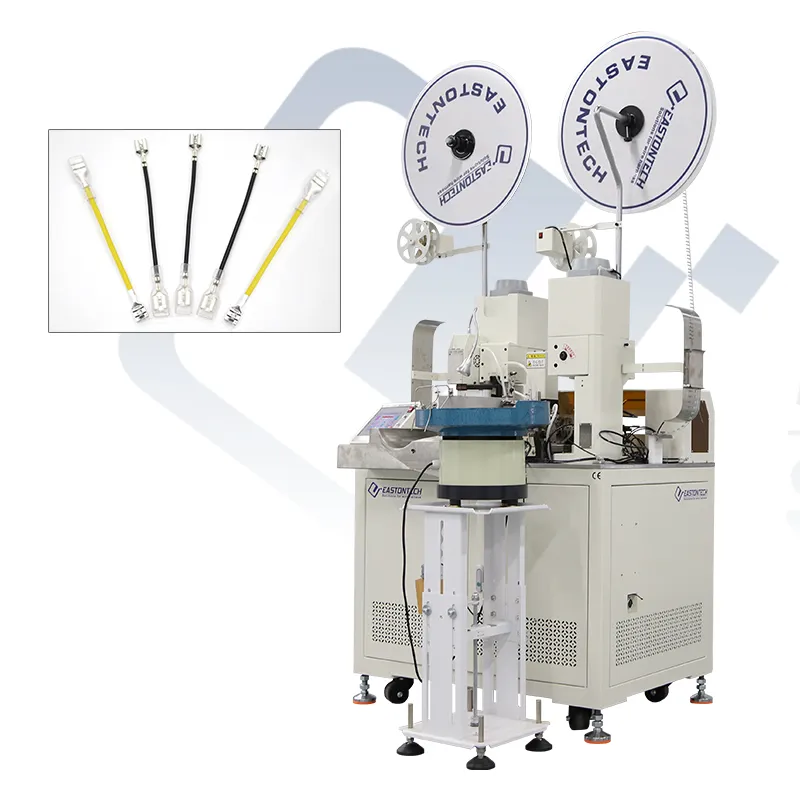

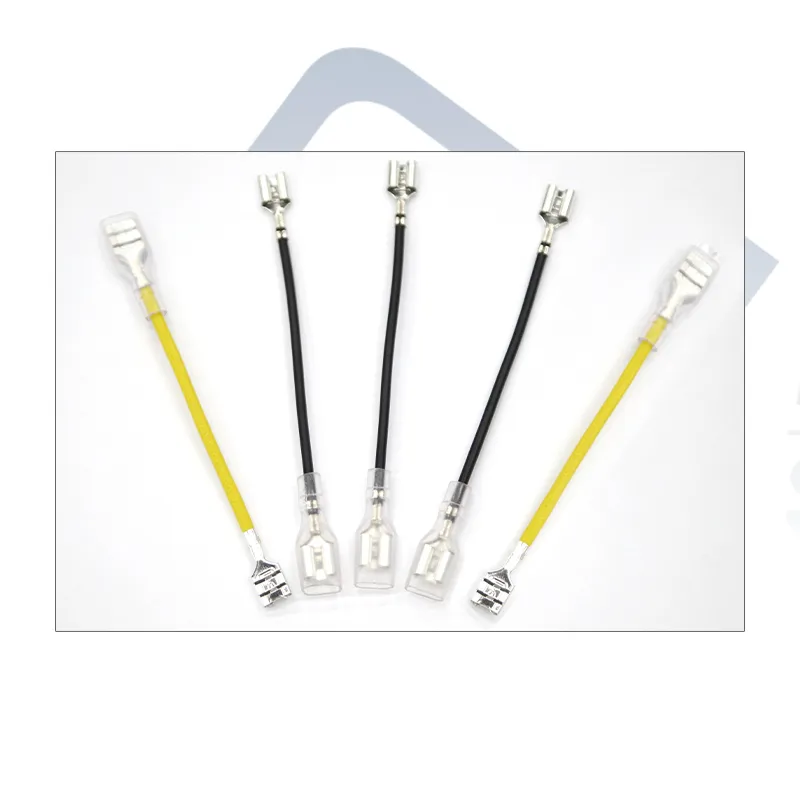

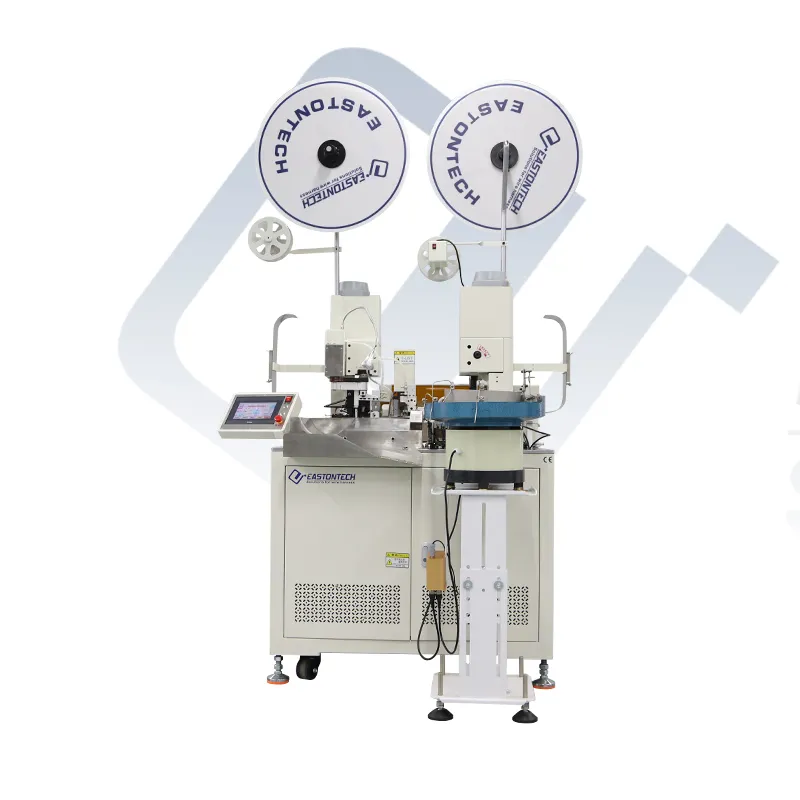

Executes cutting, dual-end stripping, double-terminal crimping, and single-end PVC sleeve insertion in one seamless sequence, achieving processing speeds of up to 1,500 pcs/h to eliminate manual labor bottlenecks.
Features an internal 4-wheel synchronized wire feeder that maintains constant wire tension, paired with a multi-axis motion control card offering 0.01 mm blade depth resolution for precise stripping across AWG #26–#14 wires.

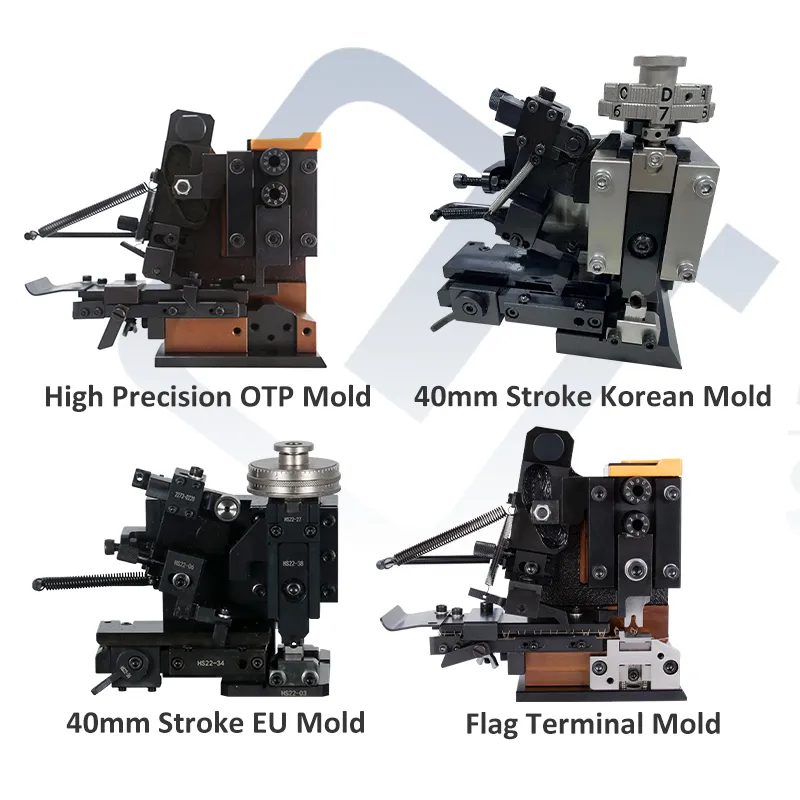

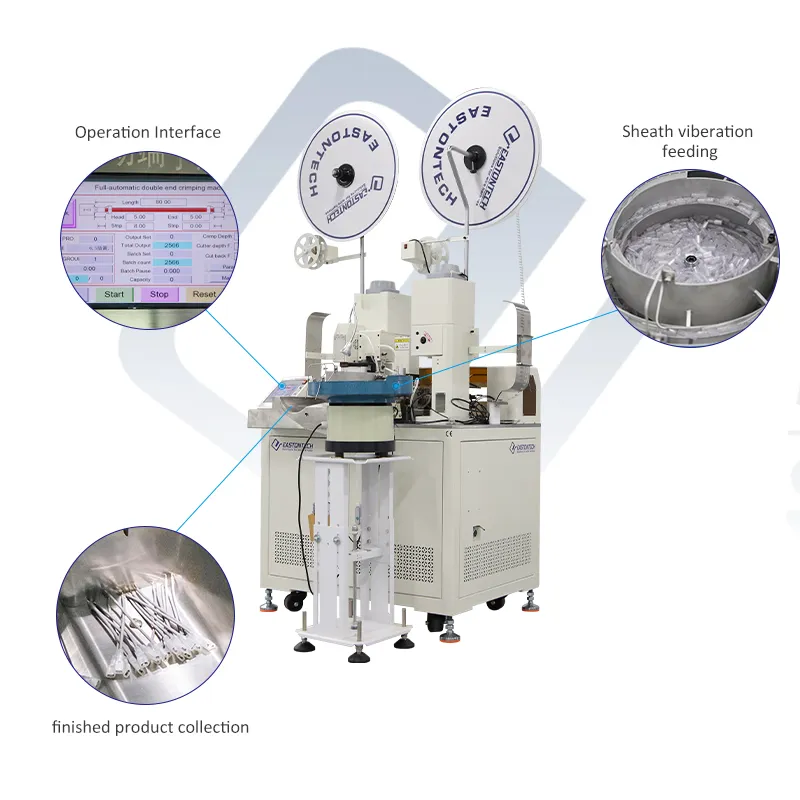

Fully compatible with both side-feed (horizontal) and end-feed (straight) OTP terminal applicators, featuring an automatic scrap terminal strip cutter and a intuitive bilingual (English/Chinese) touchscreen HMI for quick tool changeovers.
Equipped with multi-point sensor monitoring for air pressure, wire presence, crimp integrity, and housing alignment, automatically halting operation upon error detection to protect tooling and minimize material waste.
