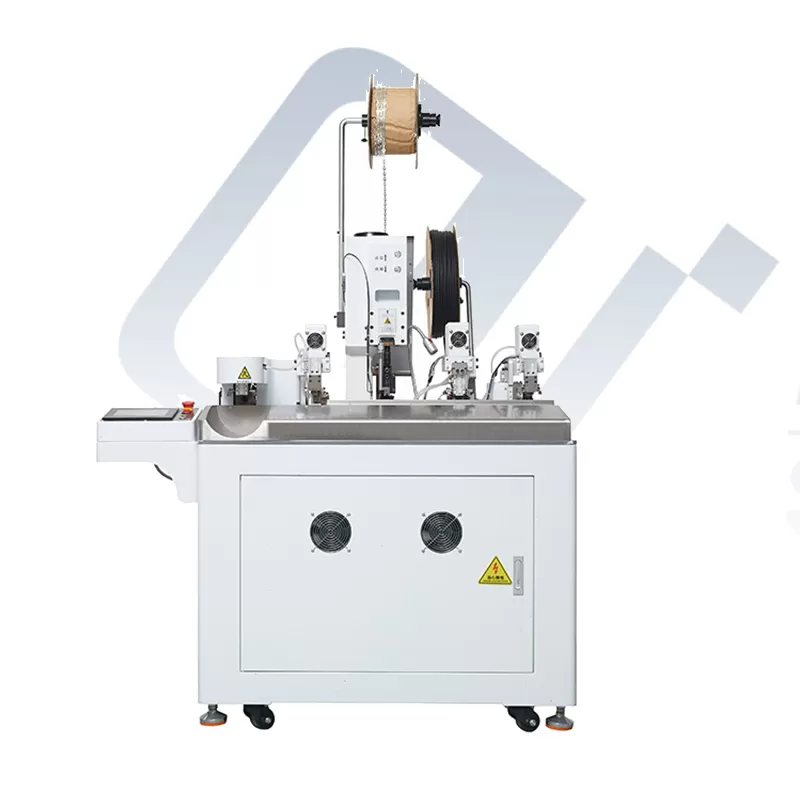

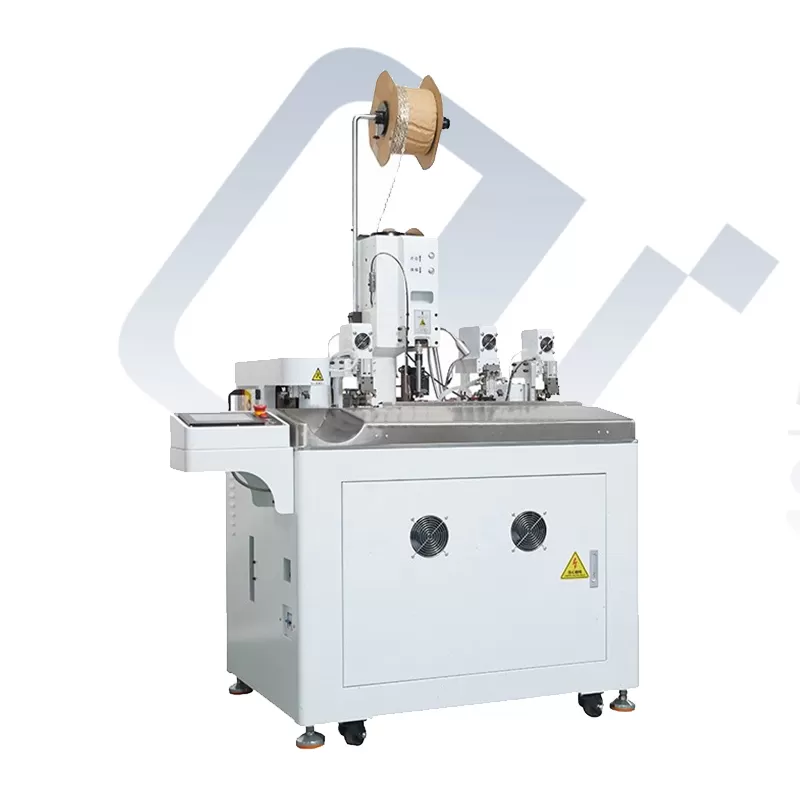

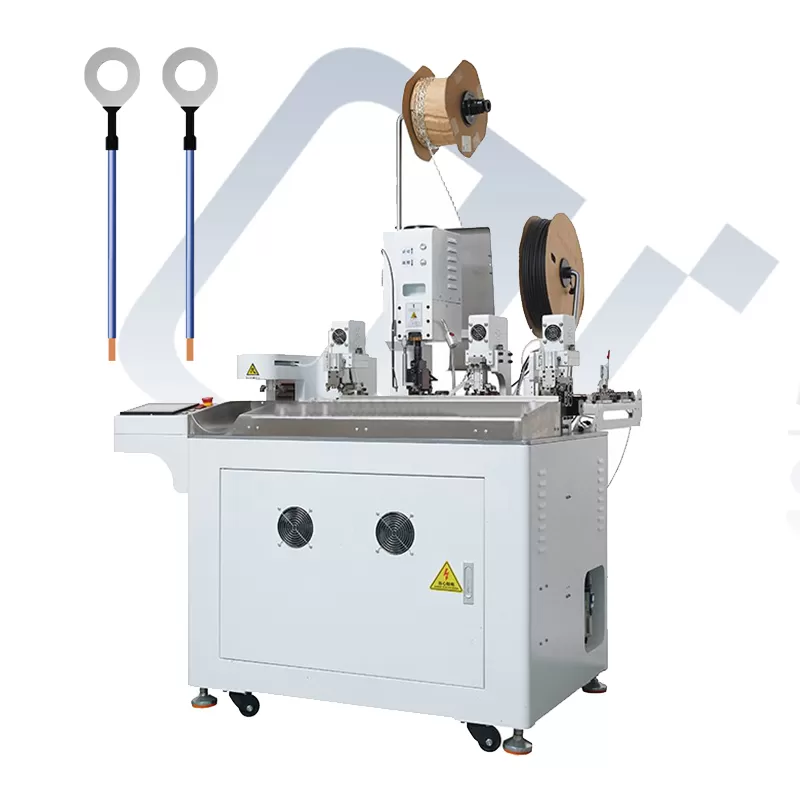

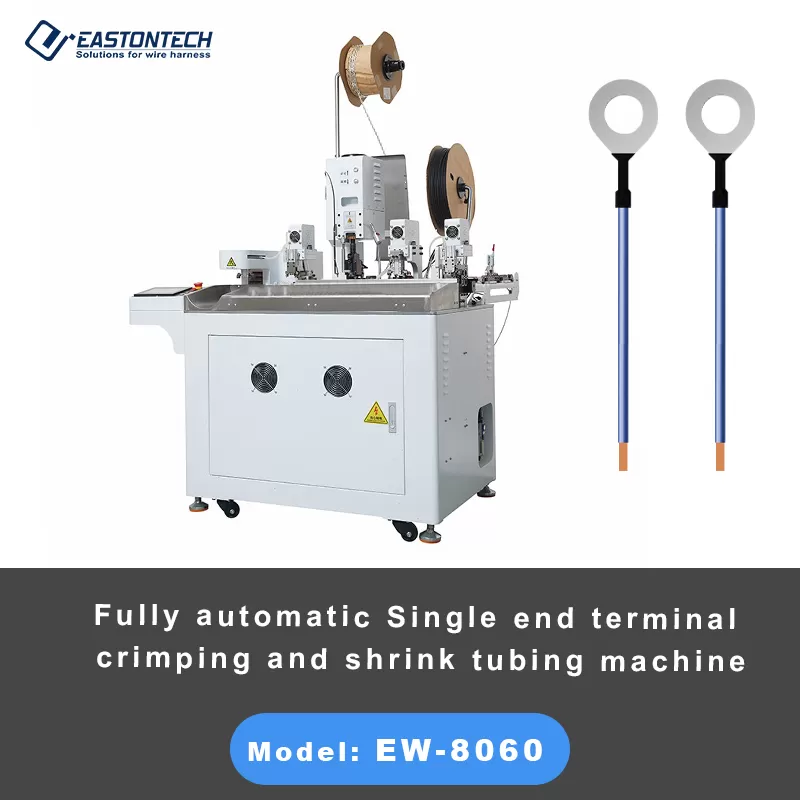

Model | EW-8060 |
Applicable wire range | AWG20-AWG10 |
Stripping length | Front: 0.5-8mm; Rear: 0.1-10mm |
Cut precision | ±(0.5+0.002*L) mm, L=cut length |
Cutting length | 75-9999mm |
Capacity | 1800-2000pcs/hour |
Crimping force | 2.0T |
Applicators | 30mm or 40mm strokes for optional |
Air pressure | 0.5Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
Power | 220V/110V/50/60HZ |
Cutting depth | The maximum adjustment is 5.50mm and the resolution is 0.01mm. |
Shrinkage tube size | 3.0-6.0mm Dia(15-28mm length) |
Dimension | 1450*800*1400mm |
Weight | 350Kg |
Power cord plug | European, USA, Chinese plug |

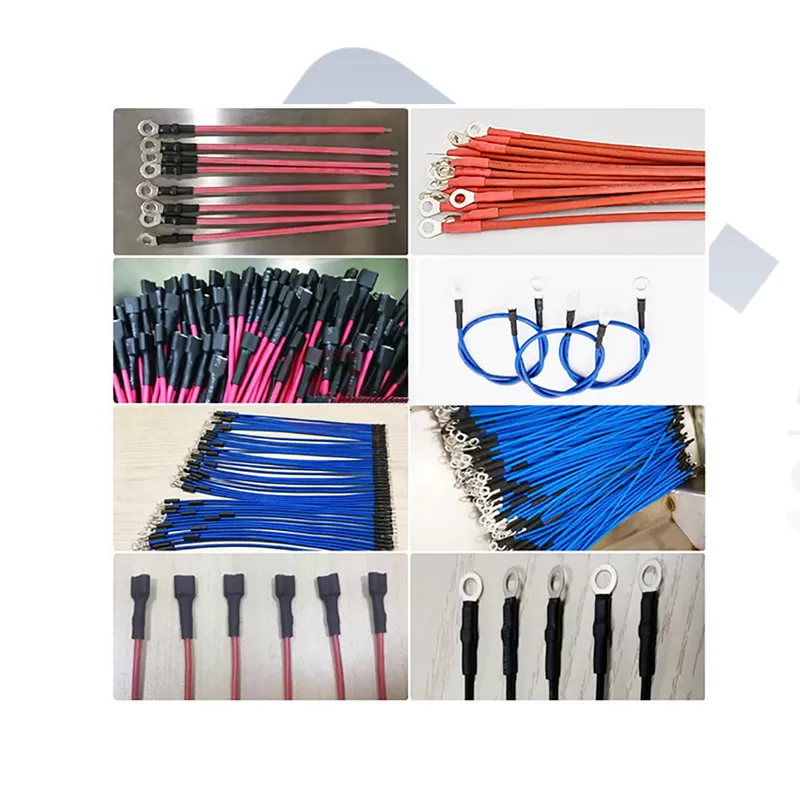

Maximized Workflow Efficiency: Integrates fixed-length wire cutting, dual-end stripping, single-end half-stripping, single-end terminal crimping, automated tube feeding/cutting, and localized heat-shrinking into one unified station. This complete automation drastically reduces manual intervention and boosts throughput up to 1,800–2,000 pcs/h.
Flawless Insulation Control: Features an advanced, automated sleeve feeding and localized thermal baking system. It handles heat-shrink tube diameters from φ3.0mm to φ6.0mm and lengths from 15mm to 28mm, ensuring consistent, uniform shrinking over terminal joints without compromising wire insulation or conductor integrity.

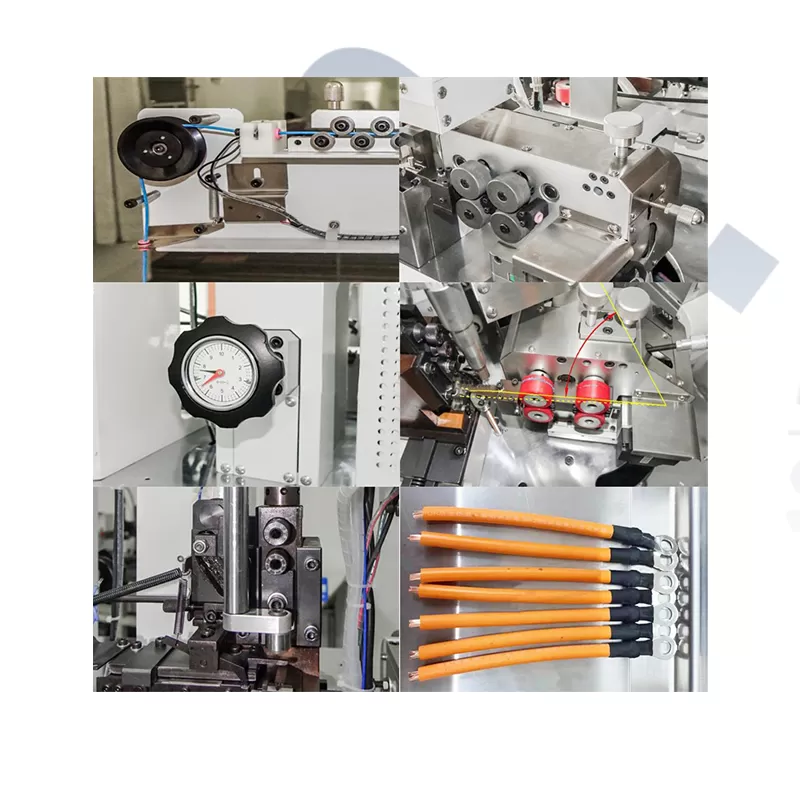

Uncompromising Stability & Longevity: Equipped with premium AirTAC pneumatic cylinders, high-torque Xuquan stepper motors, and ultra-smooth HIWIN linear guide rails. This robust hardware architecture guarantees high strip-and-crimp repeatability, minimal mechanical wear, and reliable 24/7 continuous operation.
Zero-Defect Production: Monitored by a comprehensive multi-point sensory array, including wire presence/knot detection, terminal crimp tracking, heat-shrink tube monitoring, and air pressure validation. Paired with a multilingual (English/Chinese) digital touchscreen LCD interface, operators can calibrate processing parameters instantly with absolute ease.
