Model | EW-8070 |
Applicable wire range | AWG22-AWG14 |
Stripping length | Front: 0.5-8mm; Rear: 0.1-10mm |
Cut precision | ±(0.5+0.002*L) mm, L=cut length |
Cutting length | 86-9999mm |
Capacity | 2000pcs/hour(L=80-100mm) |
Crimping force | 2.0T |
Applicators | 30mm or 40mm strokes for optional |
Air pressure | 0.5Mpa |
Detection | Wire run out, low air pressure, terminate error(Crimping force monitor is for optional) |
Power | 220V/110V/50/60HZ |
Cutting depth | The maximum adjustment is 5.50mm and the resolution is 0.01mm. |
Shrinkage tube size | 3.0-6.0mm Dia(12-18mm length) |
Dimension | 800*1400*1800mm |
Weight | 500Kg |
Power cord plug | European, USA, Chinese plug |

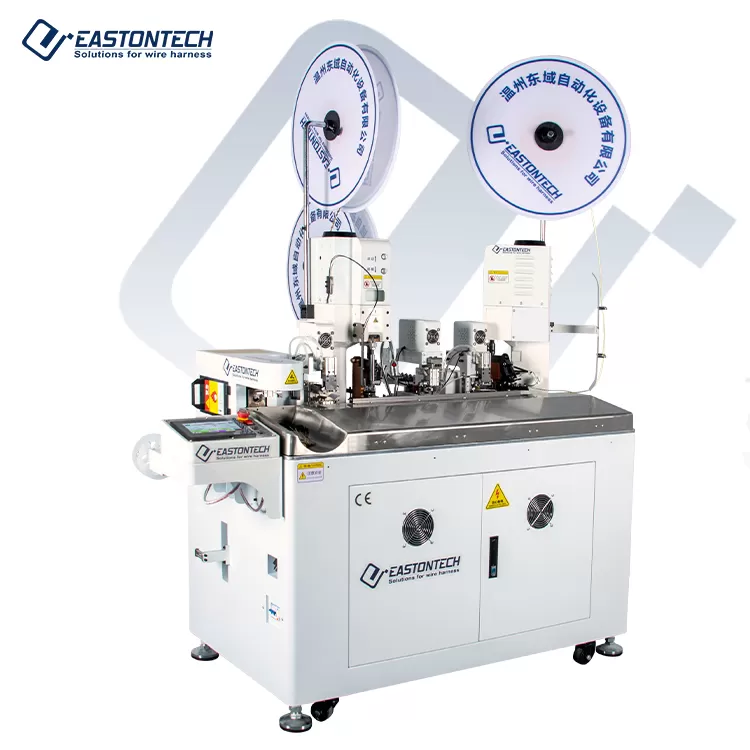

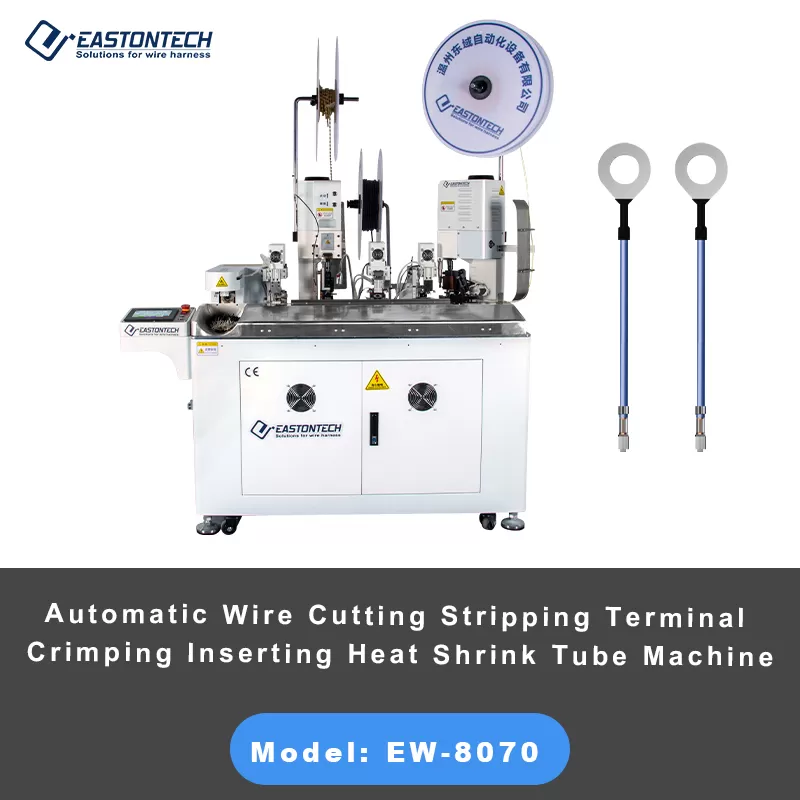

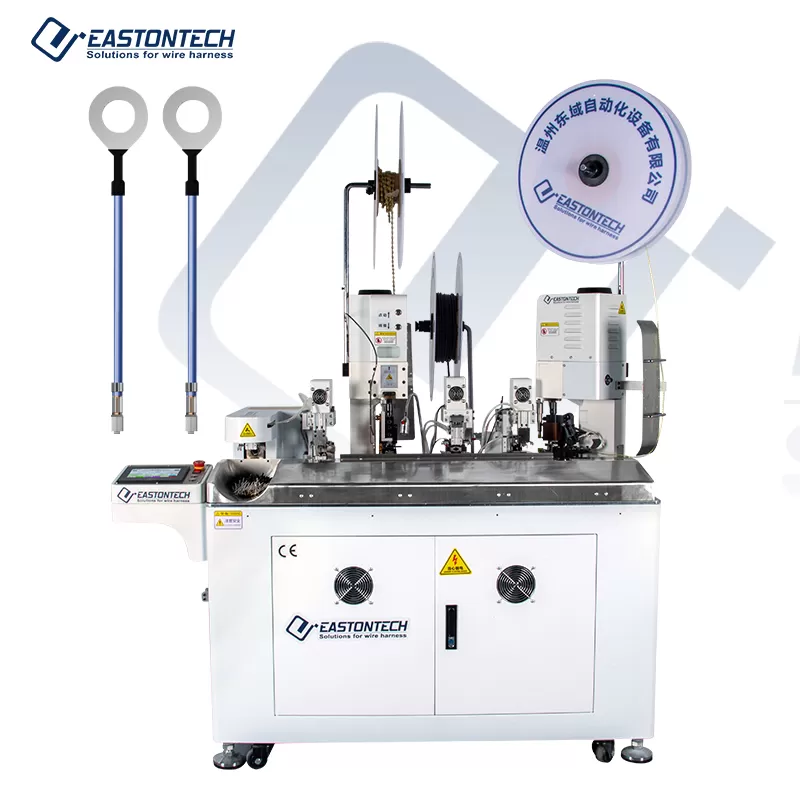

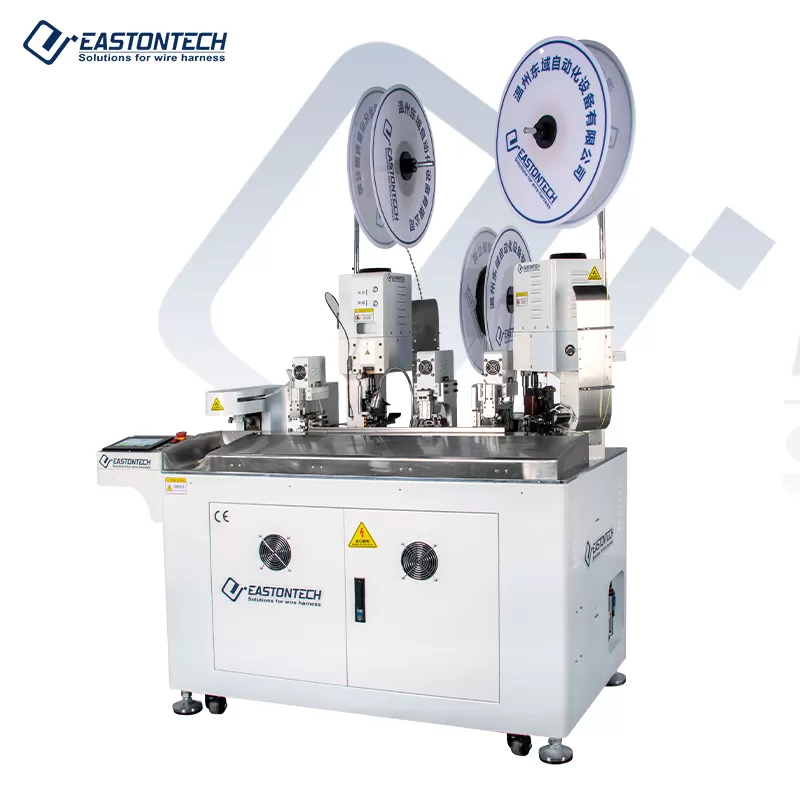

The EW-8070 transitions flawlessly from wire cutting and stripping to terminal crimping and heat-shrink sleeve application. By automating the "cutting-crimping-sleeving-baking" cycle, it significantly reduces labor costs and minimizes the risk of human error in sleeve positioning and thermal processing.
Equipped with a high-resolution cutting depth adjustment (0.01mm) and an advanced motion control card, the machine achieves a cutting precision of ±(0.5 + 0.002 * L) mm. This ensures consistent strip lengths and prevents conductor damage, meeting the stringent quality standards of the automotive and medical electronics sectors.
To ensure 24/7 reliability, the EW-8070 features a comprehensive sensing array that monitors wire run-out, air pressure fluctuations, and crimping abnormalities. An optional crimping force monitor (CFM) is available to provide real-time cross-sectional analysis and terminal quality verification for every cycle.

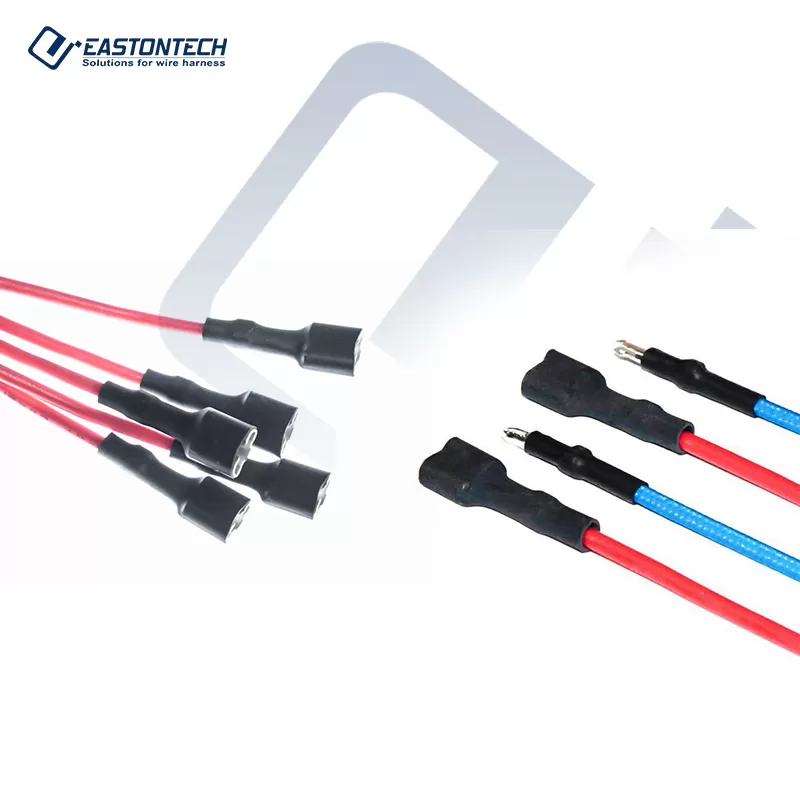

The machine features a specialized heating station designed for 3.0-6.0mm diameter heat-shrink tubes. This system provides uniform heat distribution to ensure a perfect 360° seal around the terminal/wire junction, enhancing the mechanical pull-off force and environmental insulation of the final product.
