Model | EW-8145 |
Applicable wire range | AWG22-AWG14 |
Stripping length | Front: 0.5-8mm, Rear: 0.1-10mm |
Cut precision | ±(0.2+0.002*L) mm, L=cut length |
Cutting length | 66-99999mm |
Capacity | 700-900pcs/hour (L=80-150mm) |
Crimping force | 2.0T |
Stroke | 30mm or 40mm strokes for optional |
Air pressure | 0.6-0.8Mpa |
Cutting depth | maximum adjustment 5.50mm, resolution 0.01mm |
Dimension | 800x1800x1800mm |
Weight | 800Kg |
Options | CCD visual Inspection; CFM |

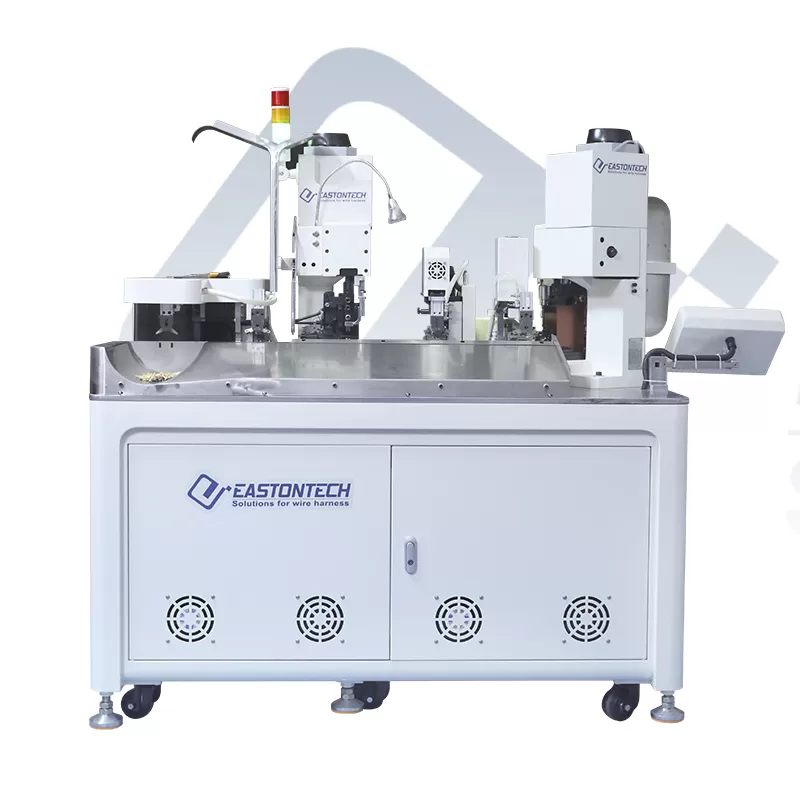

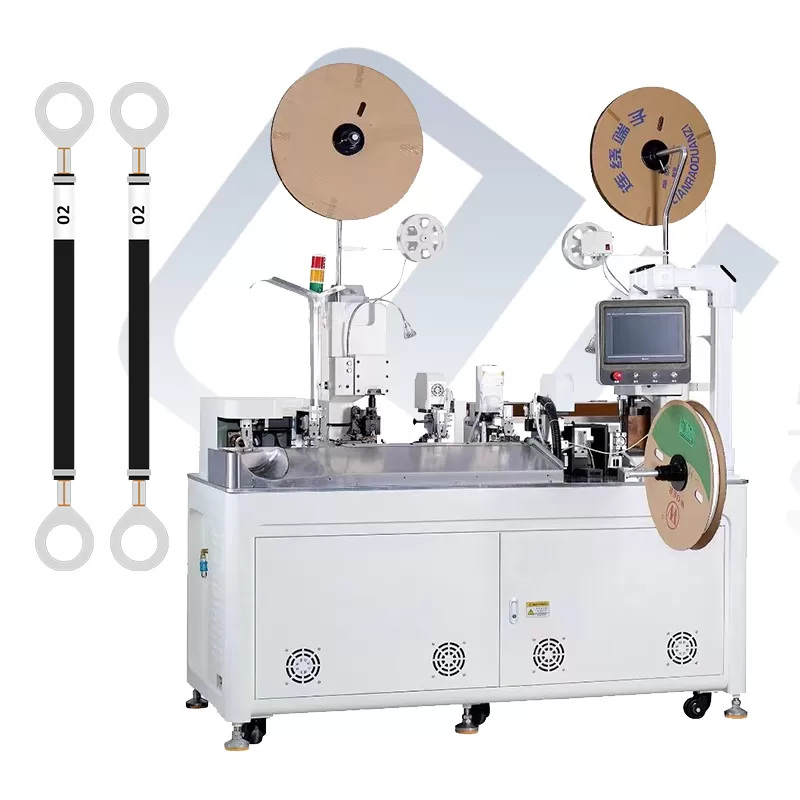

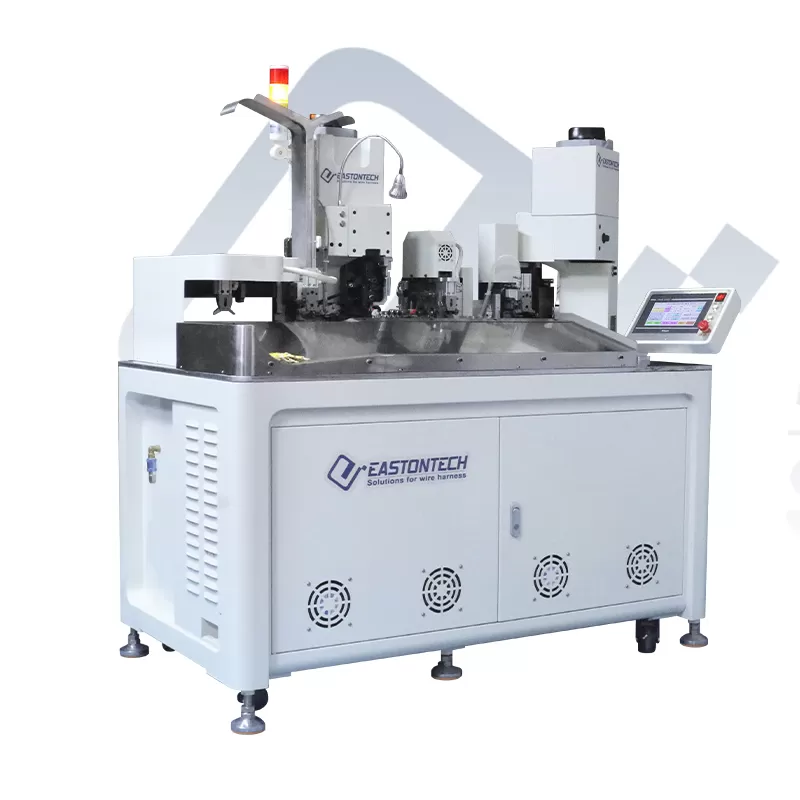

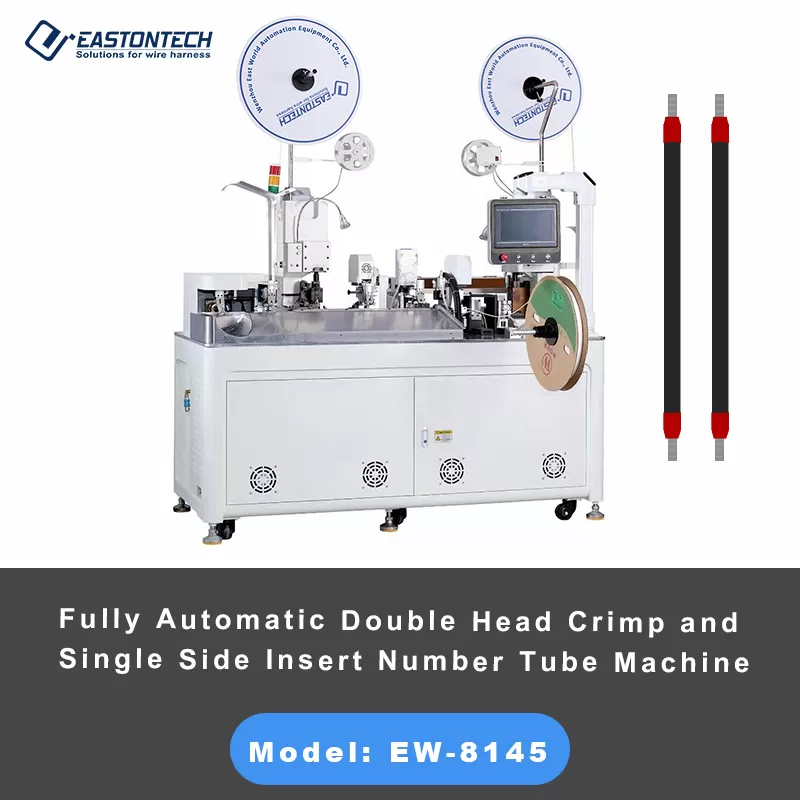

The EW-8145 performs high-speed terminal crimping on both wire ends while simultaneously executing automated marker tube insertion on one side. This parallel processing architecture maximizes throughput, reaching up to 900 pieces per hour, making it an ideal choice for high-volume production environments.
Equipped with a dedicated Ring Baking Oven, the machine ensures 360-degree uniform heat distribution for heat-shrink tubing. This technology guarantees a tight, wrinkle-free fit around the wire without damaging the insulation or the terminal, ensuring professional-grade finishing for every lead.

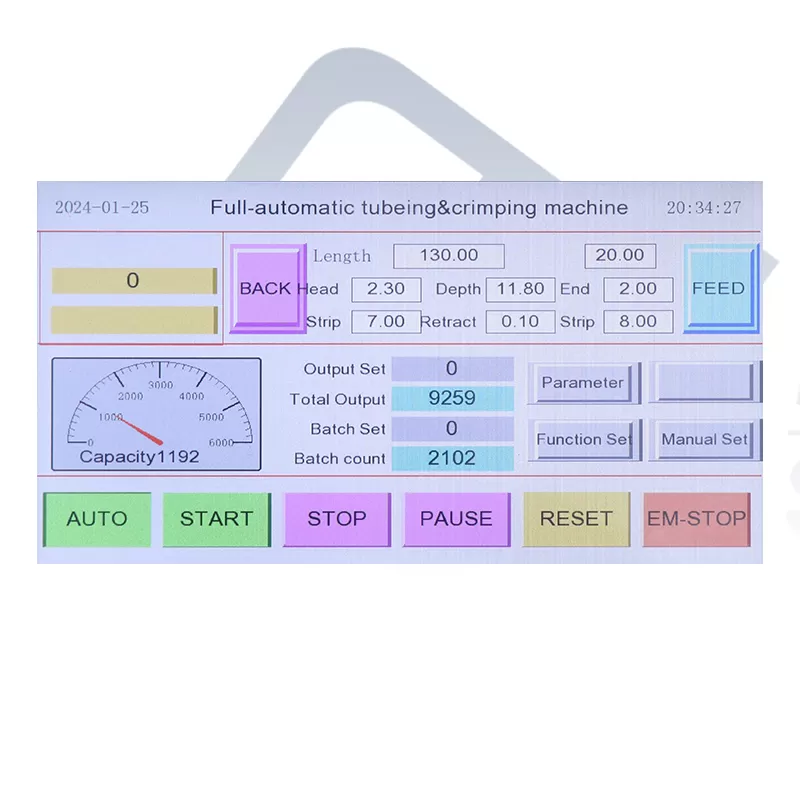

Utilizing a high-resolution cutting system (0.01mm resolution) and a 2.0T precision crimping press, the EW-8145 maintains strict tolerances. The intuitive Bilingual (English/Chinese) Touchscreen allows operators to fine-tune stripping lengths and cutting depths in real-time, ensuring zero-defect processing even for delicate AWG22-AWG14 wires.
Designed for versatile industrial applications, the machine is compatible with horizontal, straight, and flag-type molds. To meet the most stringent industry standards (such as automotive or medical), the EW-8145 can be upgraded with optional CCD Visual Inspection and Crimp Force Monitoring (CFM) systems to detect and reject defects automatically.
