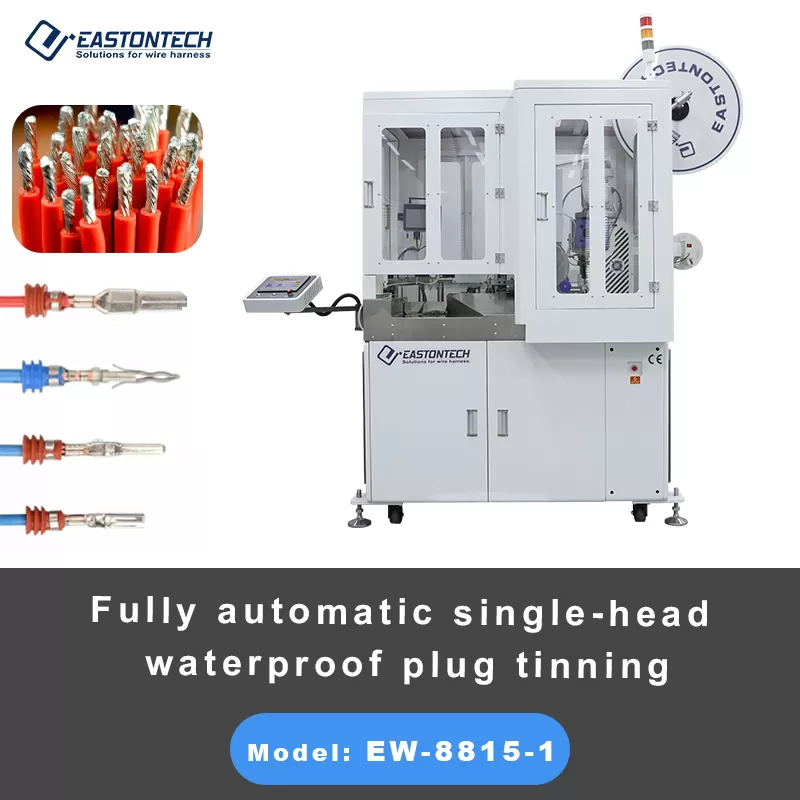

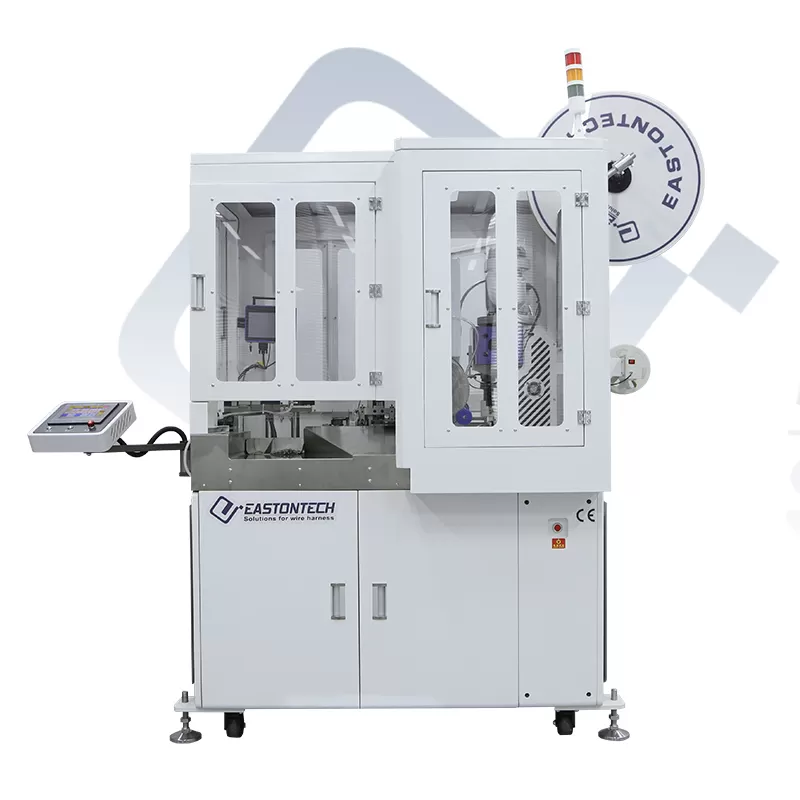

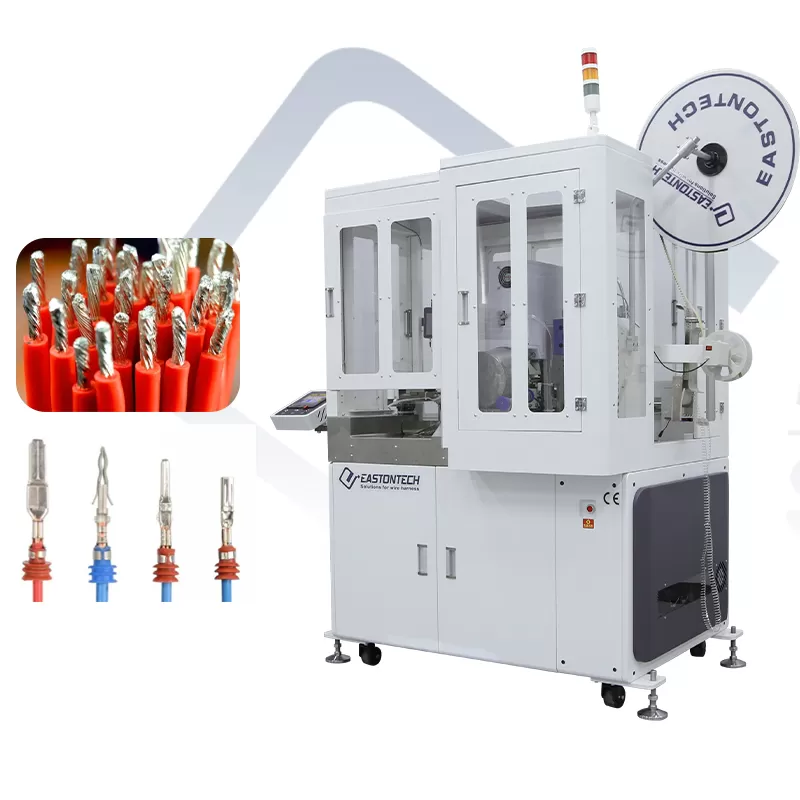

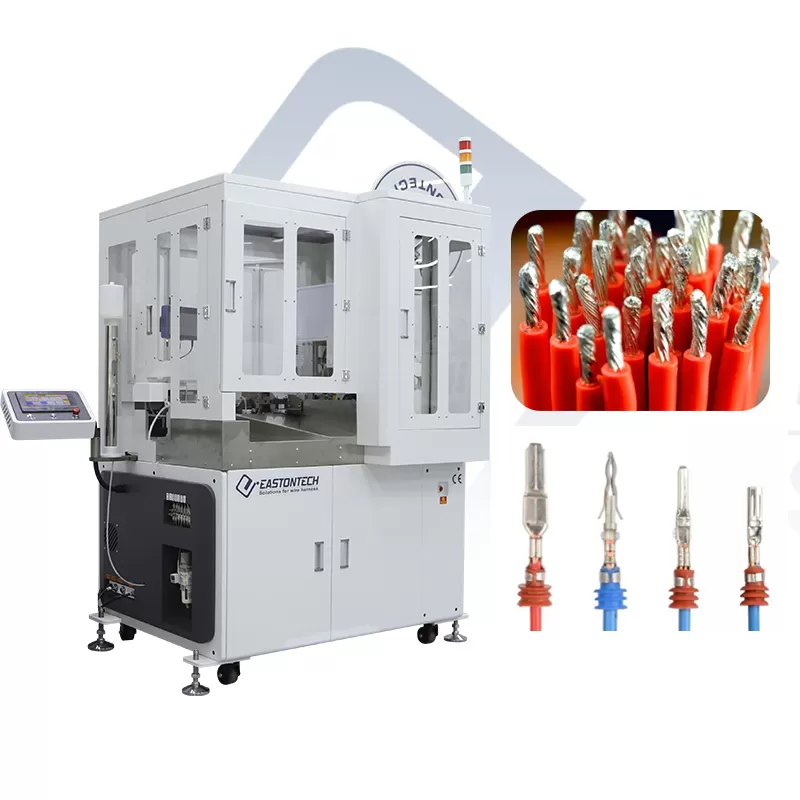

Model | EW-8815-1 |
Appearance size | L 1700*W 1150*H 1550 |
Weight | 708kg |
Placement space | 5m2 |
Power supply | AC220/50Hz |
Power | 3000W |
Air pressure | Within 6 kg |
Terminal machine | Casting type precision terminal machine |
Suppress ability | 2T |
Rubber stopper transfer | Special rubber plug machine |
Display mode | Touch screen LCD display |
Function | Wire fixed length cutting and stripping, single end plugging, pressing end, tinning |
Applicable wire | Electronic wire, high temperature wire, halogen-free wire, Teflon wire, etc. |
Capacity | 1200～1700 pieces/hour based on 100mm length |
Applicable wire diameter | 30#-16# |
Cutting processing accuracy | Within ±0.1 (0.1 + 0.003 * L) mm, L = cutting length |
Peeling method | Screw rod independent stripping |
Minimum glue length | The glue left in the middle of the standard machine is 17mm (special non-standard can be shorter to 12mm) |
Peeling mouth length | The front stripping machine is within 15mm, and the rear stripping machine is within 18mm (variable) |
Tin dipping depth | 18mm(changeable) |

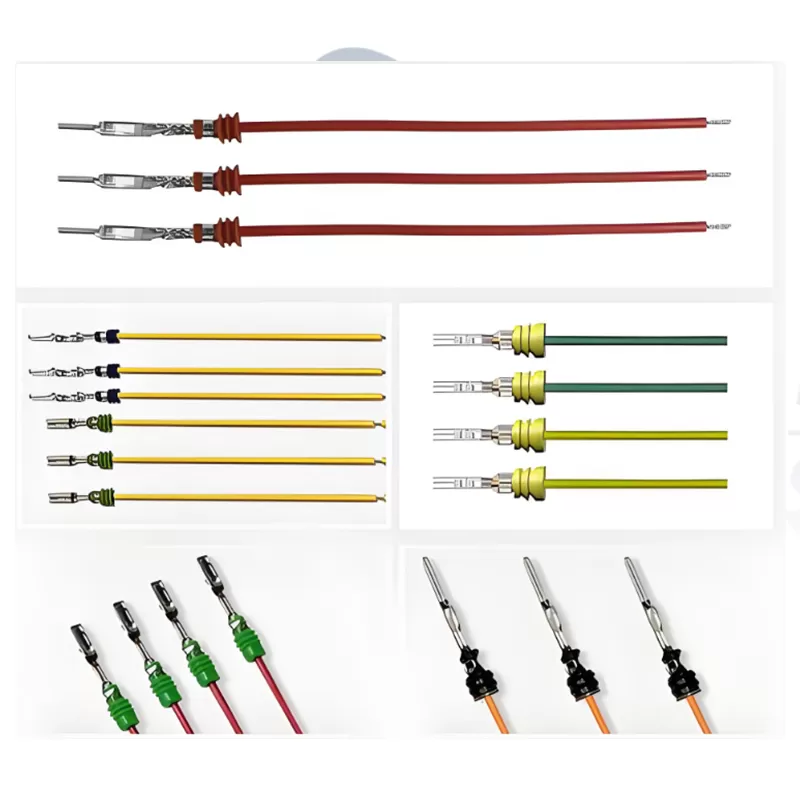

Integrated with an advanced, automated weather seal module fed by a dedicated vibratory bowl system, the machine guarantees flawless orienting and precise placement of waterproof plugs onto the wire end. This eliminates manual labor bottlenecks, ensuring 100% consistent sealing depth and structural integrity required for IP-rated automotive and outdoor electronics.

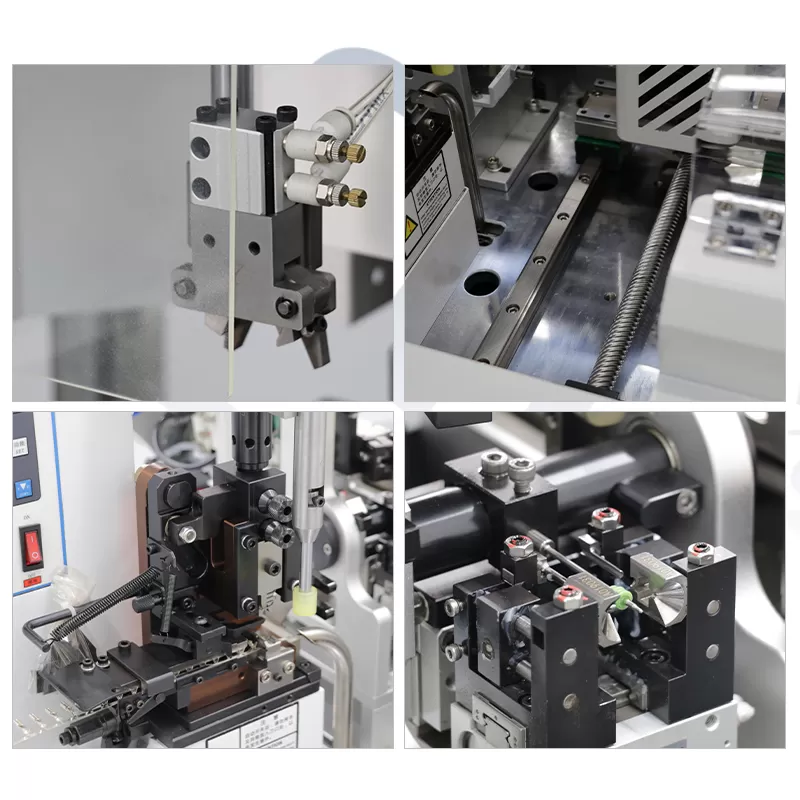

Designed for maximum productivity, the EW-8815-1 perfectly synchronizes high-speed mechanical arms with a powerful 2.0T servo-driven crimping press and an optional automated tinning module. By executing stripping, sealing, crimping, and tinning in a single sequence, it maximizes throughput while minimizing material waste and floor space.
Equipped with premium-grade blades and ultra-precise servo control mechanics, the system boasts a cutting tolerance tight within ±0.1(0.1+0.003×L)mm. It delivers immaculate strip lengths (up to 18mm front strip and 20mm rear strip) without scoring or damaging the inner copper conductors, meeting the strictest IPC/WHMA-A-620 quality standards.
Featuring a robust PLC controller paired with a user-friendly, multi-touch LCD display screen, operators can adjust stripping lengths, cutting depths, and processing speeds on the fly. The intelligent system includes built-in sensors for real-time error detection (such as seal misfeed or wire running out), minimizing downtime and ensuring effortless, mistake-proof operation.
