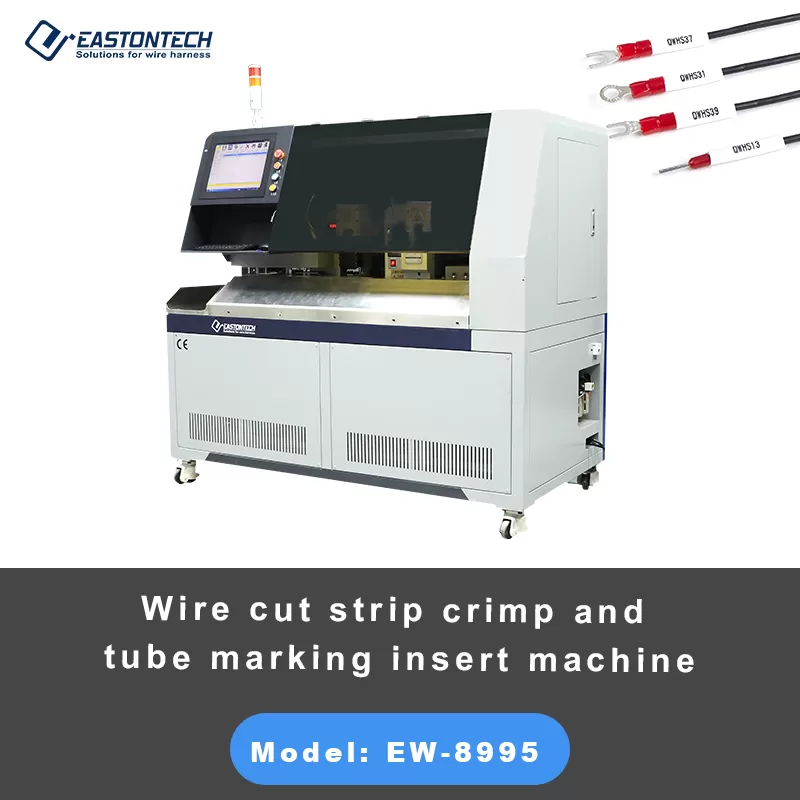

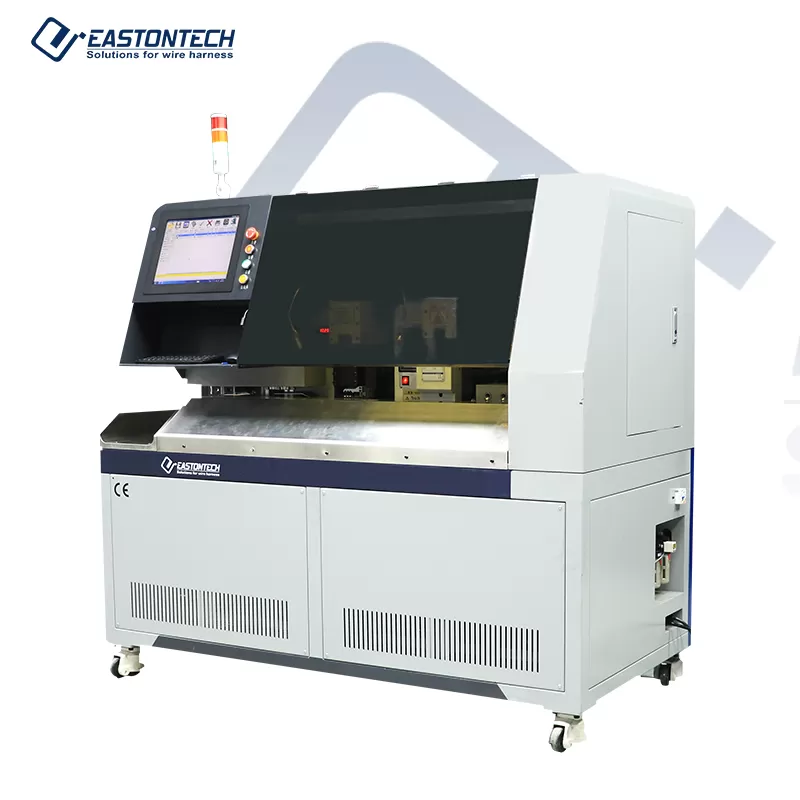

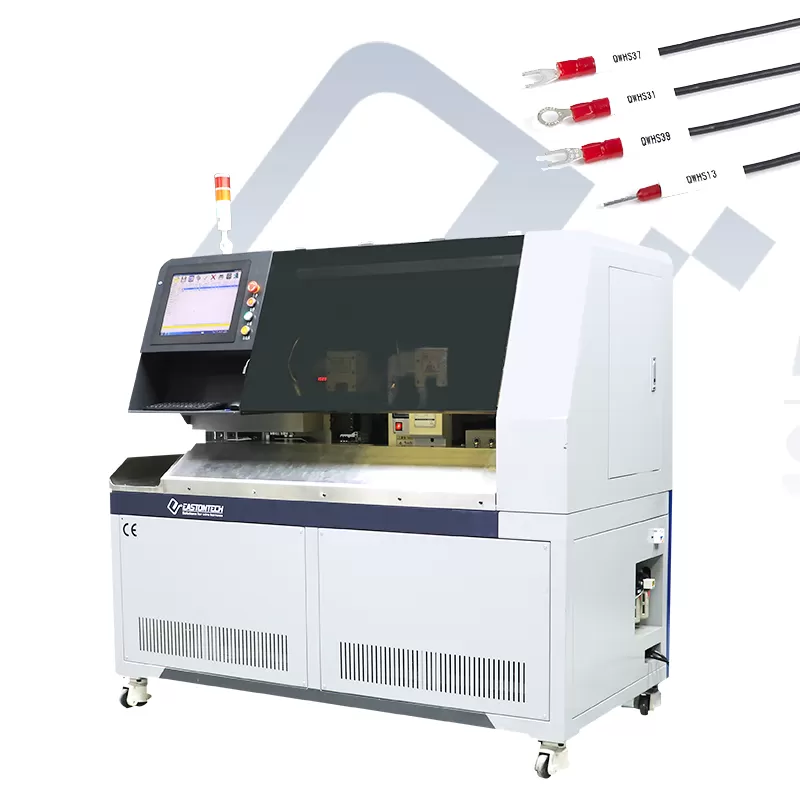

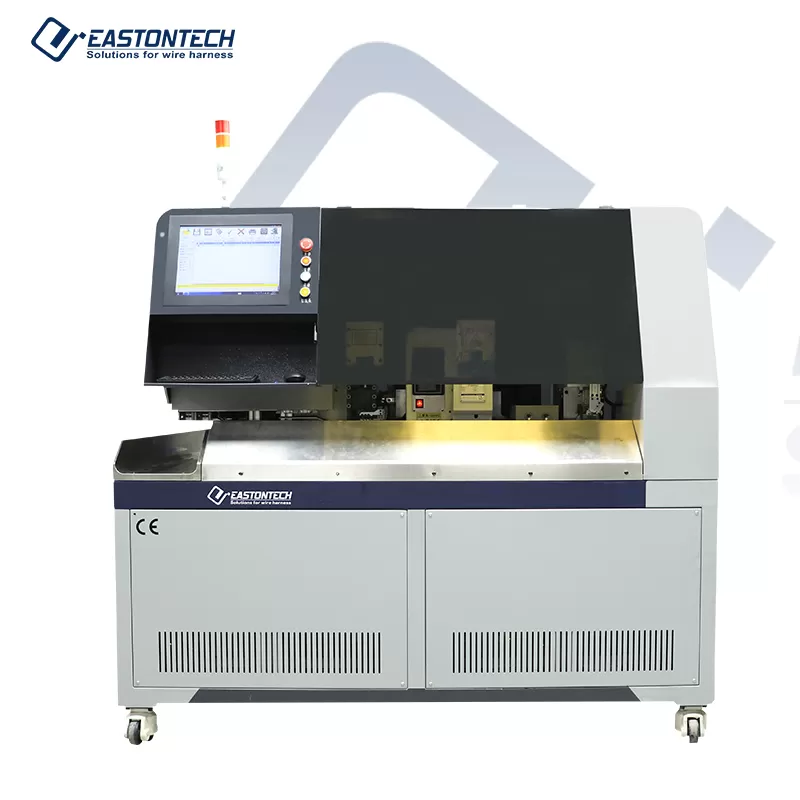

EW-8995 Wire Cut Strip Crimp and Tube Marking Insert Machine

Machine Function

Marking, wire removal, conduit insertion, and single/double-end terminal crimping are all completed in one go, and various testing functions are included.

Applicable wire diameter

0.5mm²-4.0mm² (Other wire diameters can be customized; flexible wire can be processed)

Processing speed

400-500 pieces/hour (depending on the operation method and line length)

Wire cutting length

260-9999mm

Cutting precision

±1mm (+set cutting length * 0.02)

Peeling length

0.1-15.0mm

Suppressing ability

2T crimping module, equipped with 4 types of terminal trays (additional options available).

Control method

ARM

Detection capabilities

Check for the presence of wires, check for overly tight wires, check for knotted wires, check for abnormal insulation stripping, check for decreased air pressure, check for the presence of terminals, and check for crimped terminals.

power supply

220V 50/60Hz

Compressed air

0.4Mpa-0.5Mpa (Air consumption approximately 130NI/min-180NI/min)

Terminal feeding

Loose terminal robotic loading

Wire feeding machine

Pre-layout straightening function

take-up machine

Single-slot automatic wire take-up

Terminal crimping assembly

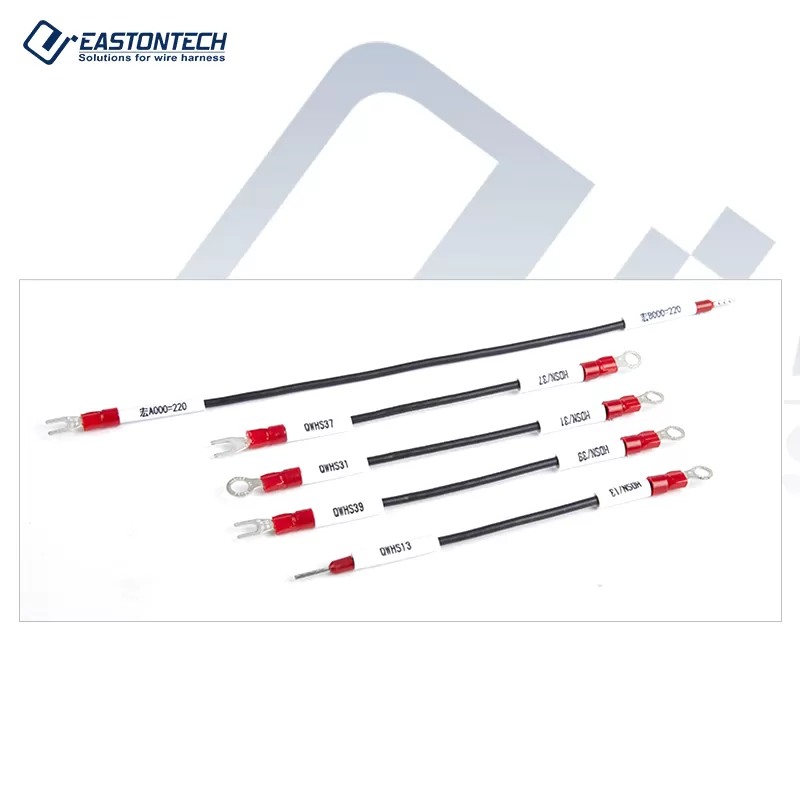

The terminals at both ends of the wire can be combined arbitrarily. For example, the two ends of a 1.5mm² wire can be crimped using one crimping machine and one terminal spool, saving costs.

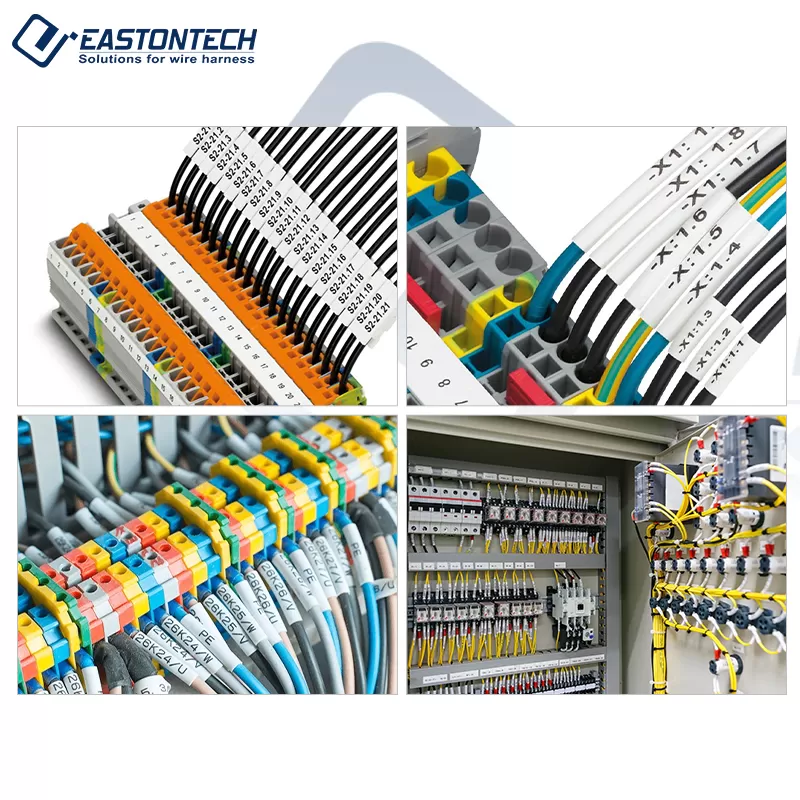

Printing unit

Equipped with a standard printing unit

Adjustable font size and thickness, adjustable number tube length, front and back character marking, 19 characters printed in a 30mm segment, capable of double-line printing;

Difference between the inner diameter of the number tube and the outer diameter of the wire: ≤0.4mm

Number tube length

15-30mm

Number tube direction

The number tube can be freely set to either forward or reverse, conforming to wiring standards.

Number Position

The position of the number tubes can be freely adjusted (all at one end, all in the middle, or one at each end).

Operating temperature range

-10℃~45℃ (Recommended operating ambient temperature: 15℃~30℃)

Warranty period

1 year (The warranty period is calculated from the date of completion of equipment installation and commissioning and formal production, excluding damage to vulnerable parts of the equipment and molds and damage caused by human factors. Vulnerable parts include: blades, cutter holders, and printing auxiliary rubber wheels)

Warranty Coverage

Main unit, wire feeder, wire take-up machine, mold body

Main unit size

1850mm*1530mm*1657mm
