Name: EW-9375 Full Automatic Double-Side Ultrasonic Wire Welding Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

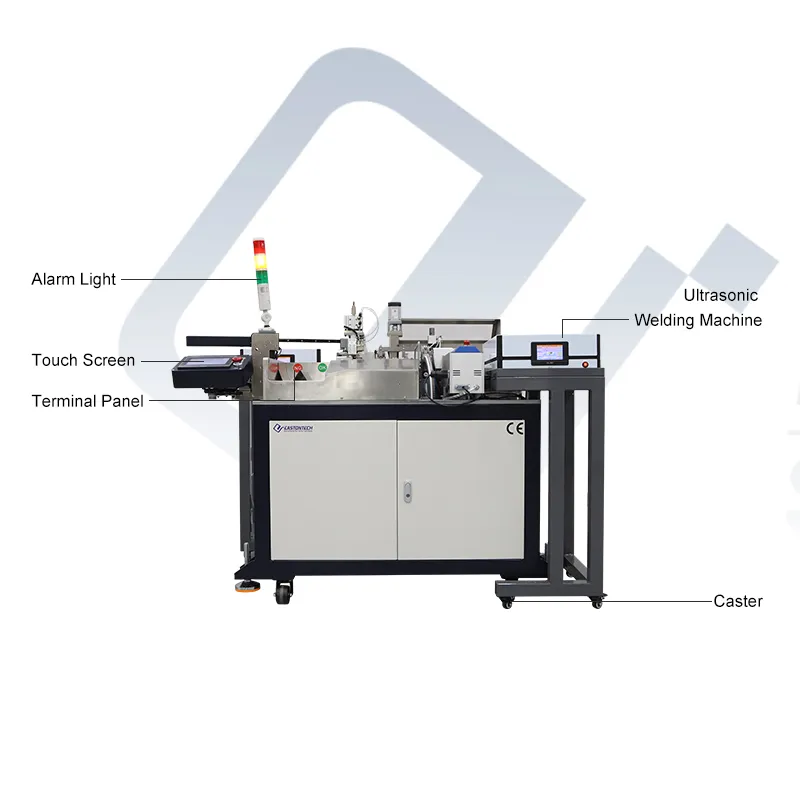

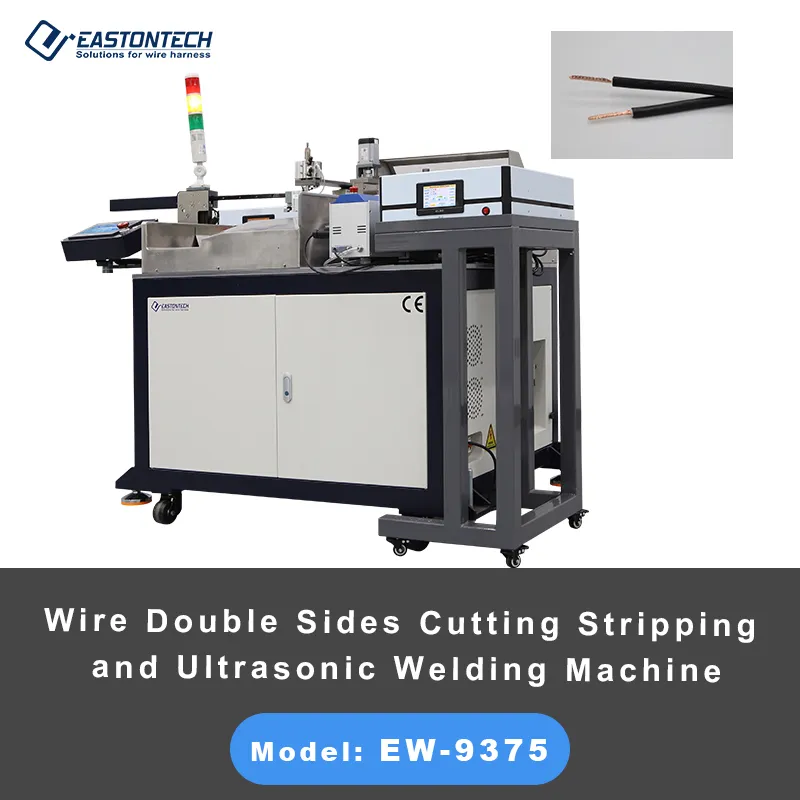

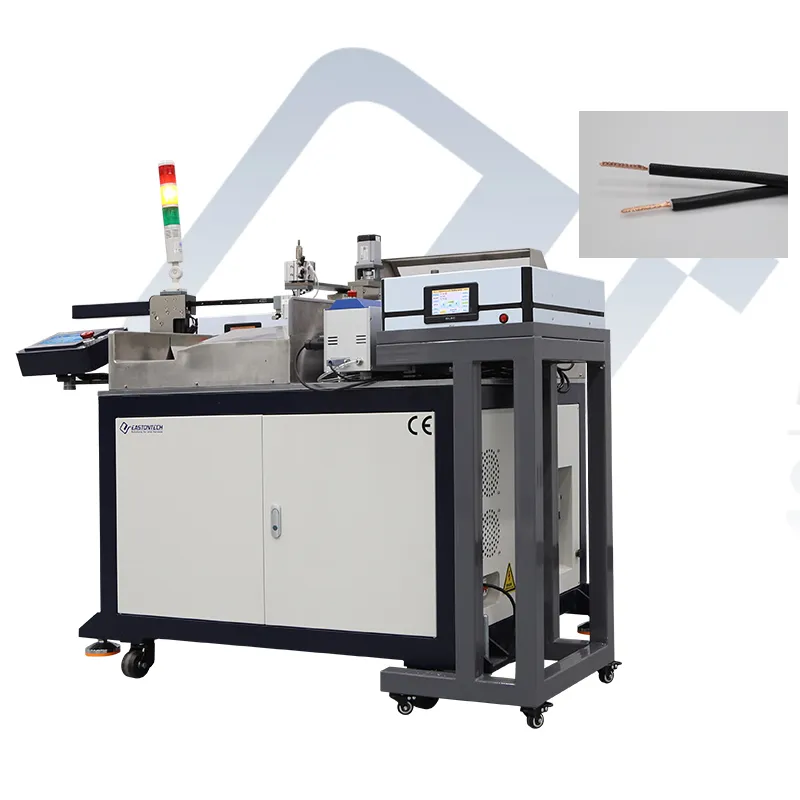

EW-9375 Full Automatic Double-Side Ultrasonic Wire Welding Machine

The EW-9375 is an advanced, fully automated wire processing workstation engineered for high-precision wire harness manufacturing. By seamlessly integrating precision double-end servo crimping with high-frequency ultrasonic wire welding, the EW-9375 executes wire cutting, stripping, terminal crimping, and solid-state ultrasonic splicing in a single continuous cycle. Designed to meet the stringent quality standards of automotive, new energy, and industrial electronics, this integrated platform eliminates manual wire transfer, drastically reduces cycle times, and guarantees ultra-low contact resistance across all processed wire assemblies.



Specifications of EW-9375

Model	EW-9375
Control method	Single-chip computer
Cutting length	50mm-9999mm

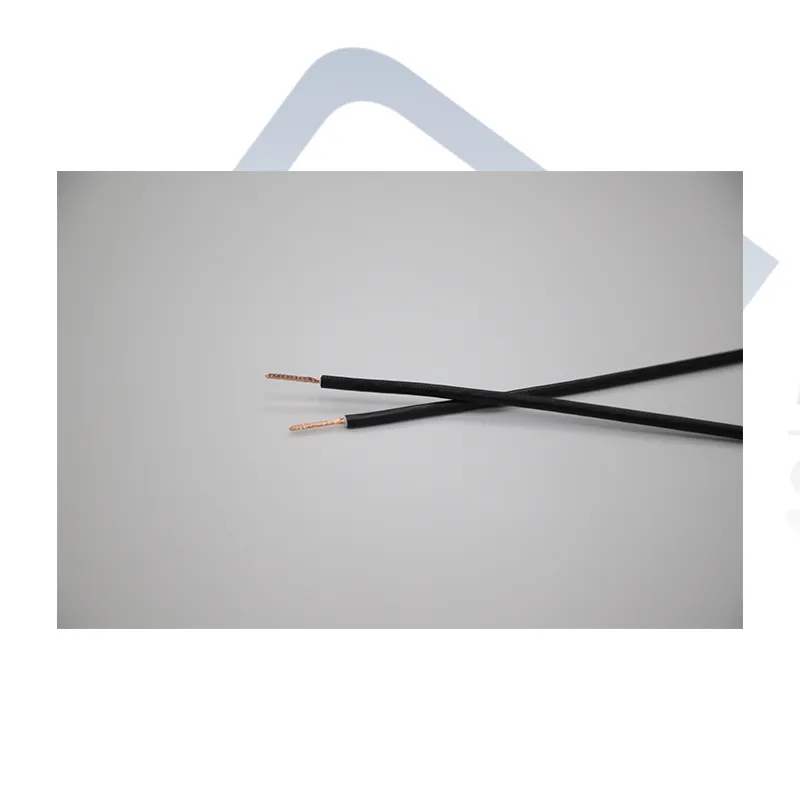

Stripping length	1-15mm (Stripping length can be customized)
Maximum output power	3000W
Operating frequency	20HZ
Welding time range	0.5S-2S
Welding area range	0.5-6mm2
Operating humidity	0-40°
Working Air Pressure	0.2-0.8MPa
Environmental temperature	20-70°
Dimension	1150* 850*1850mm

Features of EW-9375



All-in-One Automated Processing

Integrates high-speed wire cutting, dual-end stripping, servo terminal crimping, and 20 kHz ultrasonic wire welding into a single continuous workflow, maximizing throughput while eliminating manual handling errors.

01


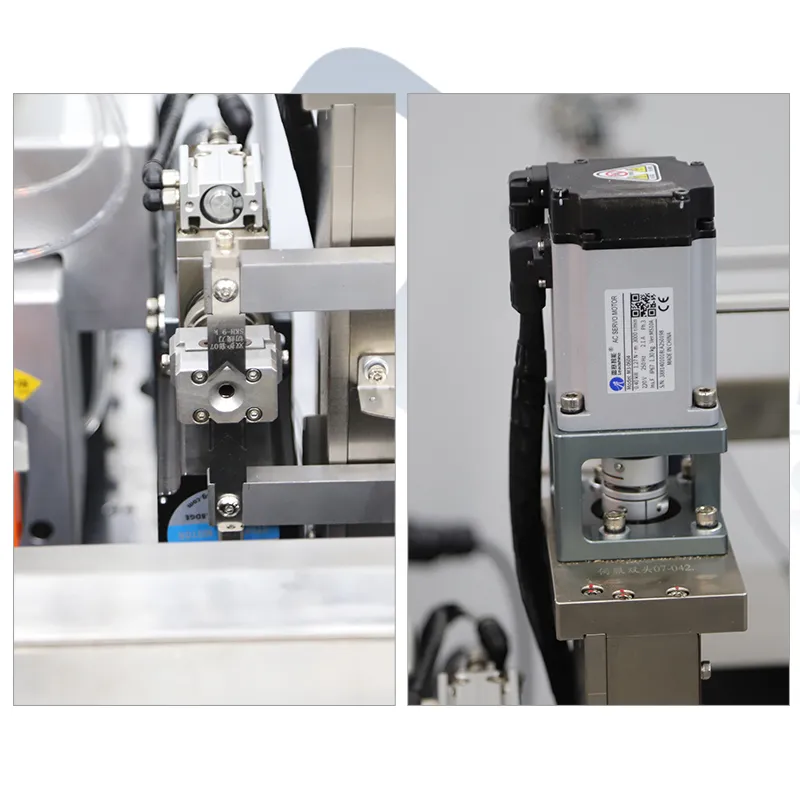

Precision Servo & Ball Screw Kinematics

Driven by high-torque servo motors and precision ball screw mechanisms, the machine delivers exceptional stroke repeatability and a stable crimping force of 2.0 T–4.0 T across wire cross-sections from 0.3 mm² to 6 mm² (AWG 24–AWG 10).

02


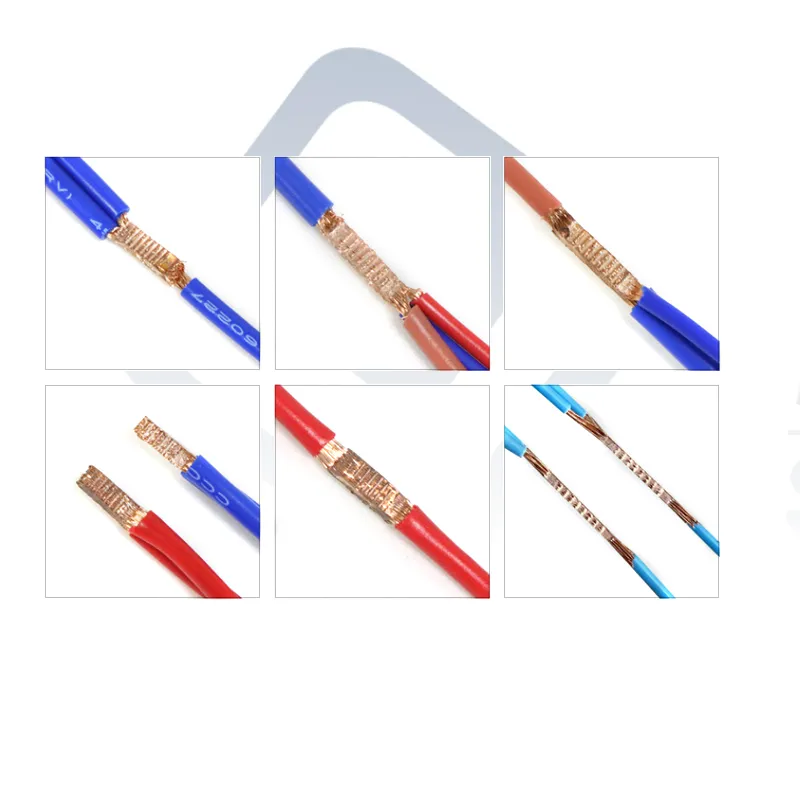

Intelligent 20 kHz Ultrasonic Splicing System

Powered by a 3000 W digital generator with automatic frequency tracking and dynamic amplitude compensation, ensuring superior metallurgical bonding, exceptional conductivity, and high pull-out force.

03


High-Output Efficiency & Smart Control

Delivers high-speed processing up to 2,000 pcs/h with real-time digital parameter monitoring and intelligent safety protection, maintaining maximum uptime and low maintenance overhead.

04
