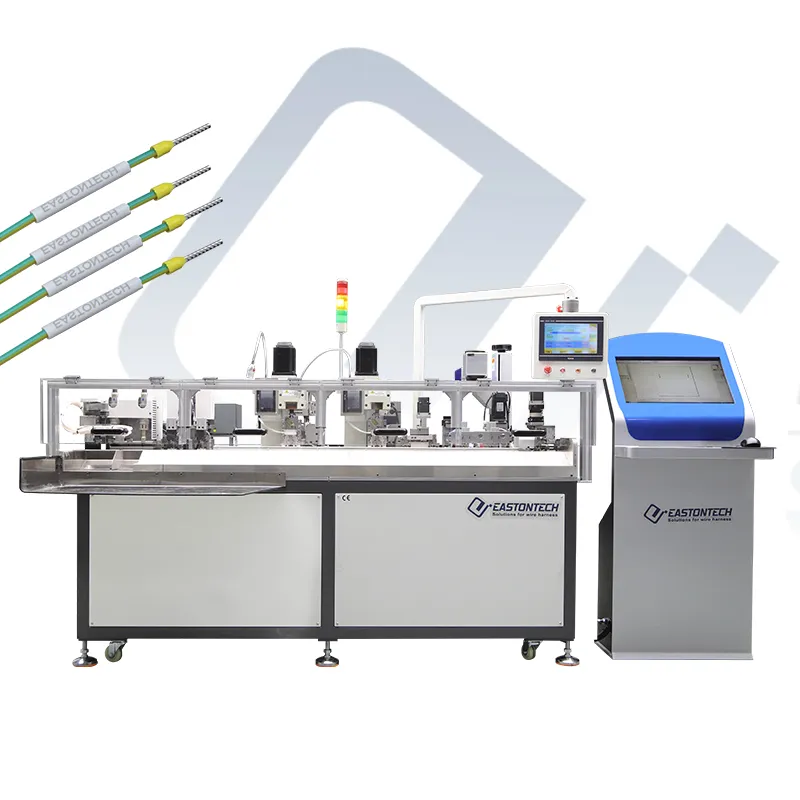

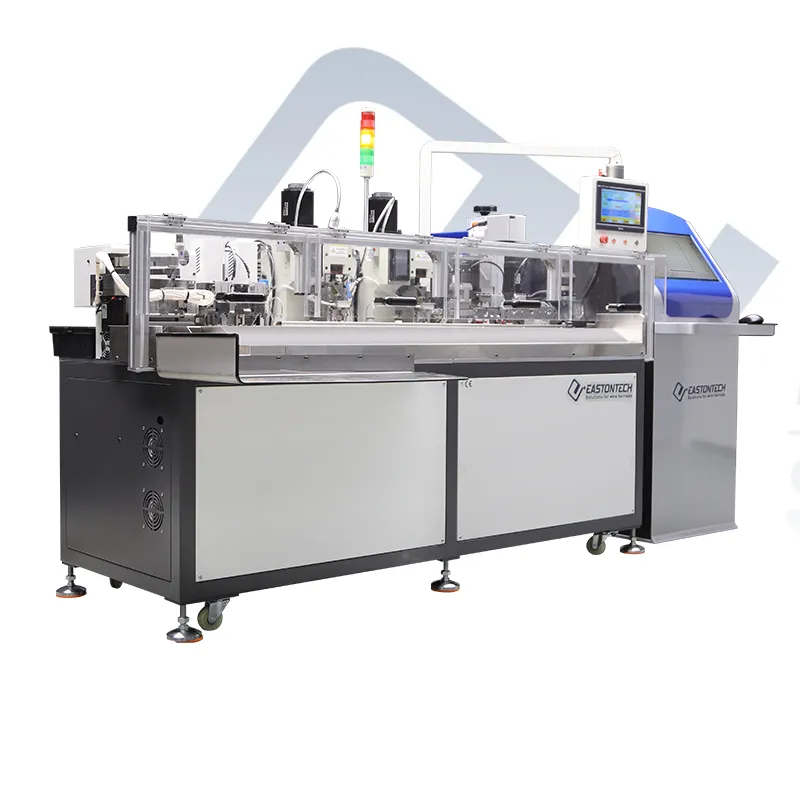

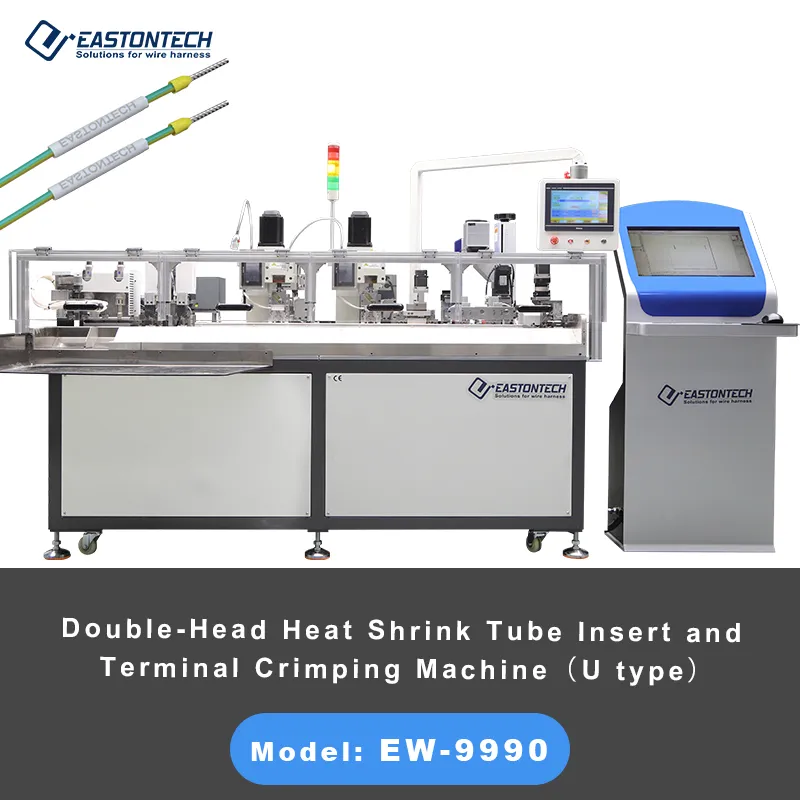

EW-9990 Double-Head Heat Shrink Tube Insertion & Terminal Crimping Machine

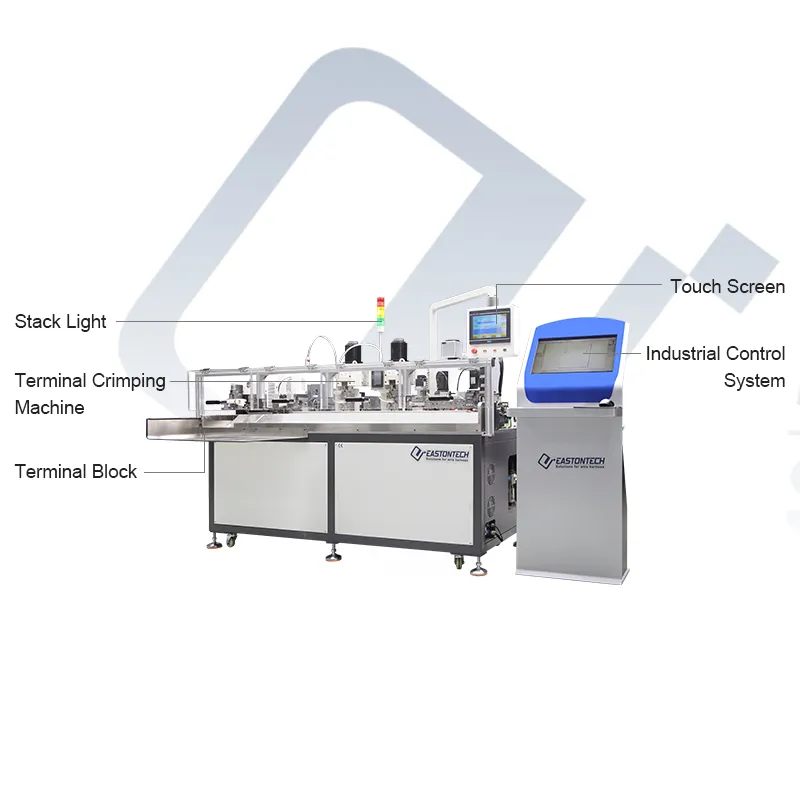

Built with an innovative U-shaped production layout, the EW-9990 maximizes workshop floor efficiency while delivering an exceptional throughput of up to 2,000 pieces per hour, significantly lowering your per-unit processing time and labor costs.

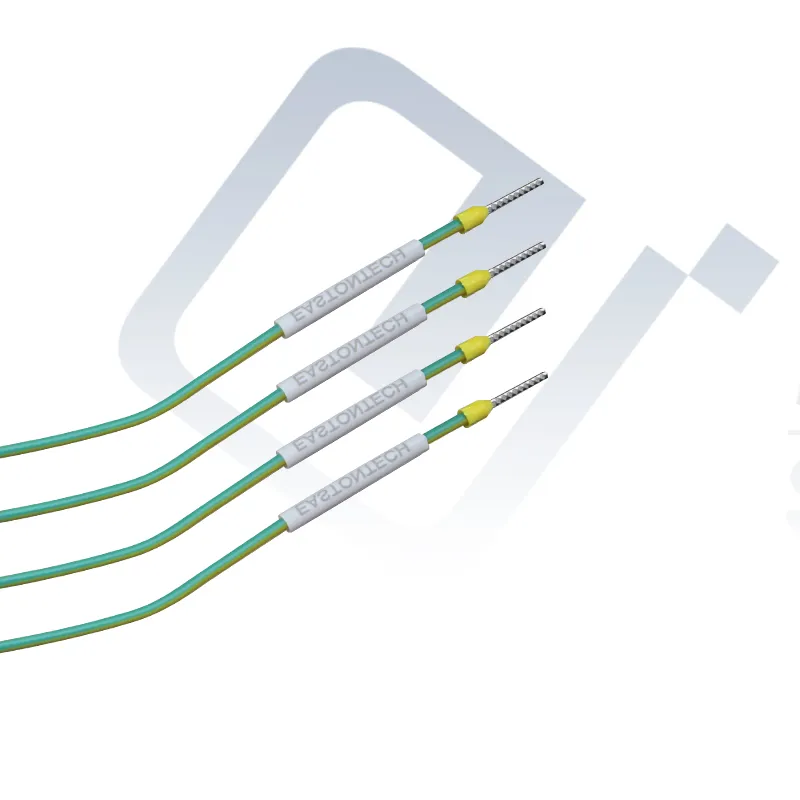

Engineered for versatile long-wire processing, the system is capable of simultaneous marker tube insertion on both ends of the wire. It accommodates a wide specification range, supporting heat shrink tubes from 9mm to 25mm in length and 2.5mm to 6.0mm in diameter.

To maintain strict zero-defect manufacturing standards, the machine is equipped with an intelligent monitoring system. It features real-time wire knot detection, missing wire alerts, and terminal crimp quality sensors, ensuring every finished harness meets industry tolerances before exiting the line.

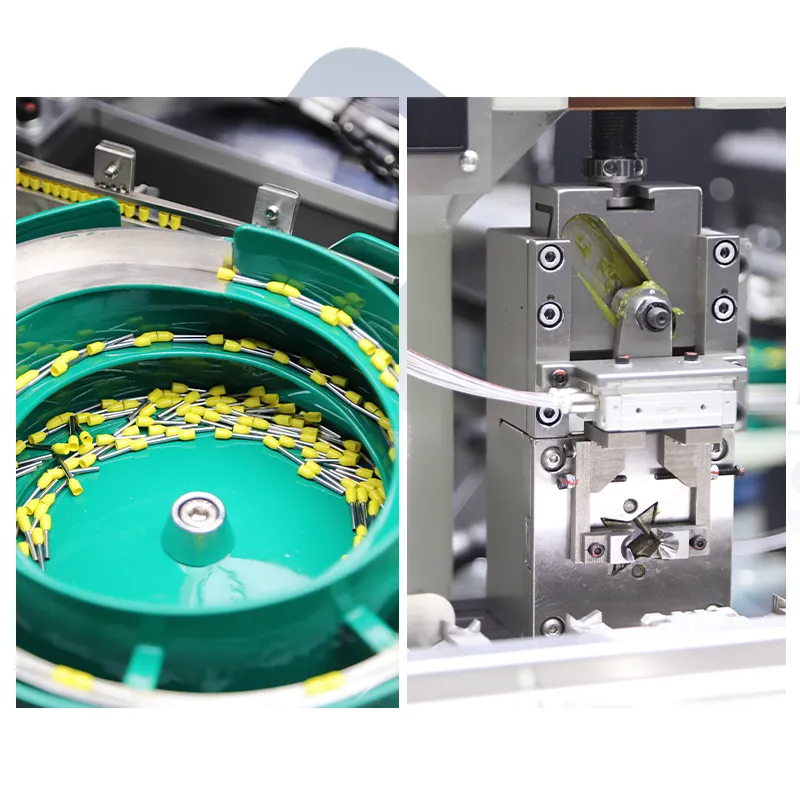

Driven by high-performance Mitsubishi servo motors and operating on HIWIN linear guides alongside TBI precision screws, the mechanical architecture guarantees exact positioning. Combined with premium pneumatic components, it ensures minimized vibration and long-term durability under high-speed industrial environments.
