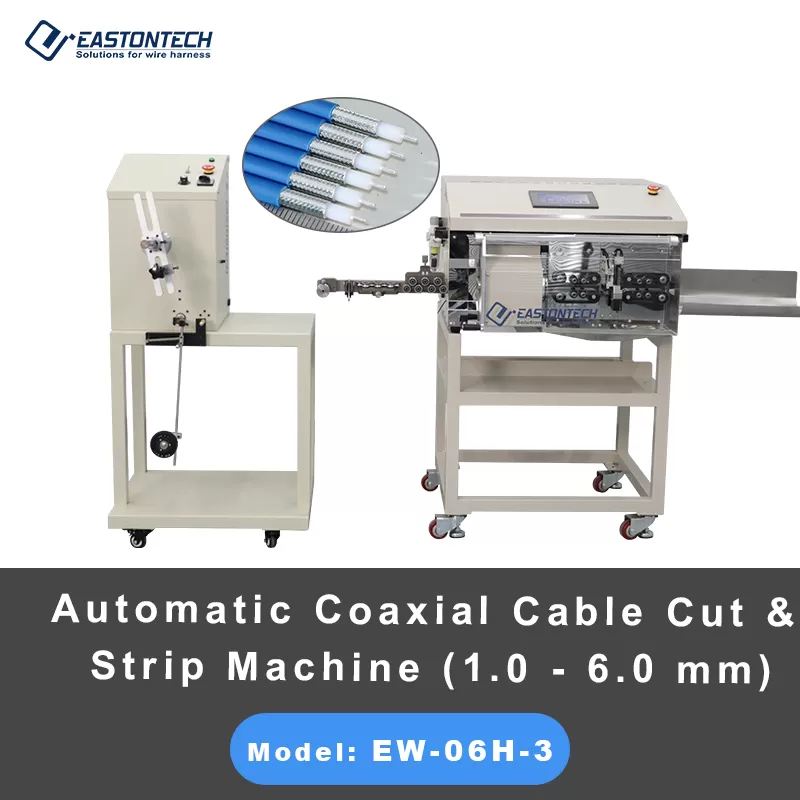

Model | EW-06H-3 |
Cable type | Coaxial cable and single conductor wire |
Cable OD | 1.0 - 6.0 mm (optional blades for max. 8.5 mm) |
Cutting length | 50 - 9999 mm |
Cutting depth increment | 0.01 mm |
Cutting tolerance | < 0.01 * L |
Stripping mode | Rotary blades incision + V blades pull-off |
Max. strip layers | 6 |
Stripping length (side I) | 0 - 45 mm |
Stripping length (side II) | 0 - 100 mm |
Stripping tolerance | < 0.1 mm |
Blades material | Imported tungsten steel and high speed steel |
Display mode | Touch screen (153 * 85 mm) |
Driving mode | By motor and ball screw |
Working temperature | -5 - 45 degree |
Memory capacity | 40 programs |
Productivity | 350 - 900 pcs./h |
Power supply | AC 110, 220 V (50/60 Hz) |
Power | 800 W |
Weight | 120 kg |
Dimension | 790 * 730 * 400 mm |

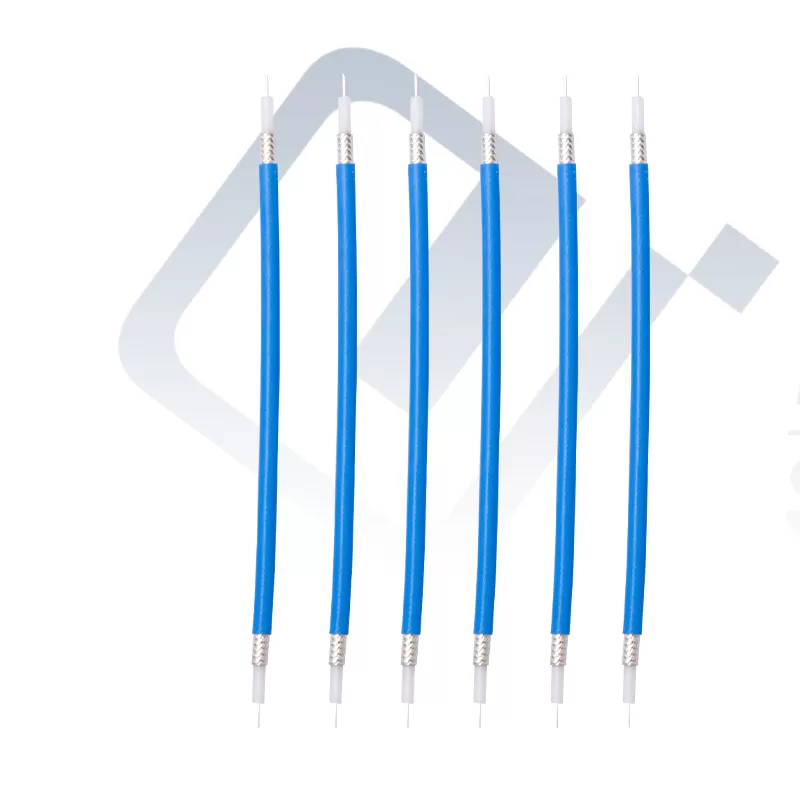

The EW-06H-3 combines high-speed rotary cutting for precise shielding layer incision with specialized V-blades for smooth insulation pull-off. Capable of processing up to 6 layers sequentially, this dual-action mechanism ensures clean, burr-free edges without compromising the integrity of inner conductors or dielectric layers.
Engineered for strict tolerance tracking, the machine features a programmable cutting depth increment of 0.01 mm and maintains an ultimate stripping tolerance of less than 0.1 mm. This exceptional precision prevents conductor scratching and shielding deformation, making it perfectly suited for high-frequency signal transmission requirements.

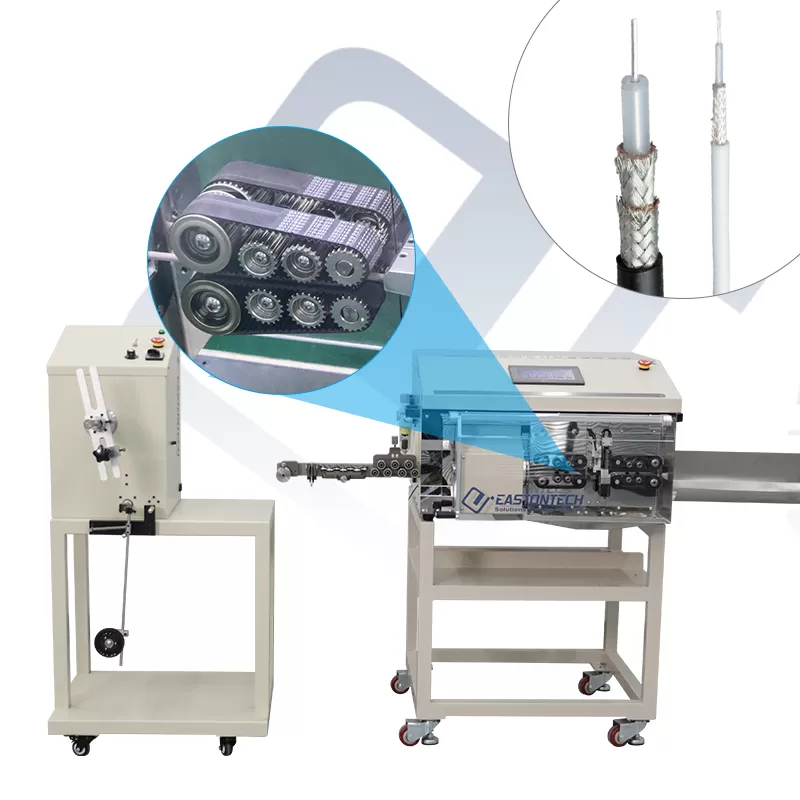

Built on an advanced structural platform, the machine features high-grade imported tungsten steel and high-speed steel (HSS) blades paired with heavy-duty ball screws and precise motor drives. This reinforced mechanical rigidity dramatically dampens vibrations, ensuring consistent processing quality over prolonged, high-intensity production shifts.
Equipped with a vivid, large-format touchscreen display (153 * 85 mm), the system provides an operator-friendly interface for effortless job changes. With built-in memory capacity for up to 40 distinct programs, setup times are reduced to seconds, maximizing throughput and simplifying operation for mixed-batch manufacturing.
