Name: EW-5595 Loose Pin Aviation terminal Crimping Machine
Brand: Wenzhou East World Automation Equipment Co., Ltd.
Availability: InStock

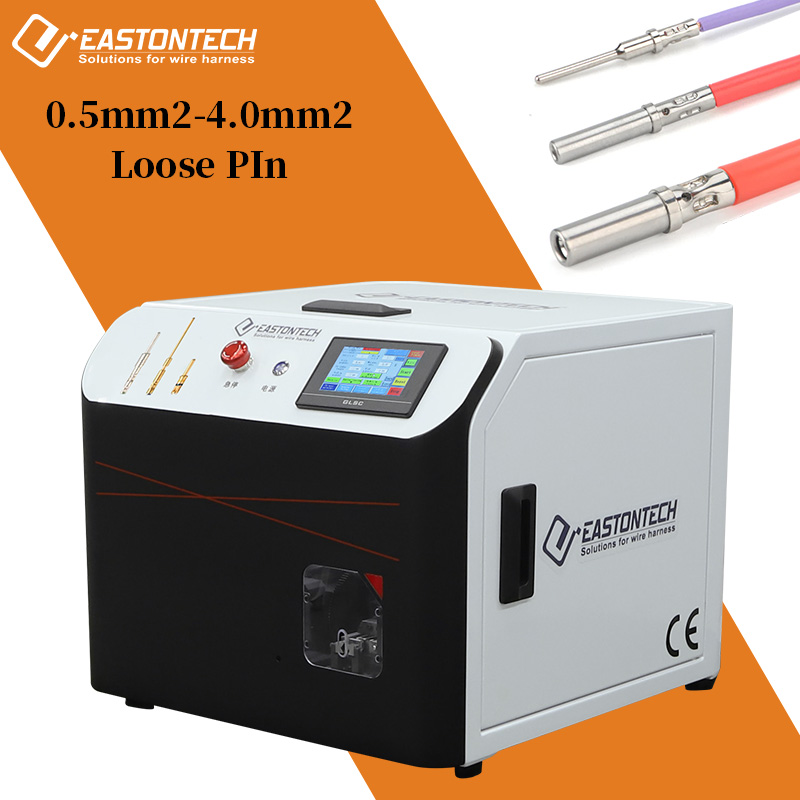

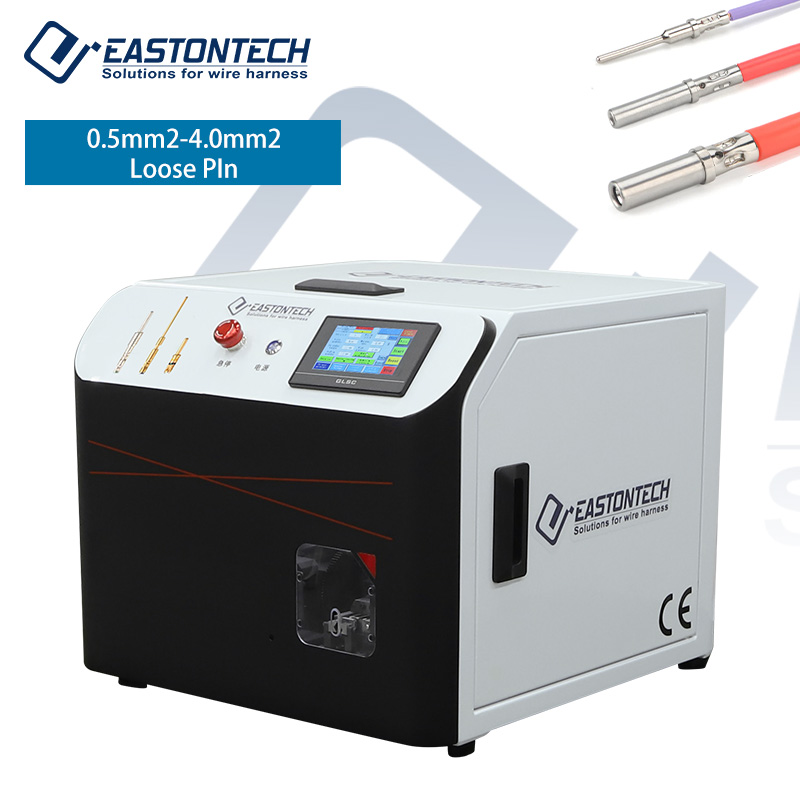

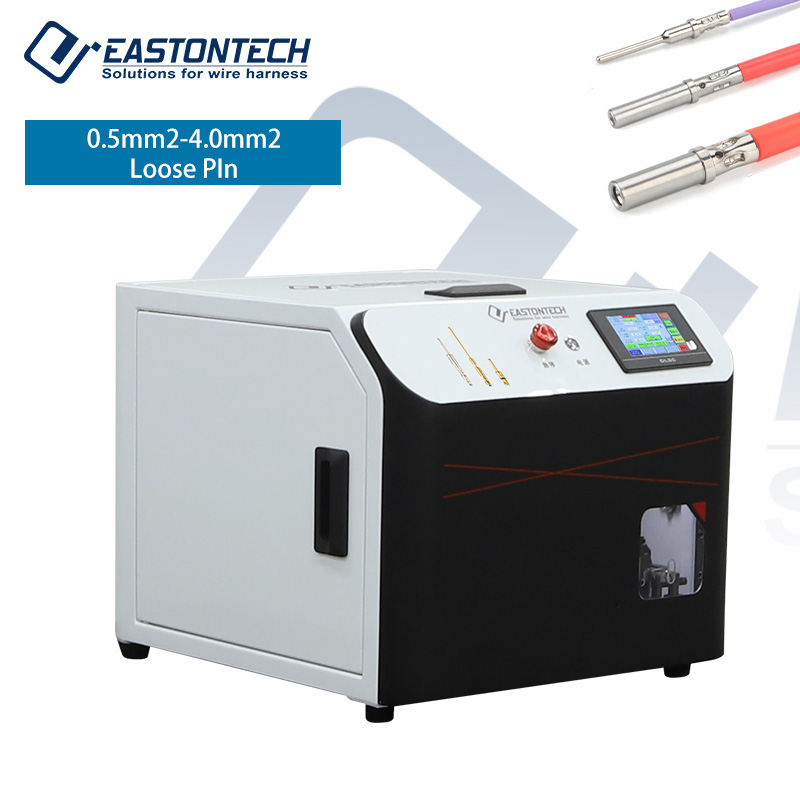

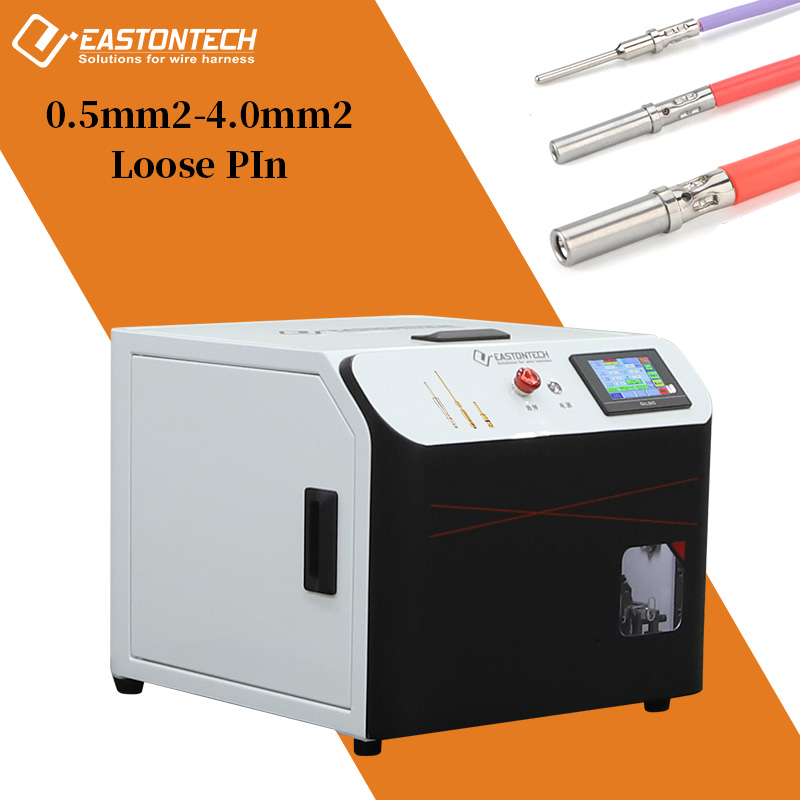

EW-5595 Loose Pin Aviation terminal Crimping Machine

This is a wire stripping and crimping terminal machine. It can work when plugged in. It is suitable for crimping various side feeding terminals. After the wire end is placed in the crimping position, the machine will automatically strip the wire and then crimp it. The process of terminal connection, stripping and crimping terminals can be combined to effectively reduce labor costs, and product consistency can also be improved. With its efficient performance and affordable terminal crimping machine price, this model offers excellent value for businesses seeking to automate their wire processing operations without significant capital investment.



Specifications of EW-5595

Model	EW-5595
Applicable wire Diameter	0.5mm2-4.0mm2
Applicable wire Material	BVR
Processing capacity	1400-1500PCS/H
Stripping range	Shortest sheath stripping Length 35mm
Stripping length	1.0mm-18.0mm
Tangent error	0.1mm-0.15mm
Position error	0.1mm-0.15mm
Power	1000W
Power Supply	Single Phase 200V~240V 50/60Hz
Air Source	0.4~0.6mpa
Body size	L500mmW500mmH430mm
Total weight	50KG
Pedal Start	N/A

Application Range

Materials

Cable

Wire

Single-Conductor Cable

Processing Capabilities
